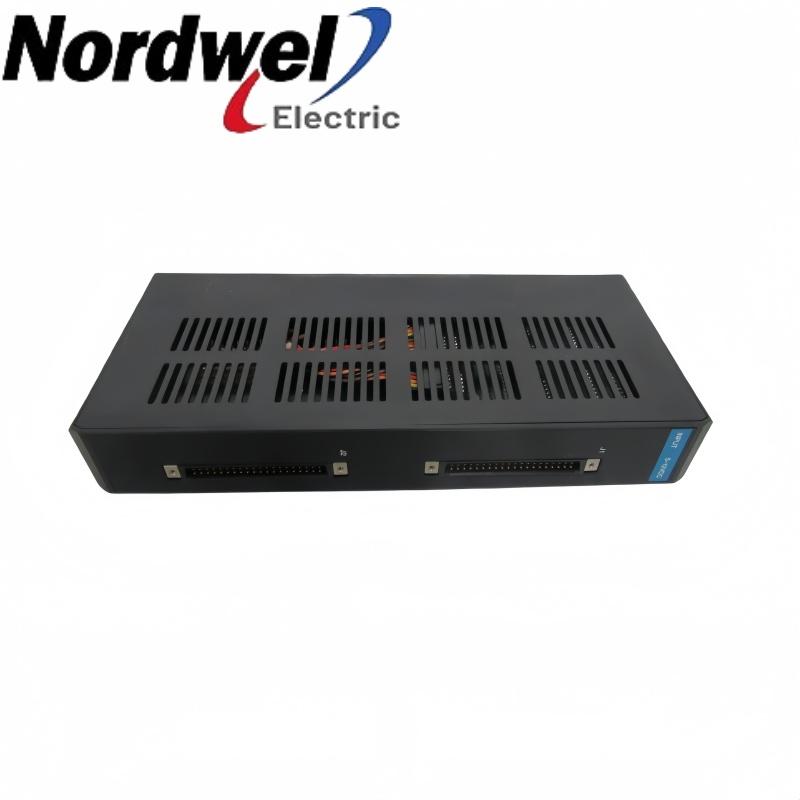

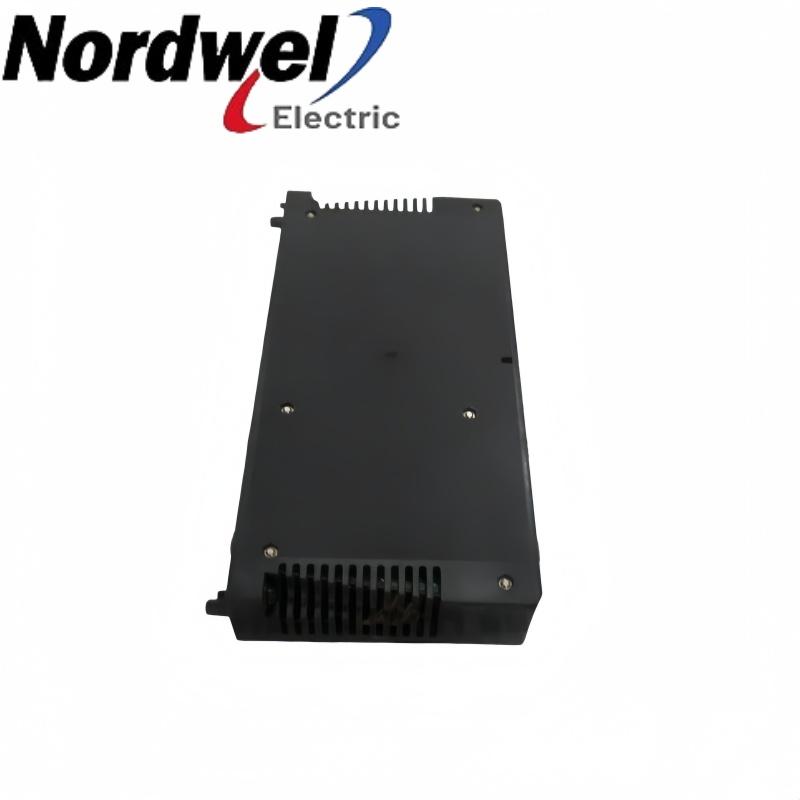

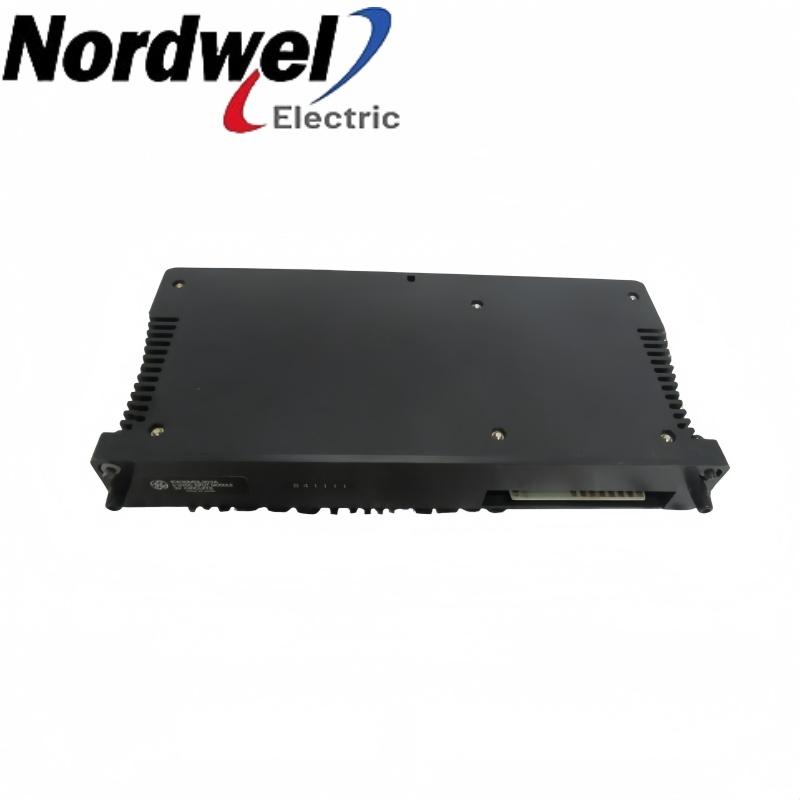

General Electric IC630MDL303 32-circuit 5 to 12 VDC logic input module product views

General Electric IC630MDL303 32-circuit 5 to 12 VDC logic input module

EMAIL SALES

General Electric Series Three

IC630MDL303 — 32-circuit 5 to 12 VDC logic input module

IC630MDL303 is a Series Three 32-circuit 5 to 12 VDC logic input module. Match its installed function, connections and required accessories before planning a controlled replacement.

General ElectricSeries ThreeTTL/CMOS input module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL303 product profile

Product familySeries Three

Exact modelIC630MDL303

Input circuits32

Faceplate connectionsTwo 40-pin connectors

Primary roleAcquires TTL and CMOS logic signals

Revision checkMatch terminal assignment to the actual unit.

Brand:
General Electric
Item NO.:
IC630MDL303
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC630MDL303 configuration inquiry

Get a precise quote for IC630MDL303

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL303 functions and installation

IC630MDL303 is a Series Three 32-circuit 5 to 12 VDC logic input module. Match the actual revision, connection arrangement and intended function before replacement. Electrical details below apply to the A-revision specification; check the supplied hardware revision and terminal arrangement before use.

Installed functionAcquires TTL and CMOS logic signals.

System integrationWorks within the matched Series Three installation and its accepted application.

Connection reviewCheck the actual connector assignment and retained cable or field wiring.

Return to serviceTest the intended signal or communication function under controlled operating conditions.

Installation and selection boundaries

Preserve the complete unit identity and readable revision markings in the replacement record.
Record the installed terminal and cable assignments before removal.
Validate the actual required operating function, not only a power-on indication.

Official product data

IC630MDL303 key specifications

Product family	Series Three
Input circuits	32
Field interface	TTL/CMOS logic input
Sensing supply range	5–12 VDC; use the applicable 5 V or 12 V table
Connectors	Two 40-pin faceplate connectors
ON voltage maximum	0.75 V at 5 V supply; 6.8 V at 12 V supply
OFF voltage minimum	4.25 V at 5 V supply; 12.2 V at 12 V supply
External source current	130 mA max at 5 V; 400 mA max at 12 V
Internal power	5 VDC at 50 mA

GEK-25376, A-revision input/output specification and connection diagrams; match the actual hardware revision.

Pre-order check 01

Installation environment

Plan the safe removal, connection checks and acceptance test for IC630MDL303.

Make the equipment served by IC630MDL303 safe and isolate the affected assembly before disturbing connections.
Mark the actual connector positions, field-circuit identities and retained settings.
Verify the actual supply arrangement, connector condition and connection assignments before energizing.
Check the intended operation with hazardous equipment inhibited before releasing normal service.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

System identity: Series Three installation; preserve the complete current unit code.
Required role: Acquires TTL and CMOS logic signals.
Mating hardware: Match the existing connector, cable or terminal arrangement before reuse.
Configuration record: Keep the actual wiring, circuit assignment and operational settings.
Acceptance boundary: Confirm the required operating behavior before returning the machine to service.

Confirm complete identity, actual connections, installed configuration and the required supply scope before energizing the assembly.
