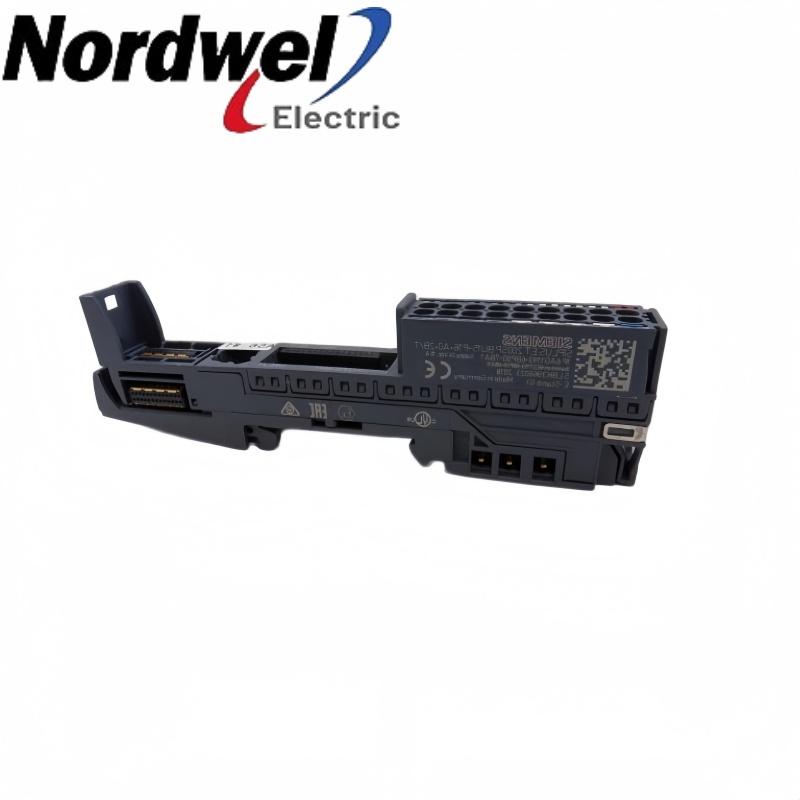

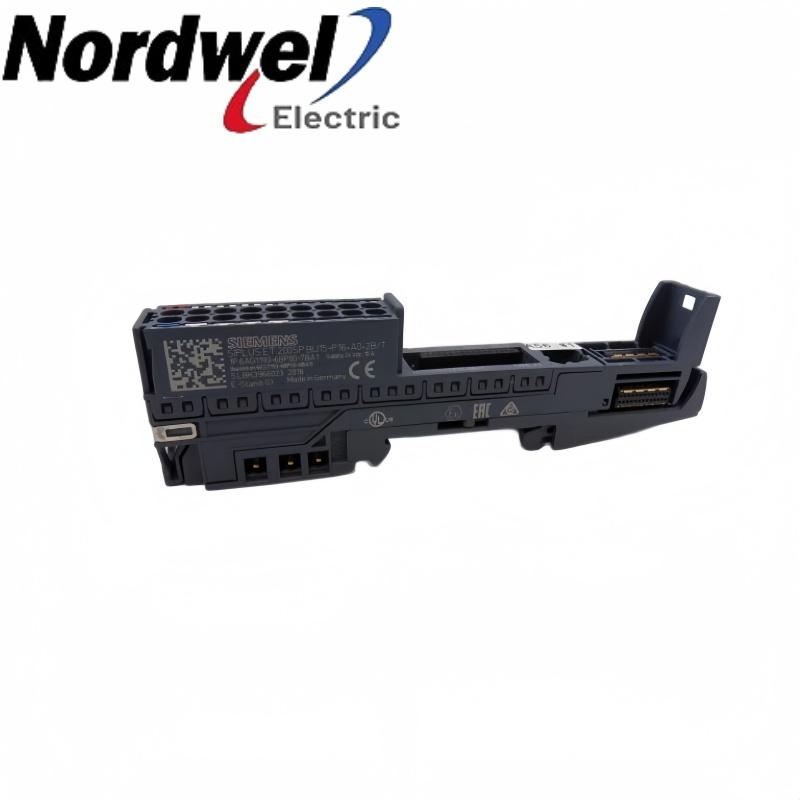

Siemens 6ES7193-6BP00-0BA1 A1 temperature-sensing push-in BaseUnit product views

Siemens 6ES7193-6BP00-0BA1 A1 temperature-sensing push-in BaseUnit

EMAIL SALES

Siemens ET 200SP

6ES7193-6BP00-0BA1 — A1 temperature-sensing push-in BaseUnit

6ES7193-6BP00-0BA1 is a Siemens ET 200SP A1 temperature-sensing push-in BaseUnit. Retain the actual terminal assignment, fitted module and station configuration when selecting a replacement.

SiemensET 200SPA1 temperature-sensing BaseUnit

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP00-0BA1 product profile

Product familyET 200SP

Exact model6ES7193-6BP00-0BA1

BaseUnit classA1

Connection technologyPush-in

Temperature sensingPresent

Potential groupContinued from the left

Brand:
SIEMENS
Item NO.:
6ES7193-6BP00-0BA1
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6ES7193-6BP00-0BA1 configuration inquiry

Get a precise quote for 6ES7193-6BP00-0BA1

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-6BP00-0BA1 functions and installation

The 6ES7193-6BP00-0BA1 component connects i/o with terminal temperature sensing. Match the BaseUnit class and field wiring to the fitted I/O module; retain the actual hardware functional status when applying the specifications.

Connection functionConnects I/O with terminal temperature sensing.

Assembly selectionMatch the I/O module to the required BaseUnit class.

Wiring preservationKeep field labels, polarity and the accepted process-terminal map.

Controlled restorationCheck the restored field circuits before returning the station to process operation.

Installation and selection boundaries

The physical terminal arrangement does not by itself define the electronic I/O function.
Keep the actual functional version in the selection record; older versions can have different permitted applications.
Inspect the mating contacts, connection mechanism and retaining features before energizing the assembly.

Official product data

6ES7193-6BP00-0BA1 key specifications

BaseUnit class	A1; match the required I/O module type
Connection technology	Push-in terminals
Process terminals	16
Temperature sensing	Internal reference junction for compensation
Potential group	Continued from the left; no new group
AUX terminals	No terminal access
Dimensions (W × H × D)	15 × 117 × 35 mm
Current limits (FS10+)	P1/P2 buses: max. 10 A; process terminal: max. 2 A
Operating ambient (FS10+)	Horizontal: −30 to +60°C; vertical: −30 to +50°C

Siemens BaseUnits equipment manual, June 2025, A1 dark-colored section; retain hardware functional-status conditions.

Pre-order check 01

Installation environment

Prepare the wiring, assembly check and controlled acceptance of 6ES7193-6BP00-0BA1.

Make equipment served by 6ES7193-6BP00-0BA1 safe and isolate the affected assembly before changing connections.
Record conductor labels, terminal positions and the fitted I/O or power-module arrangement.
Check BaseUnit class, functional status and potential-group continuity against the station design.
Test the affected field signals with hazardous process outputs inhibited before handover.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Exact identity: 6ES7193-6BP00-0BA1; preserve the complete ordering suffix.
Matched assembly: I/O module requiring BaseUnit class A1.
Connection arrangement: Use the current terminal map and the specified connection technology.
Installation boundary: Check actual functional version, potential group and application voltage.
Acceptance evidence: Confirm correct seating and the required field-circuit response.

Match complete identity, actual assembly, terminal or cable assignments and the required supply scope before energizing the installation.
