Control Techniques SM-PROFIBUS PROFIBUS drive communication option module

Control Techniques Solutions Modules

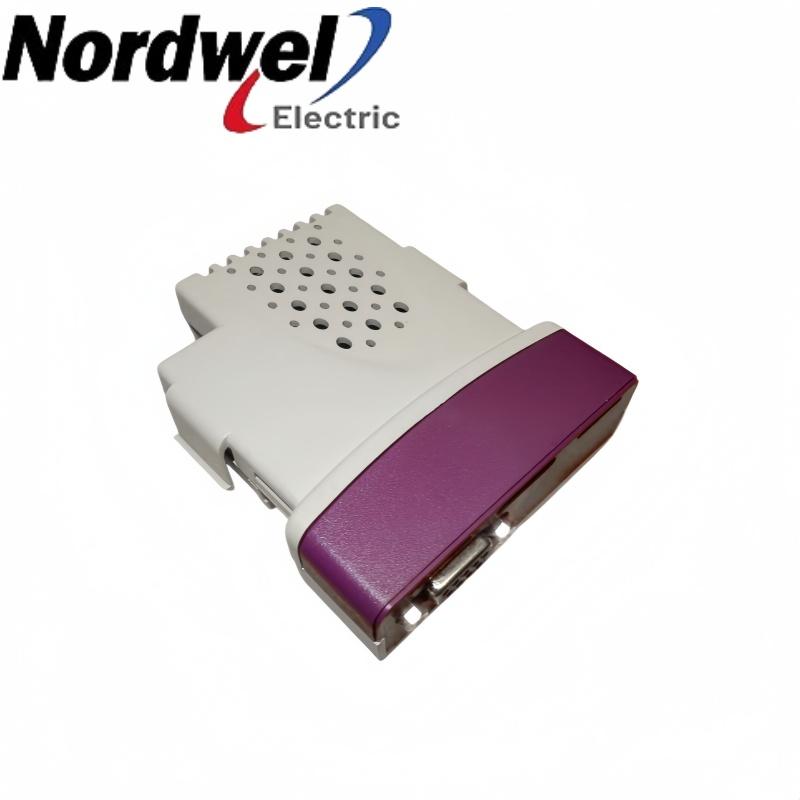

SM-PROFIBUS — PROFIBUS drive communication option module

Connects a compatible drive to a PROFIBUS network. Confirm module firmware, cyclic mapping and network termination for the installed control system.

Control TechniquesSolutions ModulesPROFIBUS drive communication option module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

SM-PROFIBUS product profile

Product familySolutions Modules

Exact modelSM-PROFIBUS

Primary roleConnects a drive to PROFIBUS

Network connector9-way female D-type

Cyclic capacityUp to 32 input and 32 output words

Node addresses1 to 125

Inquiry now

SM-PROFIBUS configuration inquiry

Get a precise quote for SM-PROFIBUS

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Connects a compatible drive to a PROFIBUS network. Confirm module firmware, cyclic mapping and network termination for the installed control system.

Process-data exchangeTransfers mapped cyclic input and output words.

Version matchingCheck the module firmware together with the actual drive software.

Segment designCable length, connector selection and termination depend on network conditions.

Fault responseValidate the control system's response to communication loss.

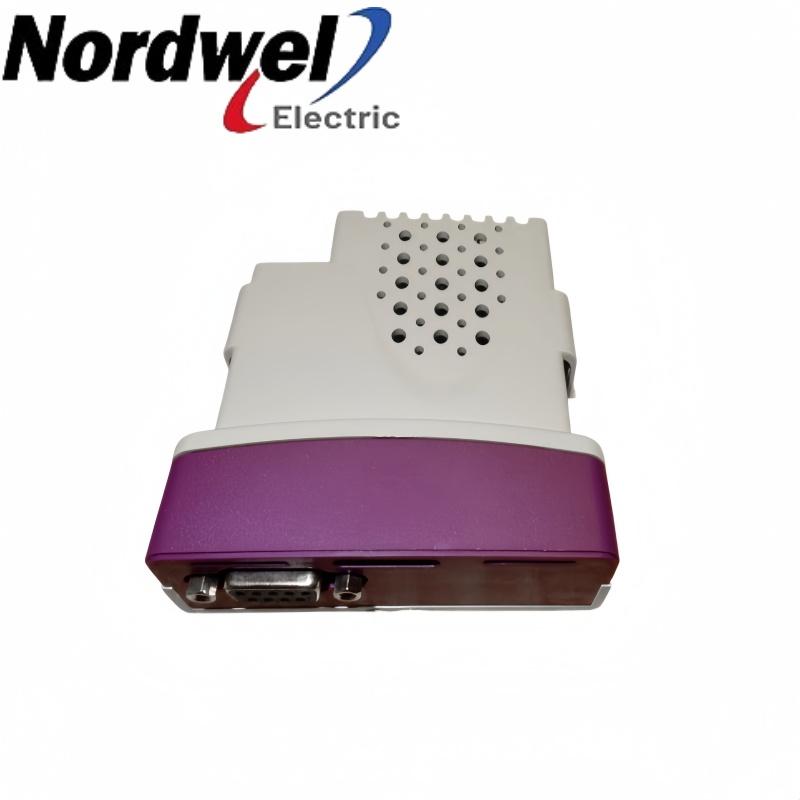

The supplied label identifies DP-V1 hardware; retain this version in the replacement record.
Network connectors and cable must be suitable for the selected PROFIBUS rate.
Define whether connectors, termination hardware and configuration work are part of the supplied scope.

Official product data

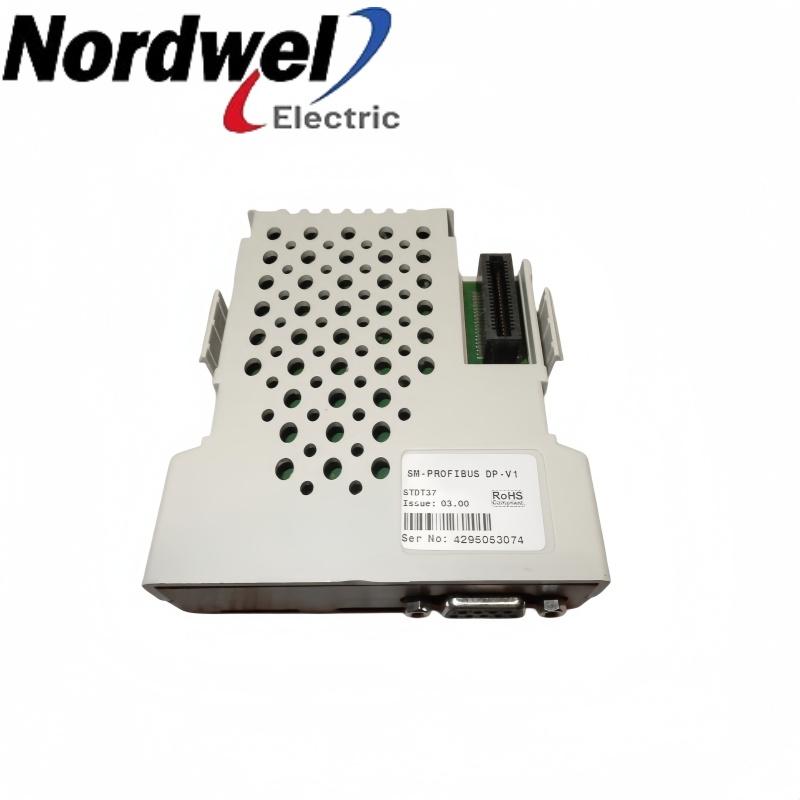

Verified installed module version	DP-V1; supplied photograph shows hardware Issue 03.00
Network interface	9-way female D-type PROFIBUS connector
Supported data rates	9.6 kbit/s to 12 Mbit/s, using the supported discrete rate settings
Cyclic data limit	Up to 32 input words and 32 output words
Drive profile support	PROFIdrive V2 and V4
Node address range	1 to 125
Power source	Host drive internal supply
Network segment loading	Up to 32 devices including repeaters per segment

Control Techniques SM-PROFIBUS DP-V1 User Guide, issue 11, sections 2, 4, 5 and 10; hardware label reviewed.

Pre-order check 01

Commission the fieldbus with the actual host and module software versions.

Isolate the drive supply and discharge stored energy before fitting the option.
Use approved PROFIBUS cable, shield clamps and suitable D-type network connectors.
Terminate both physical ends of each segment and retain termination power.
Set a unique valid node address and check mapping before enabling drive control.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Match the complete item, actual connections and required installed function.

Drive firmware: Check both host firmware and the installed DP-V1 module software version.
Physical network: Match connector pin assignment, shielding and the supported segment length.
Cyclic configuration: Align master configuration with the selected input/output word format.
Parameter access: Check acyclic services and profile support required by the application.
Loss of communication: Verify the configured network-loss response without exposing the machine to unintended motion.

Record successful cyclic exchange and the tested network-loss response before releasing drive operation.
