ABB ACS510-01-046A-4 22 kW wall-mounted variable-speed drive

Products

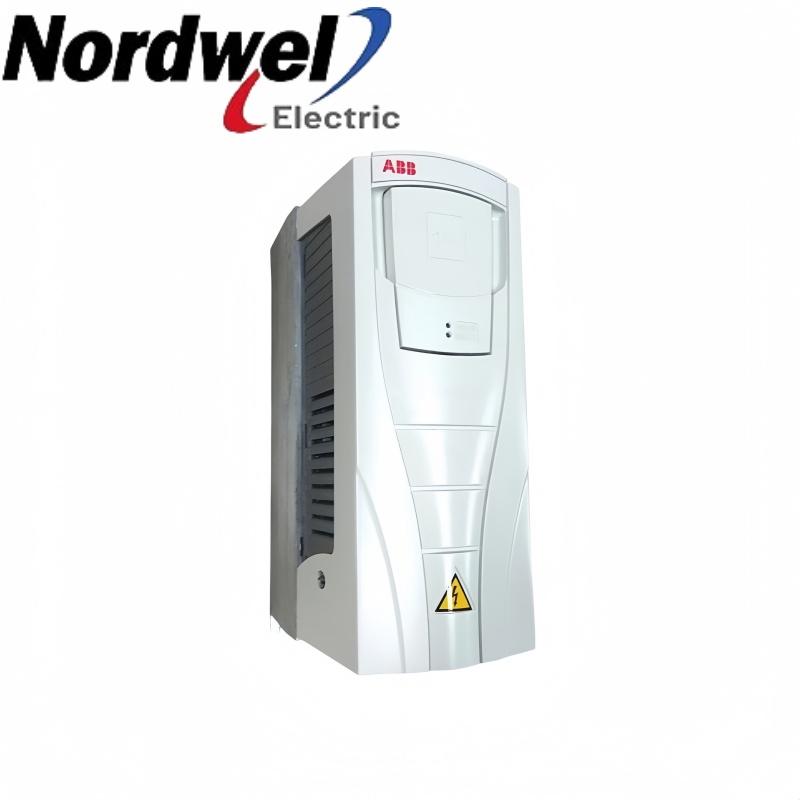

ABB ACS510-01-046A-4 22 kW wall-mounted variable-speed drive product views

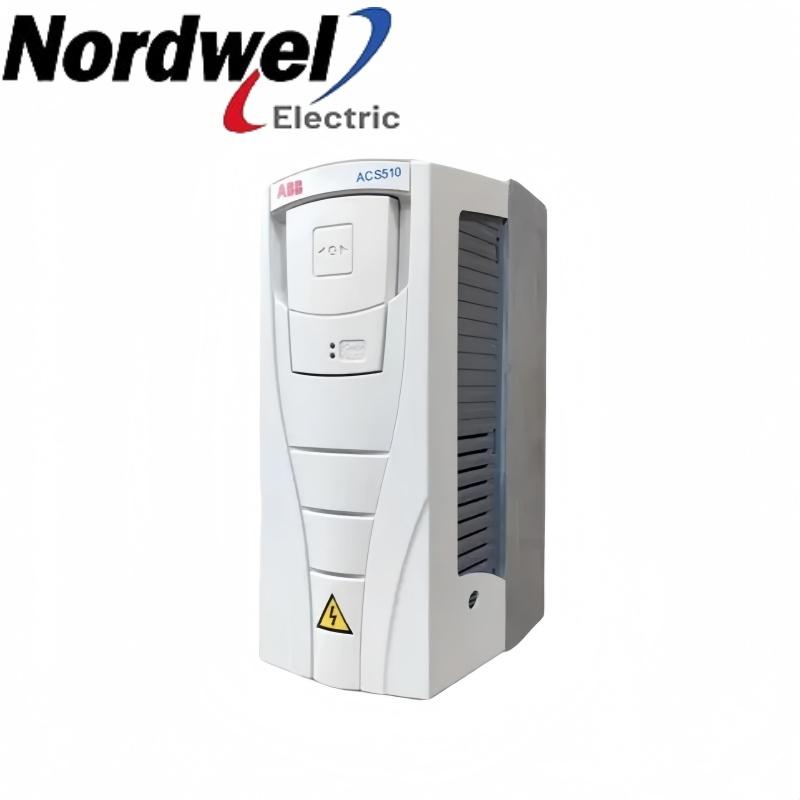

ABB ACS510-01-046A-4 22 kW wall-mounted variable-speed drive product views

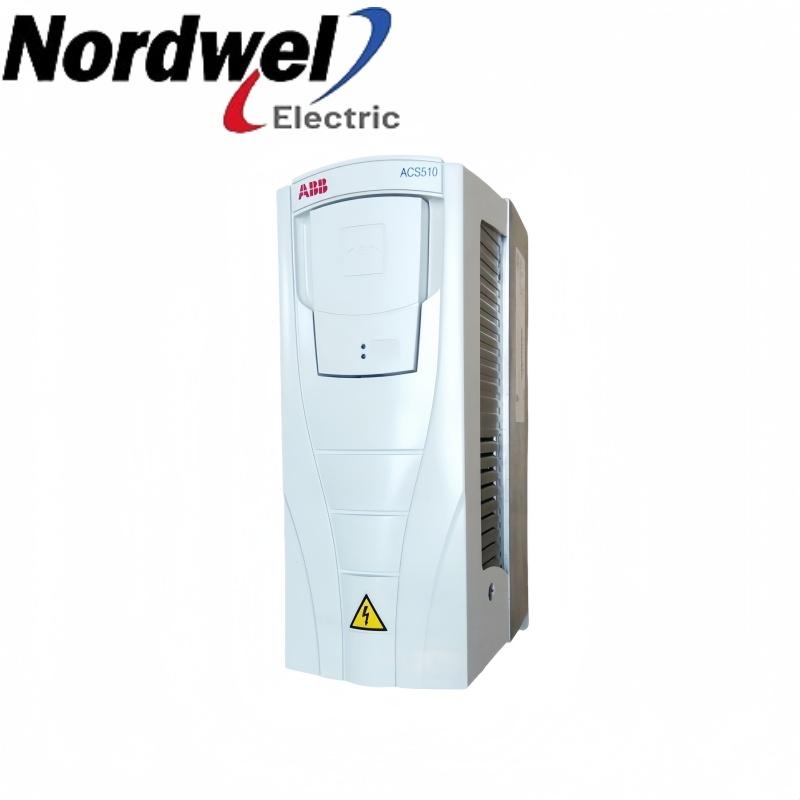

ABB ACS510-01-046A-4 22 kW wall-mounted variable-speed drive product views

ABB ACS510-01-046A-4 22 kW wall-mounted variable-speed drive

EMAIL SALES
ABB ACS510
ACS510-01-046A-4 — wall-mounted variable-speed drive

ACS510-01-046A-4 is an ABB ACS510 wall-mounted drive for normal pump and fan duty. Its published ratings are 46 A continuous output and 22 kW typical motor power at 400 V.

ABBACS510Wall-mounted AC drive
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
ACS510-01-046A-4 product profile
Product familyACS510
Exact modelACS510-01-046A-4
Typical motor power22 kW at 400 V, normal use
Continuous output current46 A RMS
Frame sizeR3
Basic protectionIP21

  • Brand:

    ABB

  • Item NO.:

    ACS510-01-046A-4

  • Part Number:

  • Weight:

  • Dimensions:

  • Manufacture Year:

  • Place of Origin:

  • Certification:

  • Description:

Inquiry now
ACS510-01-046A-4 configuration inquiry

Get a precise quote for ACS510-01-046A-4

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

ACS510-01-046A-4 functions and installation

The ACS510-01-046A-4 operates from a three-phase 380–480 VAC supply and uses the R3 frame with an IP21 basic enclosure. ABB lists 46 A continuous output and 22 kW typical motor power at 400 V for normal use. Embedded Modbus over RS485 supports integration with an appropriately configured control system. Selection must account for the motor nameplate, actual duty, cooling conditions and any required derating rather than relying on power alone.

Motor speed regulationControls the speed of a suitably selected motor in normal pump and fan applications.
Process controlSupports a commissioned process-control arrangement using correctly scaled references and feedback.
Network integrationEmbedded Modbus over RS485 requires matching network settings and suitable wiring.
Installation planningR3 cooling, cable routing and protective earthing must be accommodated before commissioning.

Installation and selection boundaries

  • 22 kW is the typical motor-power figure at 400 V for normal use; 46 A is the continuous output-current rating.
  • The R3 cooling figures are 667 W heat dissipation and 134 m³/h airflow; keep the specified cooling space available.
  • The basic IP21 enclosure and three-phase supply rating must be matched to the actual installation environment and electrical supply.
Official product data

ACS510-01-046A-4 key specifications

Supply voltage Three-phase 380–480 VAC
Typical motor power 22 kW at 400 V, normal use
Continuous output current 46 A RMS
Frame size R3
Basic enclosure protection IP21
Input frequency 48–63 Hz
Heat dissipation 667 W
Cooling airflow 134 m³/h
Embedded communication Modbus over RS485

Source: ABB ACS510 technical catalogue, 3ABD00017601 Rev D, ratings and technical-data tables; ABB ACS510-01 User’s Manual, Rev D.

Pre-order check 01

Installation environment

Plan the mounting, supply and motor connections for ACS510-01-046A-4 before an authorized commissioning trial.

  • Mount in the permitted orientation and maintain 200 mm free cooling space above and below the drive.
  • Verify the three-phase supply, protective earthing and motor-circuit connections before energizing.
  • Separate input, motor and control wiring as required for electrical safety and EMC performance.
  • Commission with the actual motor nameplate data, selected command source and process interlocks checked.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Electrical supply
Three-phase 380–480 VAC, 48–63 Hz; confirm the actual site supply.
Motor and load
Assess motor nameplate current and normal-duty load against the 46 A continuous output rating.
Thermal environment
Allow for 667 W heat dissipation, 134 m³/h airflow and derating where operating conditions require it.
Control integration
Match I/O signal configuration, command sources and embedded RS485 Modbus settings to the control system.
Braking arrangement
The R3 frame requires an appropriately selected external arrangement when resistor braking is needed.
Use the complete ACS510-01-046A-4 ordering code together with the connected motor, process duty and accepted commissioning configuration when planning supply or replacement.
Recommended model families

More ABB models

ABBABB ACS510-01-09A4-4ABB ACS510-01-012A-4ABB ACS510-01-017A-4

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB ACS355-03E-31A0-4ABB PM5132-T-ETHABB PM5112-R-ETH

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB PM5072-T-ETHABB PM5072-R-ETHABB IM60

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB SDCS-UCM-1-COAT 3ADT220090R0008ABB IIMKM02AABB DO525

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

Bently NevadaBently Nevada 330103-02-04-10-02-CNBently Nevada 330103-02-08-10-02-CNBently Nevada 330905-00-25-05-02-CN

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330903-00-07-10-01-CNBently Nevada 330903-00-07-10-01-00Bently Nevada 330876-03-10-00-00

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330906-02-12-10-02-05Bently Nevada 330902-00-95-05-02-05Bently Nevada 330876-01-50-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330851-01-000-020-10-00-00Bently Nevada 330879-03-00Bently Nevada 330851-02-000-040-10-00-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 330180-X1-05 MOD 145004-75Bently Nevada 330851-02-000-080-90-01-05Bently Nevada 24701-28-05-XX-014-04-XX MOD 323933-40-02

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently NevadaBently Nevada 24701-28-05-XX-025-04-XX MOD 323933-30-02Bently Nevada 129716-XXX-040-15 MOD 166797-0133Bently Nevada 24701-28-05-XX-104-03-XX MOD 323933-00-02

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-5BF00-0BA0Siemens 6ES7144-5KD00-0BA0Siemens 6ES7144-4PF00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7144-4JF00-0AB0Siemens 6ES7144-4FF01-0AB0Siemens 6ES7144-1JB31-0XB0

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

ACS510-01-046A-4 Order Guide

Check the complete requested item against the actual installation before ordering.
1Confirm identityRequest the complete ACS510-01-046A-4 code and the required supplied scope.
2Check motor and dutyCompare motor current and load with the 46 A rating and normal-duty application.
3Review site supplyConfirm the three-phase voltage and frequency before selection.
4Plan mounting and coolingAllow R3 mounting space and 667 W heat removal with the required cooling clearance.
5Record control requirementsCapture terminal assignments, reference sources and communication settings.
6Arrange acceptance checksAgree the identity, supplied items and controlled commissioning checks before ordering.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
ABBACS355-03E-04A1-4

A separate product reference; verify its own installation and configuration.

Specialist model
ABBACS355-03E-07A3-4

A separate product reference; verify its own installation and configuration.

Specialist model
ABBACS355-03E-08A8-4

A separate product reference; verify its own installation and configuration.

Specialist model
ABBACS355-03E-12A5-4

A separate product reference; verify its own installation and configuration.

Specialist model
ABBACS355-03E-15A6-4

A separate product reference; verify its own installation and configuration.

Specialist model
ABBACS355-03E-23A1-4

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for ACS510-01-046A-4 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

ACS510-01-046A-4 FAQ

What does the normal-duty rating mean for ACS510-01-046A-4?The published ratings are 46 A continuous output and a typical 22 kW motor at 400 V for normal pump and fan use. Evaluate the real load profile and motor current before selection. An application with demanding acceleration or braking is not qualified merely by matching the motor kW.
Can ACS510-01-046A-4 keep its full rating at every installation temperature?No. The published rating basis is 40 °C, and operation under other temperature, altitude or switching-frequency conditions can require derating. Review the actual inlet-air condition and operating settings when establishing permissible load. Do not use cabinet room temperature as a substitute for the drive inlet-air condition.
What information should be captured when ACS510-01-046A-4 reports a fault?Record the fault indication and the operating conditions before clearing it, including the load, reference and point in the operating cycle. This helps distinguish an installation issue from a transient or load-related event. A reset should follow correction of the cause rather than replace diagnosis.
What cooling checks are relevant to an overheating ACS510-01-046A-4?Check for blocked air paths, dirt accumulation, impaired cooling and excessive inlet-air temperature. ABB lists 667 W heat dissipation and 134 m³/h cooling airflow for this R3 unit. Any inspection requiring access to electrical parts must follow isolation, discharge and absence-of-voltage verification procedures.
Why can a short stopping ramp cause difficulty with ACS510-01-046A-4?A rapidly decelerating load can return energy to the drive DC circuit. Review the requested stopping time and load inertia when investigating overvoltage during stopping. If the application needs resistor braking, assess an appropriate external braking arrangement; do not assume that this R3 drive contains a suitable internal brake chopper.
What should be reviewed after an overcurrent event on ACS510-01-046A-4?Check the driven load, acceleration demand, motor configuration and the condition of the motor circuit before restarting. Identify whether the event occurs at startup, during acceleration or in steady operation. Do not repeatedly reset the drive while leaving the underlying mechanical or electrical cause unresolved.
Must the settings be reconsidered if the motor connected to ACS510-01-046A-4 changes?Yes. Compare the replacement motor nameplate with the existing startup data, protection settings and application requirements. A motor with similar power can still have different rated current or voltage. Validate the changed combination before returning the driven equipment to normal service.
When should user parameter sets be changed on ACS510-01-046A-4?Change user parameter sets with the drive stopped, and ensure that the selected set is appropriate for the motor and process. Save the intended user configuration after approved changes. Otherwise a later parameter-set or macro load can restore previously saved values rather than the most recent unsaved adjustment.
How should routine maintenance be planned for ACS510-01-046A-4?Include cooling-air-path and fan-condition checks in the maintenance plan, with the interval adapted to the installation environment. Keep contaminants from restricting airflow. Servicing that exposes internal electrical parts requires qualified personnel and the prescribed power isolation and discharge checks, not just a stopped motor.
What is required before returning ACS510-01-046A-4 to automatic operation after maintenance?Confirm that connections, protective covers, motor data and process safeguards are restored. Check the active command source and reference before an authorized controlled run, then verify the required response. Do not return to automatic service solely because the fault indication has cleared.
