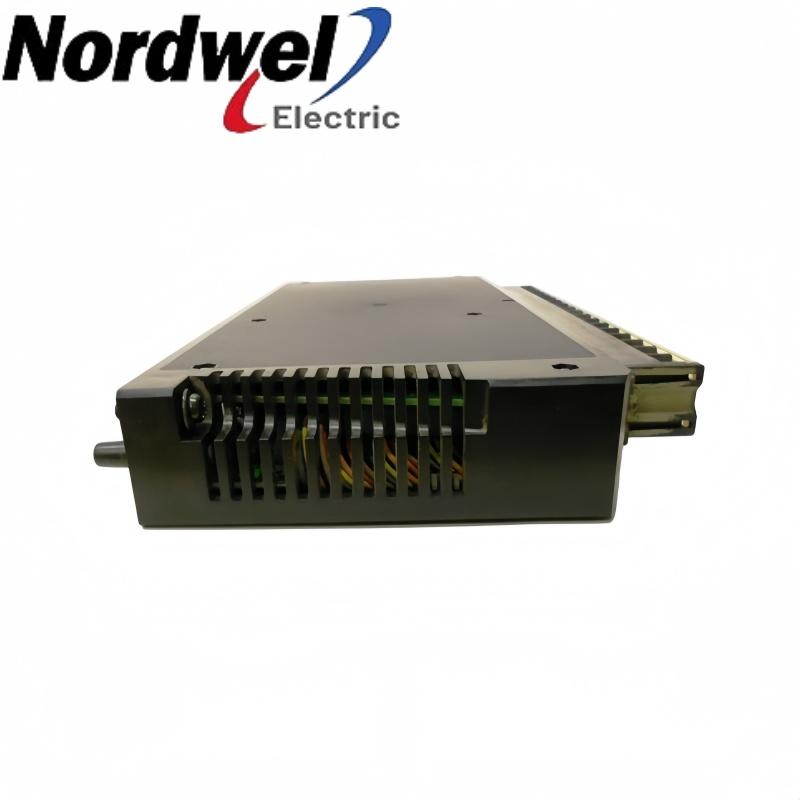

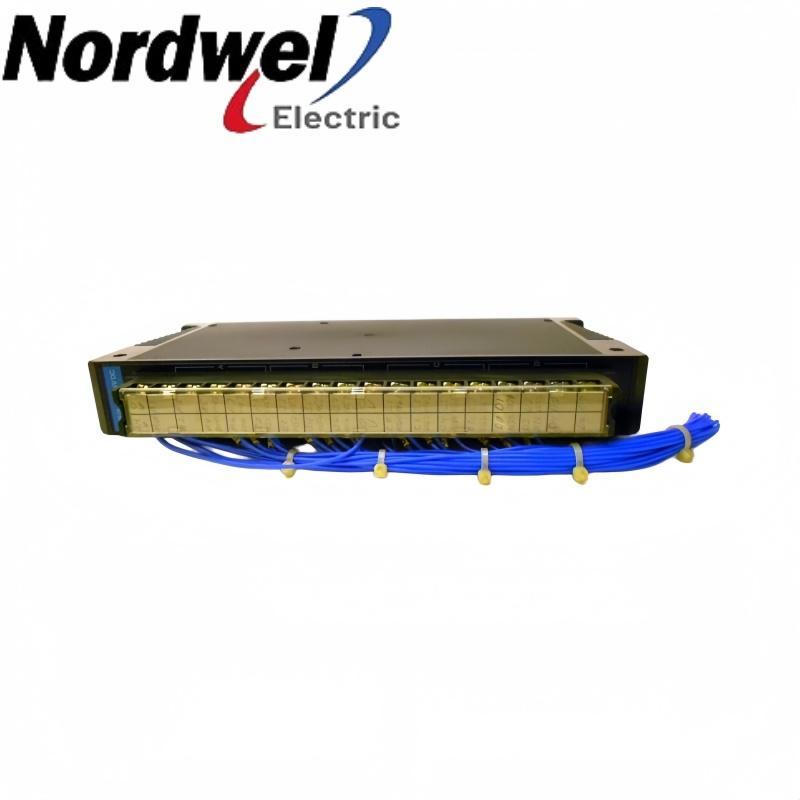

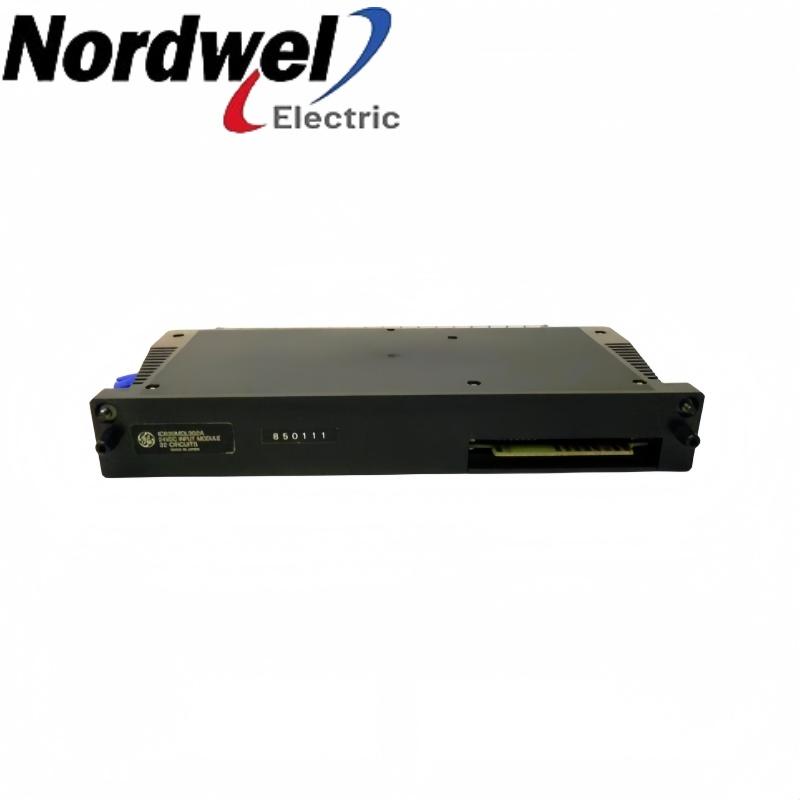

General Electric IC630MDL302 32-circuit 24 VDC input module product views

General Electric IC630MDL302 32-circuit 24 VDC input module

EMAIL SALES

General Electric Series Three

IC630MDL302 — 32-circuit 24 VDC input module

IC630MDL302 is a Series Three 32-circuit 24 VDC input module. Match its installed function, connections and required accessories before planning a controlled replacement.

General ElectricSeries Three32-circuit input module

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL302 product profile

Product familySeries Three

Exact modelIC630MDL302

Input circuits32

Field wiringScrew-terminal connector

Primary roleReceives discrete switch and contact signals

Revision checkMatch terminal assignment to the actual unit.

Brand:
General Electric
Item NO.:
IC630MDL302
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

IC630MDL302 configuration inquiry

Get a precise quote for IC630MDL302

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

IC630MDL302 functions and installation

IC630MDL302 is a Series Three 32-circuit 24 VDC input module. Match the actual revision, connection arrangement and intended function before replacement. Electrical details below apply to the A-revision specification; check the supplied hardware revision and terminal arrangement before use.

Installed functionReceives discrete switch and contact signals.

System integrationWorks within the matched Series Three installation and its accepted application.

Connection reviewCheck the actual connector assignment and retained cable or field wiring.

Return to serviceTest the intended signal or communication function under controlled operating conditions.

Installation and selection boundaries

Preserve the complete unit identity and readable revision markings in the replacement record.
Record the installed terminal and cable assignments before removal.
Validate the actual required operating function, not only a power-on indication.

Official product data

IC630MDL302 key specifications

Product family	Series Three
Input circuits	32
Sensing supply	24 VDC ±10%; less than 3% RMS ripple
ON / OFF voltage	ON below 6.0 VDC; OFF above 18.0 VDC
ON / OFF current	ON at least 5.0 mA; OFF leakage at most 2.0 mA
Input response	3–12 ms ON and OFF delay
Internal electronics	5 VDC at 50 mA
Temperature loading	32 circuits ON through 58°C; 27 at 60°C (A revision)

GEK-25376, A-revision input/output specification and connection diagrams; match the actual hardware revision.

Pre-order check 01

Installation environment

Plan the safe removal, connection checks and acceptance test for IC630MDL302.

Make the equipment served by IC630MDL302 safe and isolate the affected assembly before disturbing connections.
Mark the actual connector positions, field-circuit identities and retained settings.
Verify the actual supply arrangement, connector condition and connection assignments before energizing.
Check the intended operation with hazardous equipment inhibited before releasing normal service.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

System identity: Series Three installation; preserve the complete current unit code.
Required role: Receives discrete switch and contact signals.
Mating hardware: Match the existing connector, cable or terminal arrangement before reuse.
Configuration record: Keep the actual wiring, circuit assignment and operational settings.
Acceptance boundary: Confirm the required operating behavior before returning the machine to service.

Confirm complete identity, actual connections, installed configuration and the required supply scope before energizing the assembly.
