General Electric Series One

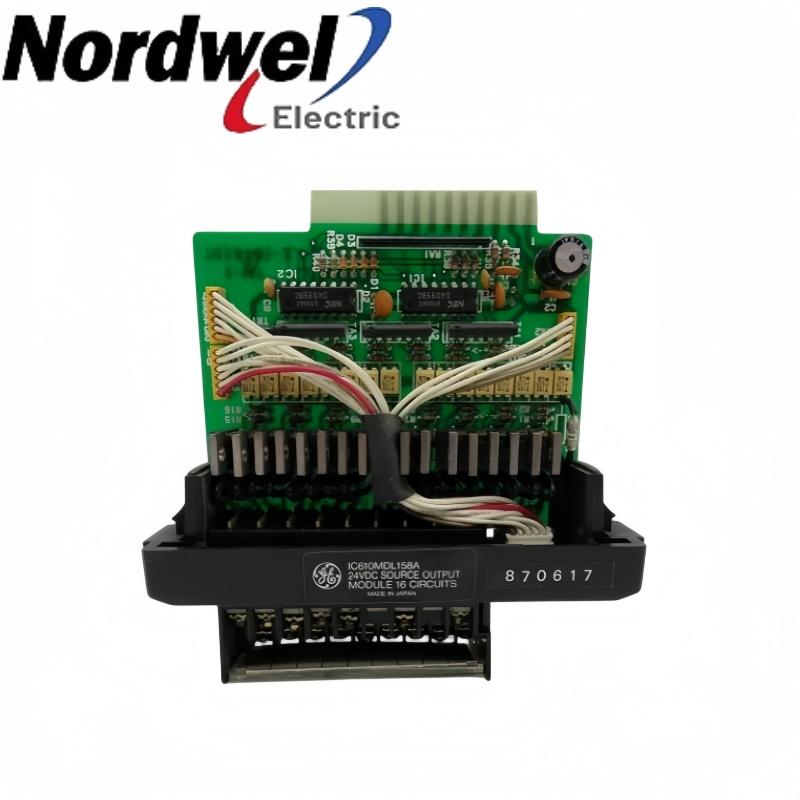

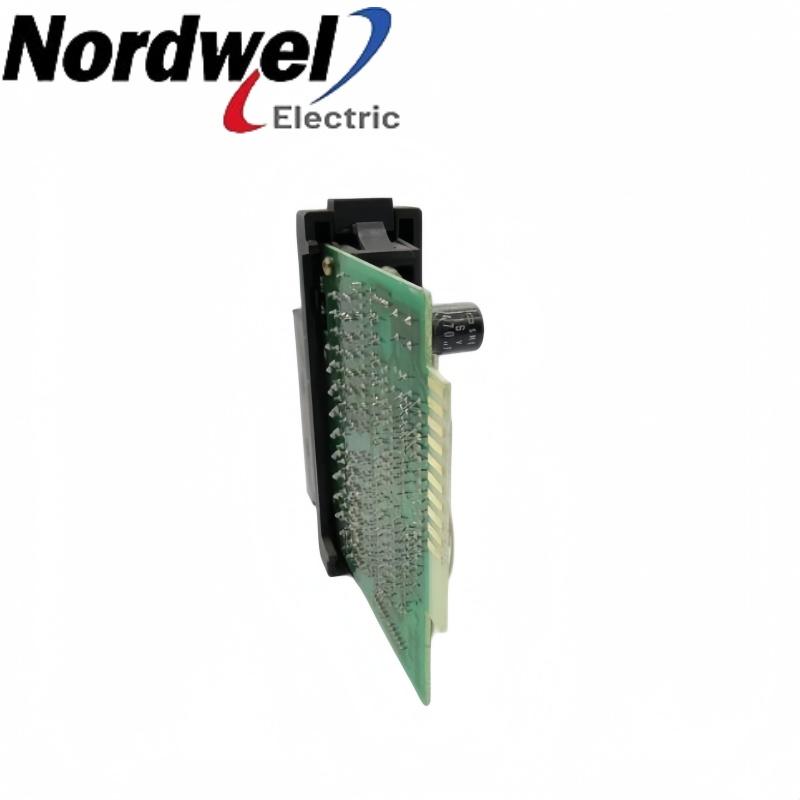

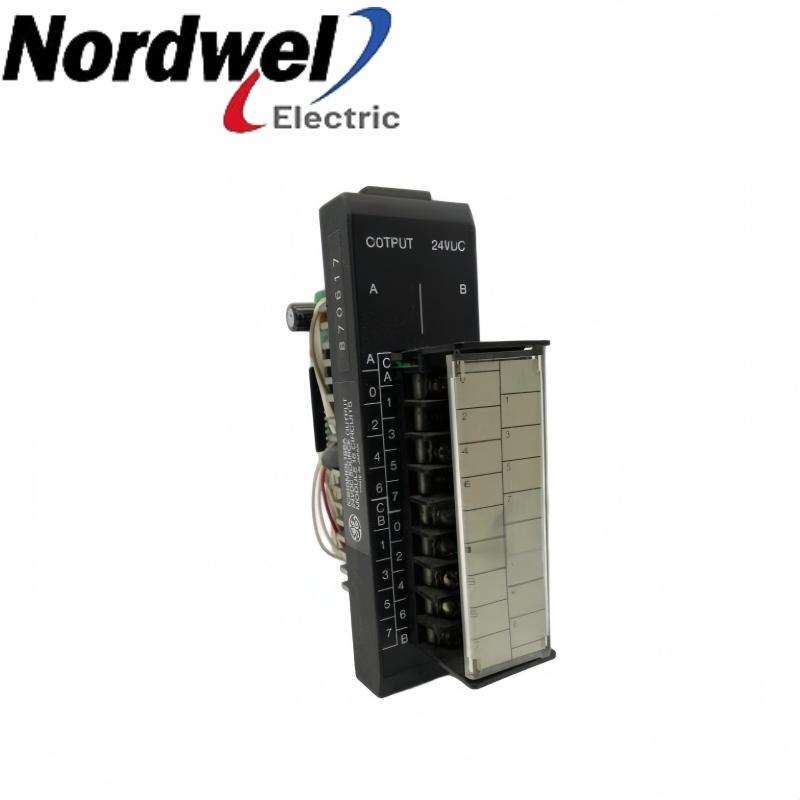

IC610MDL158 — 16-point DC source output module

IC610MDL158 is a sixteen-point source output module for the GE Series One system. Its two eight-point groups use a removable terminal board and require load planning against the temperature and simultaneous-ON derating curve.

General ElectricSeries One16-point DC source output module
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
IC610MDL158 product profile
Product familySeries One
Exact modelIC610MDL158
Output points16
Output typeDC source
Operating voltage5–24 VDC
Terminal boardRemovable screw terminals
  • Brand:

    General Electric
  • Item NO.:

    IC610MDL158
IC610MDL158 configuration inquiry

Get a precise quote for IC610MDL158

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

IC610MDL158 functions and installation

IC610MDL158 is a sixteen-point source output module for the GE Series One system. Its two eight-point groups use a removable terminal board and require load planning against the temperature and simultaneous-ON derating curve. Controls suitably rated discrete DC loads using source output circuits. Each eight-point group has its own 5 A fuse in the output common line.

DC load switchingControls suitably rated discrete DC loads using source output circuits.
Group protectionEach eight-point group has its own 5 A fuse in the output common line.
Thermal planningThe permissible output load depends on ambient temperature and the number of outputs conducting together.
Terminal transferPreserve the group supply, common and point identification when the removable board is handled.

Installation and selection boundaries

  • Output points: 16.
  • Field termination: Removable screw terminal board.
  • A 5 A group fuse does not authorize exceeding the permitted individual or group load.
Official product data

IC610MDL158 key specifications

Output points 16
Output type DC source
Operating voltage 5–24 VDC
Circuit grouping Two groups of eight
Internal fuses Two 5 A fuses, one per group
Output-current condition 0.5 A/point subject to temperature and simultaneous-ON derating
Field termination Removable screw terminal board

Source: GE Series One / Series One Plus User’s Manual, GEK-90842C, original manufacturer manual in the authorized archive.

Pre-order check 01

Installation environment

Prepare the actual mounting and connections for IC610MDL158 before installation.

  • Check the correct rack location, mating connector and mechanical retention before installation.
  • Isolate the affected supply and field circuits before handling the module or its connections.
  • Retain the approved wiring and configuration records; keep low-level signals separated from power wiring.
  • Check the restored installation and perform a controlled functional test before normal operation.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

System
Match the Series One rack and programmed output references.
Load supply
Check the 5–24 VDC operating range and load polarity.
Output topology
Use the required source-output circuit arrangement.
Loading
Apply the original temperature and simultaneous-ON derating conditions.
Protection
A 5 A group fuse does not authorize exceeding the permitted individual or group load.
Accept the replacement only after its complete identity, installation and required operating function have been checked.
Recommended model families

More General Electric models

General ElectricGeneral Electric IC600CB516General Electric IC600CB525General Electric IC600CB536

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600CB537General Electric DS200SHVIG1AGeneral Electric DS200PTCTG1A

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric DS200PLIBG1AGeneral Electric DS200PANAH1AGeneral Electric IC600BF830

Separate product references; inclusion does not establish compatibility or interchangeability.

General ElectricGeneral Electric IC600BF908General Electric IC600BF914General Electric IC600BF915

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

SiemensSiemens 6GK1143-0AA01Siemens 6ES5951-7LB21Siemens 6ES5948-3UA23

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5948-3UA13Siemens 6ES5945-7UA23Siemens 6ES5941-7UA12

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5921-3WB12Siemens 6ES5541-8AA11Siemens 6ES5470-4UC13

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES5465-4UA13Siemens 6ES5464-8MF21Siemens 6ES5464-8ME11

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB V18345-1010261001ABB 3HAC061275-001ABB PM5132-T-ETH

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB PM5112-R-ETHABB PM5072-T-ETHABB PM5072-R-ETH

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB IM60ABB SDCS-UCM-1-COAT 3ADT220090R0008ABB IIMKM02A

Separate product references; inclusion does not establish compatibility or interchangeability.

ABBABB DO525ABB CM576-PNIOABB DI525

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

IC610MDL158 Order Guide

Check the complete requested item against the actual installation before ordering.
1Identify the itemRecord IC610MDL158 and the actual hardware revision before ordering.
2Record the installationMatch the Series One rack and programmed output references.
3Check the mountingCheck the correct rack location, mating connector and mechanical retention before installation.
4Plan connectionsIsolate the affected supply and field circuits before handling the module or its connections.
5Prepare the changeRetain the approved wiring and configuration records; keep low-level signals separated from power wiring.
6Accept the installationCheck the restored installation and perform a controlled functional test before normal operation.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Bently Nevada330854-080-25-05

A separate product reference; verify its own installation and configuration.

Specialist model
Bently Nevada330854-080-24-05

A separate product reference; verify its own installation and configuration.

Specialist model
Bently Nevada330130-070-01-00

A separate product reference; verify its own installation and configuration.

Specialist model
Bently Nevada330130-075-01-00

A separate product reference; verify its own installation and configuration.

Specialist model
Bently Nevada330104-00-08-15-02-00

A separate product reference; verify its own installation and configuration.

Specialist model
Bently Nevada330102-00-12-10-01-05

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for IC610MDL158 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

IC610MDL158 FAQ

How many outputs are provided by IC610MDL158?It provides sixteen DC source output circuits. They are arranged as two groups of eight rather than sixteen isolated independent supply groups.
What DC operating range applies to IC610MDL158?The output circuits are specified for 5–24 VDC operation. Check the actual field supply, load requirements and circuit polarity before applying power.
Can all sixteen IC610MDL158 outputs always carry 0.5 A together?No. The permitted loading depends on ambient temperature and the number of outputs simultaneously ON. Use the original derating curve for the actual duty rather than multiplying a per-point value by sixteen.
What does source output mean for IC610MDL158 wiring?The load circuit must be arranged for the module's source switching topology and correct DC polarity. A circuit designed for a different output topology cannot be transferred without reviewing the wiring.
How are the groups of IC610MDL158 protected?Each group of eight output circuits has a 5 A fuse in its output common line. These fuses do not remove the individual-circuit or thermal loading restrictions.
What type of terminal board does IC610MDL158 use?Field wires connect to screw terminals on a removable terminal board. Identify the board, group supplies and point wiring before removal and preserve the correct alignment when it is restored.
Can the two IC610MDL158 output groups use separate supplies?The manual permits the two groups to be referenced to separate sources, or to a single source as appropriate. The wiring must retain each group's correct common and supply arrangement.
What loads are typical for IC610MDL158?Suitable DC relay coils, solenoid valves, motor-starter circuits and indicator lights are examples. Check their actual steady and switching requirements against the module's ratings and applicable protection arrangement.
What should be checked when just one IC610MDL158 output does not operate its load?Compare the affected point with its programmed output reference, field wiring and actual load supply. Check the load and its connections before concluding that the module is defective, and make the circuit safe before handling conductors or terminals.
What should be done before accepting IC610MDL158 after a fuse event?Make the circuit safe and identify the cause of excess current or wiring failure before restoring the specified protection. Verify the connected loads and controlled output response instead of repeatedly replacing a fuse without diagnosis.
