Payment:
T/TPart Number:
FM161Weight:
0.32kgDimensions:
6.7x10x11.5cmManufacture Year:
The latest yearPlace of Origin:
ChinaCertification:
COODescription:
Module
Specifications

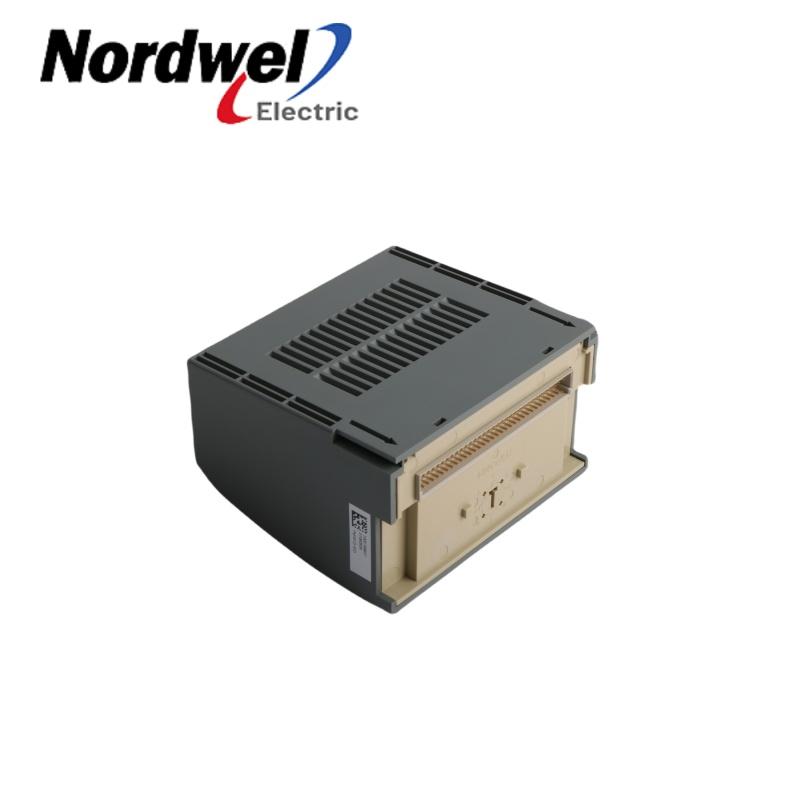

Model: FM161
Brand: Hollysys
Condition: Brand New and Origin
Number of channels: generally 16 switch input channels.
Input signal type: mainly accepts discrete signals such as switches and proximity detectors as input.
Power supply voltage: 20-35V DC.
Current consumption: 45mA when powered by 24V DC and outputting 20mA.
Open circuit voltage: about 8V.
Short circuit current: about 8mA.
Contact <<Jenny Chan>> to Get Quotation
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Response time: ≤10ms.
Driving ability: capable of driving 250V AC, 2A or 30V DC, 2A loads, and the load type is resistive load.
Input and output characteristics: when the switch is closed and the input loop current is greater than 2.1mA, the output relay is energized and the yellow indicator light is on; when the switch is open and the input loop current is less than 1.2mA, the output relay is de-energized and the yellow indicator light is off.
Intuitive status indication: It is equipped with a yellow indicator light, which can intuitively display the input status of each channel, convenient for on-site staff to conduct real-time monitoring and troubleshooting, and reduce maintenance costs and time.
Related Concerns
High reliability: The FM161 module has good stability and reliability, and can operate stably for a long time in an industrial environment, reducing production interruptions caused by equipment failures.
Various input signal types: It can accept various types of switch input signals, such as mechanical switches, proximity switches, etc., to meet the detection needs of different industrial sites.
Good electrical isolation performance: The module adopts effective electrical isolation measures inside, which can prevent mutual interference between input signals and the system, improve the anti-interference ability of the system, and ensure the accuracy and stability of signal transmission.
Payment: T/T
Service: 24 hours for a whole day
Terms of payment: T/T. RMB (CNY) support
Shipping Method: DHL\UPS\Fedex\EMS\Others
|
