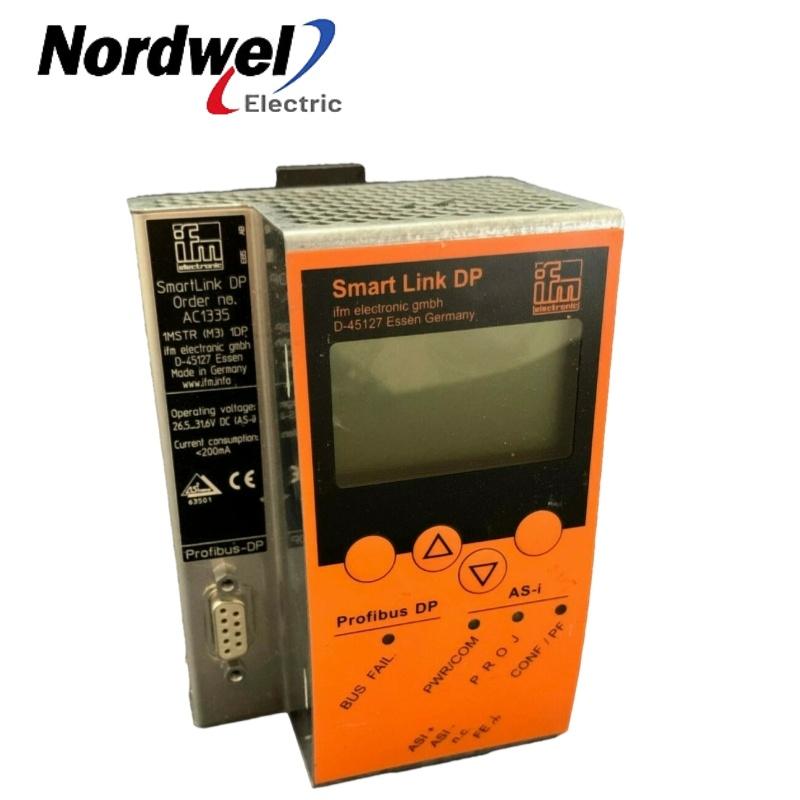

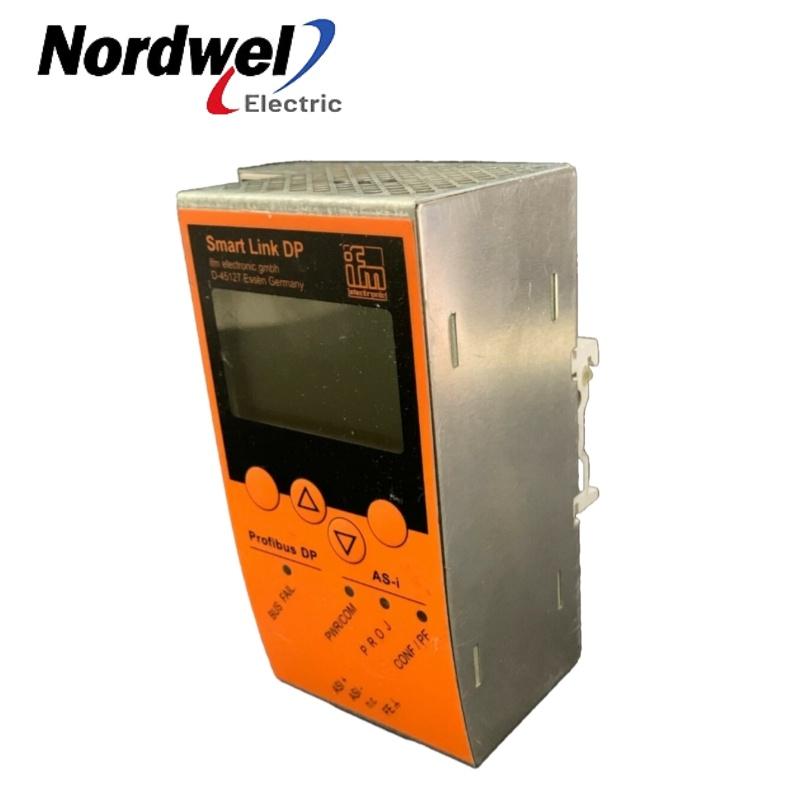

ifm identifies AC1335 as a SmartLink gateway connecting one AS-Interface master to PROFIBUS DP, with a backlit graphic display and DIN-rail mounting.
Brand:
OthersItem NO.:
AC1335Goods Stock:
1Part Number:
AC1335Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:
ifm AC1335 SmartLink gateway: one AS-i master, one PROFIBUS DP slave, supply via AS-i. Confirm the complete nameplate and installed configuration.AC1335 is an ifm SmartLink AS-Interface gateway for coupling one AS-i network to PROFIBUS DP. The official catalogue identifies one integrated AS-i master, one PROFIBUS DP slave, supply via AS-i, and local operation through a graphic display and four function keys.
| Manufacturer |
ifm electronic
|
| Order number |
AC1335
|
| Product family |
SmartLink AS-Interface
|
| Product type |
AS-Interface PROFIBUS DP Gateway
|
| AS-i master |
1 integrated master, version 2.1
|
| Fieldbus role |
1 PROFIBUS DP slave
|
| Operating voltage |
26.5...31.6 V DC via AS-i
|
| Current consumption |
Less than 200 mA from AS-i
|
| Display |
128 × 64 graphic backlit LCD
|
| Controls / indication |
Four function keys and four LEDs
|
| Ambient temperature |
0...60 °C
|

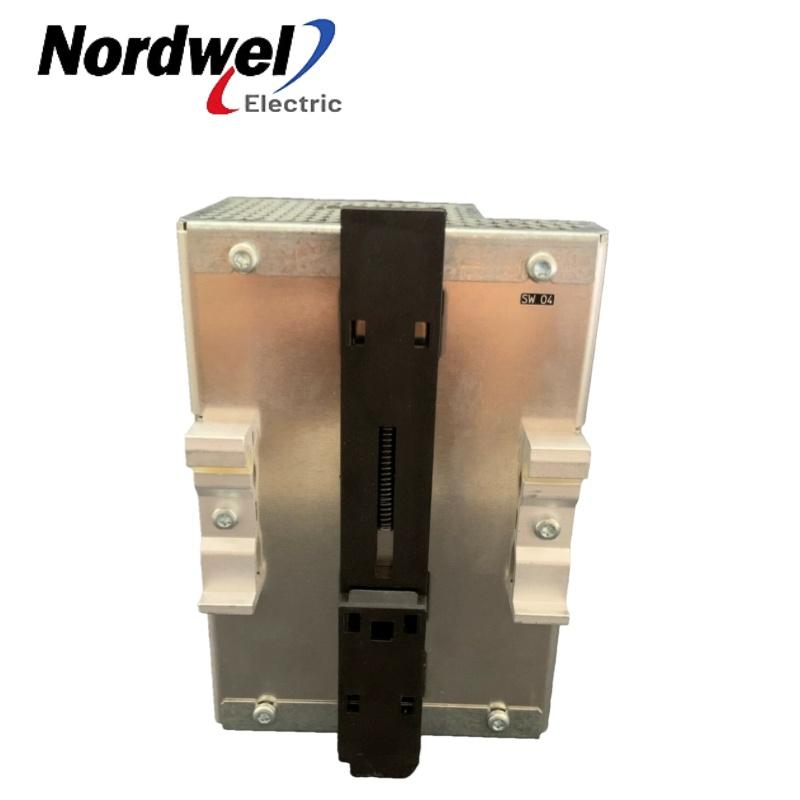

| Mounting / connection |
DIN rail; Combicon screw terminals
|
| Housing |
Aluminium / steel
|
SmartLink AS-i / PROFIBUS DP gateway with one integrated AS-i master.
AS-i / PROFIBUS DP gateway with two AS-i masters and 24 V supply.
AS-Interface PROFIBUS DP gateway reference.
SmartLink DP AS-i / PROFIBUS DP gateway with one master.
AS-i DP gateway with two masters and graphic display.
AS-i PROFIBUS gateway with one AS-i master and Ethernet configuration interface.
AS-i PROFIBUS gateway with two AS-i masters and Ethernet configuration interface.
AS-Interface PROFIBUS DP gateway with PLC functionality.
AS-Interface PROFIBUS DP gateway with PLC functionality.
AS-Interface PROFIBUS DP gateway with PLC functionality.
AS-Interface CANopen gateway with PLC functionality.
AS-i data decoupling module with Combicon connection.
These cross-brand industrial spare references are not direct substitutes for AC1335. Confirm manufacturer, complete model, revision and installed-system compatibility before ordering.
Related models require a fresh engineering check and are not automatic substitutes.
SmartLink AS-i / PROFIBUS DP gateway with one integrated AS-i master.
Officially reviewedAS-i / PROFIBUS DP gateway with two AS-i masters and 24 V supply.
Compatibility check requiredAS-Interface PROFIBUS DP gateway reference.
Compatibility check requiredSmartLink DP AS-i / PROFIBUS DP gateway with one master.
Compatibility check requiredAS-i DP gateway with two masters and graphic display.
Compatibility check requiredAS-i PROFIBUS gateway with one AS-i master and Ethernet configuration interface.
Compatibility check requiredAn ifm SmartLink gateway with one AS-i master and a PROFIBUS DP slave interface.
No. Master count, fieldbus, supply, configuration and wiring must be verified.
Complete nameplate, quantity, installed controller, bus configuration and destination.
