Brand:
SIEMENSPart Number:
6ES7223-1BH32-0XB0 VERSION02Weight:
0.18kgDimensions:
4.4x7.4x9.9cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

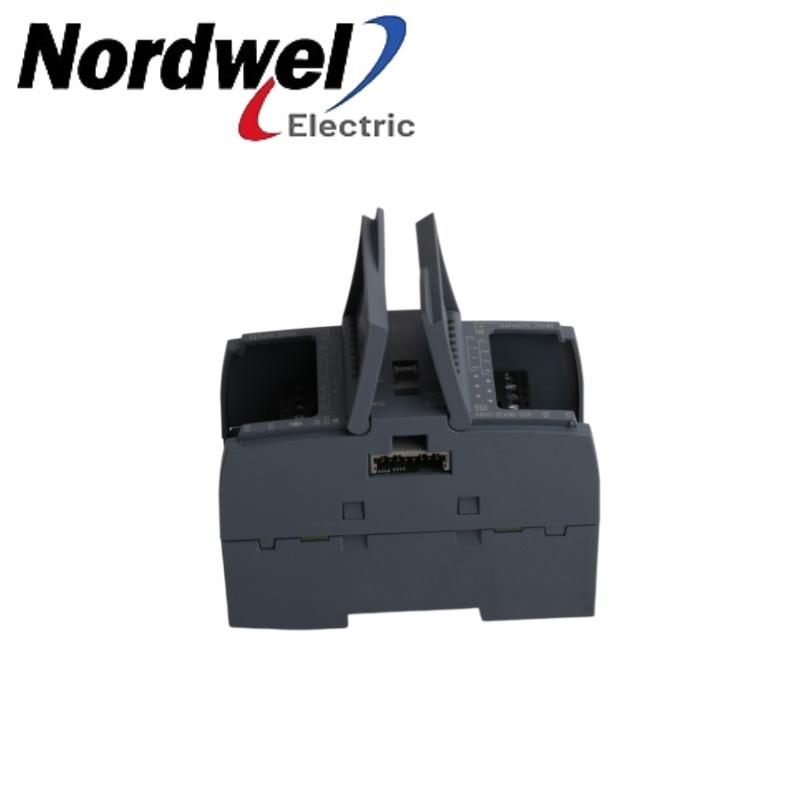

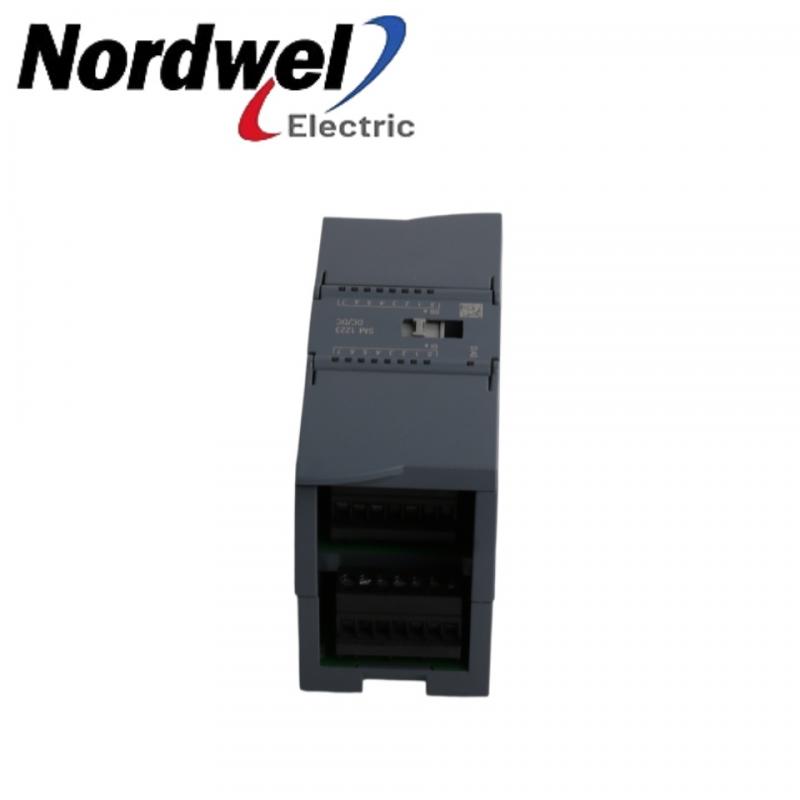

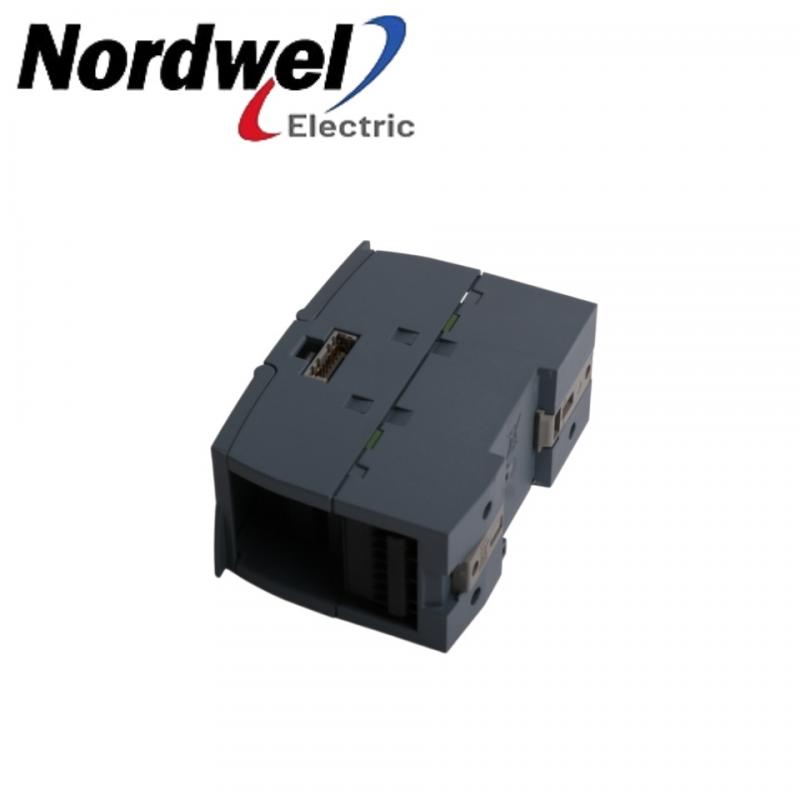

SIEMENS 6ES7223-1BH32-0XB0 VERSION02 8 DI/8 DO 24V DC Transistor I/O Module
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
6ES7223-1BH32-0XB0 VERSION02 |
|
Description |
SIEMENS 6ES7223-1BH32-0XB0 VERSION02 Digital I/O Expansion Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6ES7223-1BH32-0XB0 VERSION02 in stock!!!
Product Description
The 6ES7223-1BH32-0XB0 VERSION02 is a SIMATIC S7-1200 SM 1223 digital I/O module that expands PLC capability with 8 digital inputs and 8 digital transistor outputs. The inputs operate at 24 V DC and support both sink and source wiring, while the transistor outputs are rated at 24 V DC with a maximum output current of 0.5 A per channel, making the module suitable for connecting sensors, switches, solenoid valves, relays, and other field devices. It is designed to work with the SIMATIC S7-1200 controller family, providing reliable signal acquisition and output control for industrial automation systems. The module operates from a 24 V DC supply with an allowable voltage range of 20.4–28.8 V DC, and draws a maximum of 145 mA from the 5 V DC backplane bus. Its compact expansion format allows it to be installed alongside existing S7-1200 CPUs, making it a practical choice for increasing I/O capacity without changing the controller. The 6ES7223-1BH32-0XB0 VERSION02 is commonly used in conveyor systems, packaging equipment, machine tools, material handling systems, and factory automation applications where stable digital input monitoring and fast transistor output switching are required. It integrates directly with the TIA Portal engineering environment, allowing straightforward configuration, diagnostics, and commissioning as part of a complete Siemens automation solution.
Parameter Information
Digital Inputs: 8 × 24 V DC
Digital Outputs: 8 × 24 V DC Transistor
Input Type: Sink/Source
Output Current: 0.5 A per output
Rated Supply Voltage: 24 V DC
Supply Voltage Range: 20.4–28.8 V DC
Backplane Bus Current Consumption: Max. 145 mA (5 V DC)
Number of Input Groups: 2
Input Characteristic: IEC 61131-2 Type 1
Input Voltage for Logic "0": Up to 5 V DC
Input Voltage for Logic "1": From 15 V DC
Typical Input Current (Logic "1"): 4 mA per channel
Typical Power Loss: 2.5 W
FAQ
How many digital inputs does the 6ES7223-1BH32-0XB0 VERSION02 provide?
The 6ES7223-1BH32-0XB0 VERSION02 provides 8 digital inputs (24 V DC).
How many digital outputs are available on the 6ES7223-1BH32-0XB0 VERSION02?
It includes 8 transistor digital outputs, each rated at 0.5 A.
What supply voltage does the 6ES7223-1BH32-0XB0 VERSION02 require?
The module operates at 24 V DC, with an allowable range of 20.4–28.8 V DC.
Application
Packaging Factory: Applied in packaging machines for signal monitoring and equipment control.
Manufacturing Industry: Used in production equipment, conveyor systems, and machine automation.
Material Handling: Controls field devices such as motors, valves, and detection sensors.
Process Automation: Supports PLC expansion for digital signal input and output control.
|
