Part Number:
3700AWeight:
2.12kgDimensions:
2.2cm*40.5cm*40cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

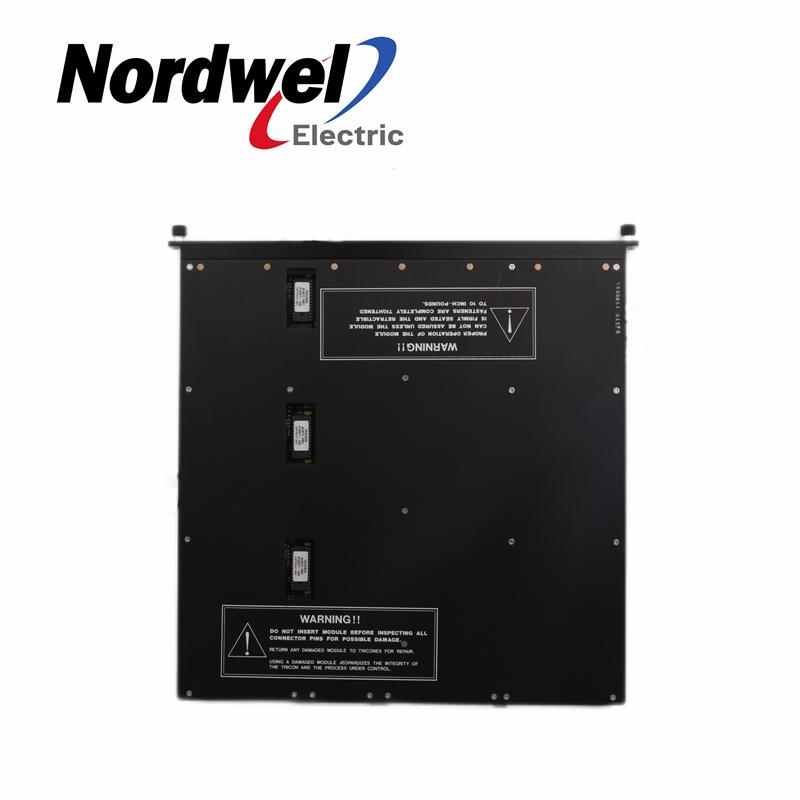

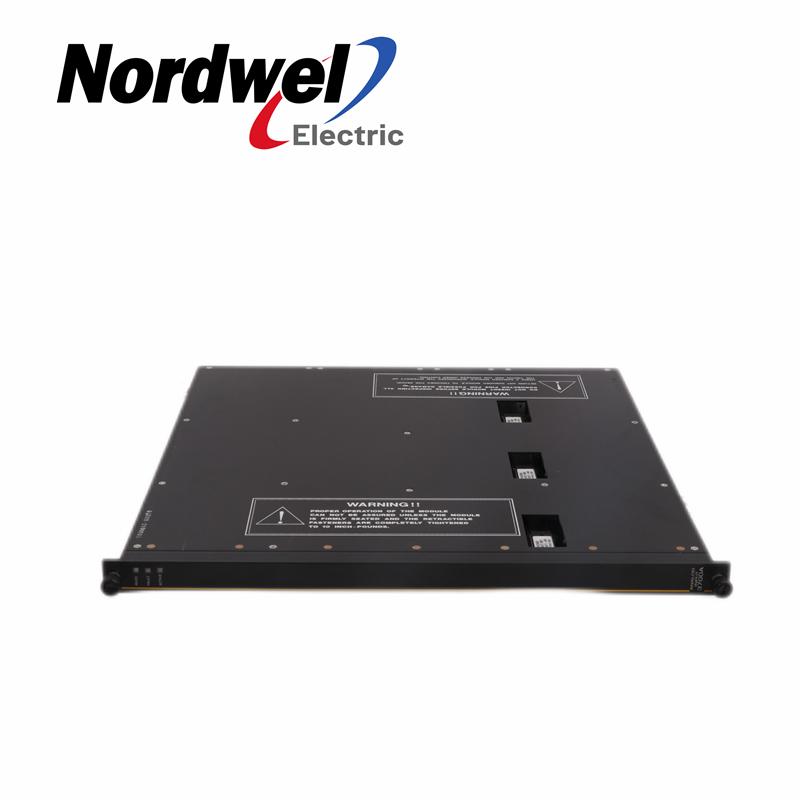

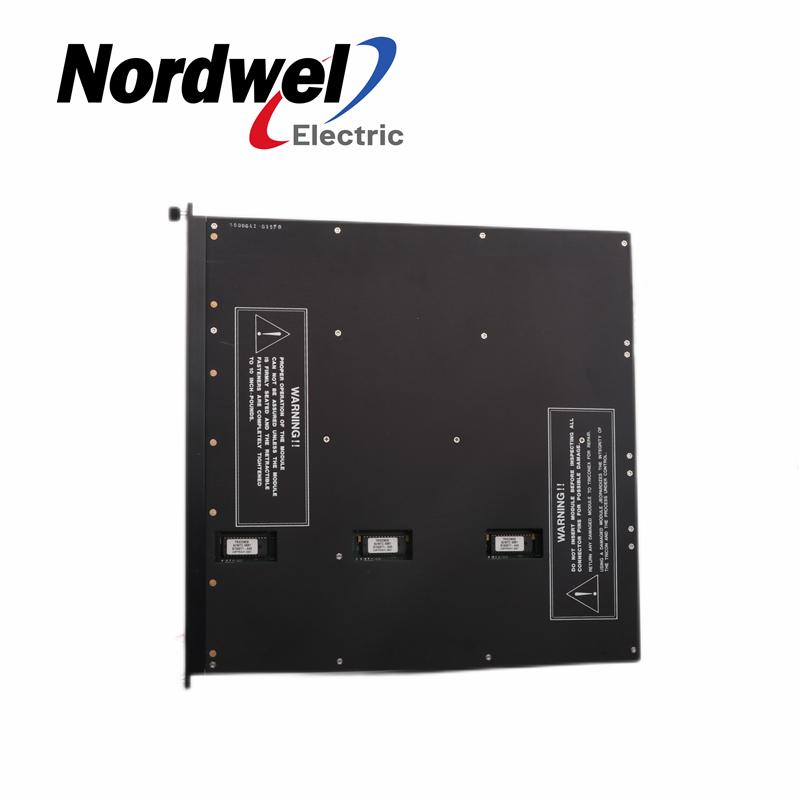

TRICONEX 3700A Analog Input Module,0–5 VDC, Non-commoned, TMR, 32 pts
Manufacturer : Triconex
Product No:3700A
Product Type :Main Processor
Full description: TRICONEX 3700A Analog Input Module, 0–5 VDC, Non-commoned, TMR, 32 pts.
All Analog Input Modules have three independent input channels. Each input channel receives
variable voltage signals from each point, converts them to digital values, and transmits the
values to the three Main Processors on demand. To ensure correct data for every scan, one value
is selected using a mid-value selection algorithm. Sensing of each input point is performed in a
manner that prevents a single failure on one channel from affecting another channel.
The Model 3700A, 3703E, 3704E, 3720, and 3721 Analog Input Modules provide a six percent
over-range measurement capability. The 3703E provides open-input detection, which can be
configured as upscale or downscale in TriStation 1131. If an open input (< 0 VDC) goes out of
range downscale, the Main Processors receive the integer value –32,767. If an open input (> 5
VDC or 10 VDC) goes out of range upscale, the Main Processors receive the integer value
+32,767.
