Part Number:
1336-PB-SP23CWeight:
0.3kgDimensions:
24.3cmX12.6cmX2.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

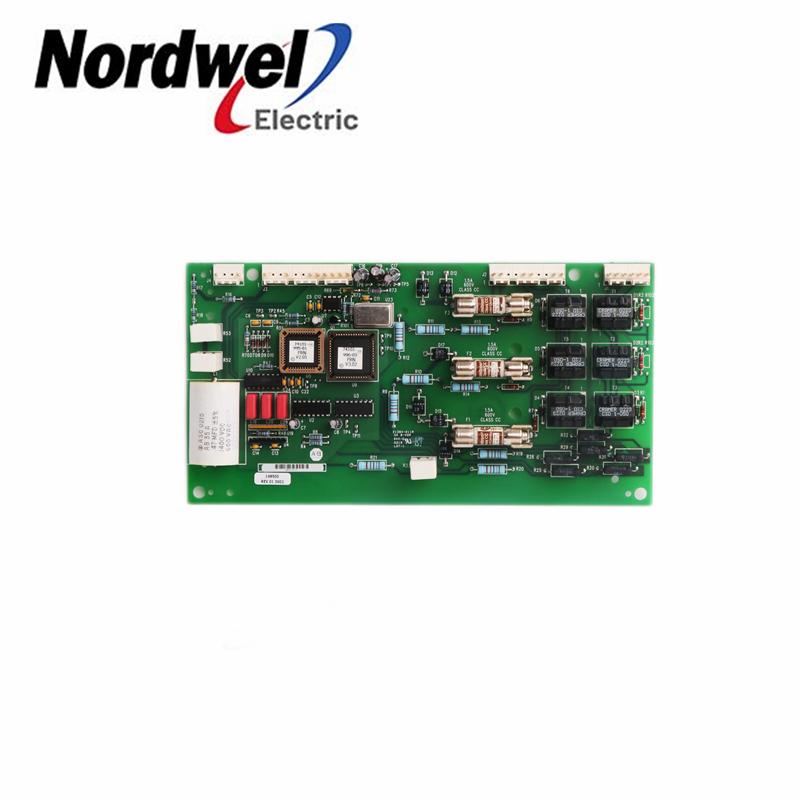

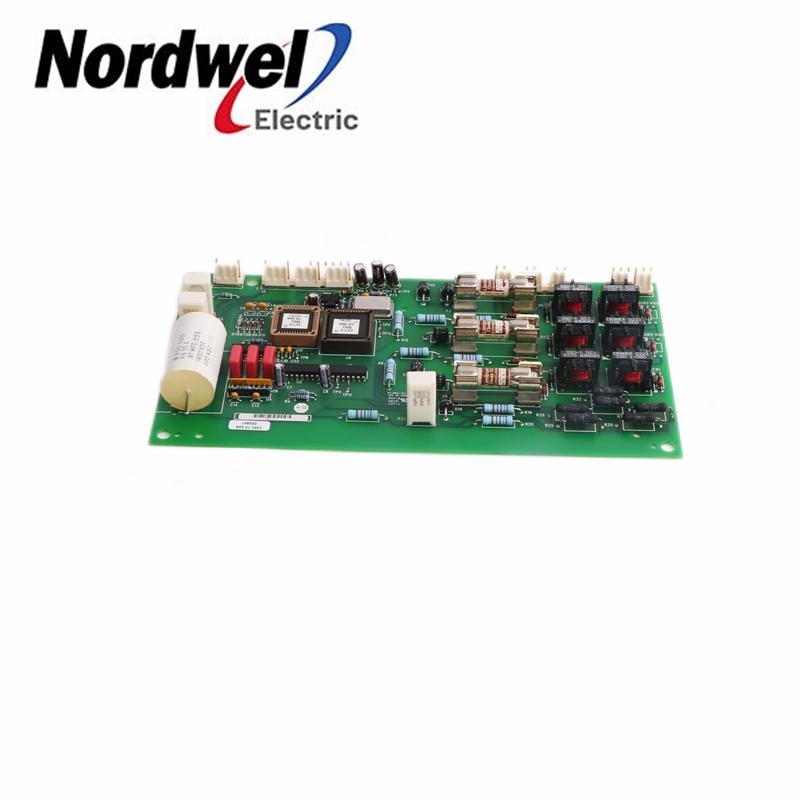

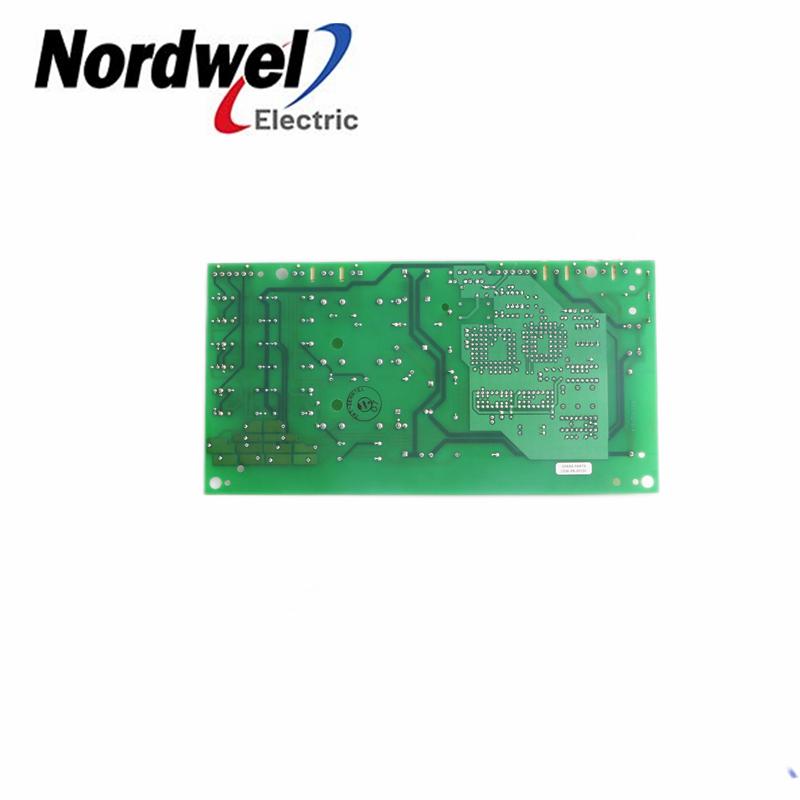

1336-PB-SP23C PRECHARGE BOARD
The 1336-PB-SP23C PCB board is Precharge enabled PCB board that has been designed and manufactured
by . It is a spare part for the adjustable frequency AC drives from the catalog. A PCB
is a printed circuit board which connects electronic components by using conductive tracks from 1 sheet made
of copper laminated layers. PCB boards are found in almost all electronic devices. A Precharge PCB board is
used to protect an industrial machine system and to avoid contactor failure due to high levels of inrush current
from capacitors. The 1336-PB-SP23C PCB board runs with 460 Volts AC supply voltage. The output power rating
of the module ranges from 60 to 600 Horsepower. The module is mounted in the drive board by using screws on
the back of the board. The Precharge PCB board is used with all the 1336 series variable frequency drives.
Technical Specifications for 1794-AENT
Brand / Automation
Series 1336 PCB Boards
Part Number 1336-PB-SP23C
Description Precharge PCB
Voltage 460 Volts AC
Horsepower 60-600 Horsepower
Temperature 0-50 degrees Celsius
Product Lifecycle Status* Discontinued/Obsolete
