Part Number:
1336S-B010-AN-ENWeight:
17.7kgDimensions:
27.9 cm x 47.0 cm x 22.9 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

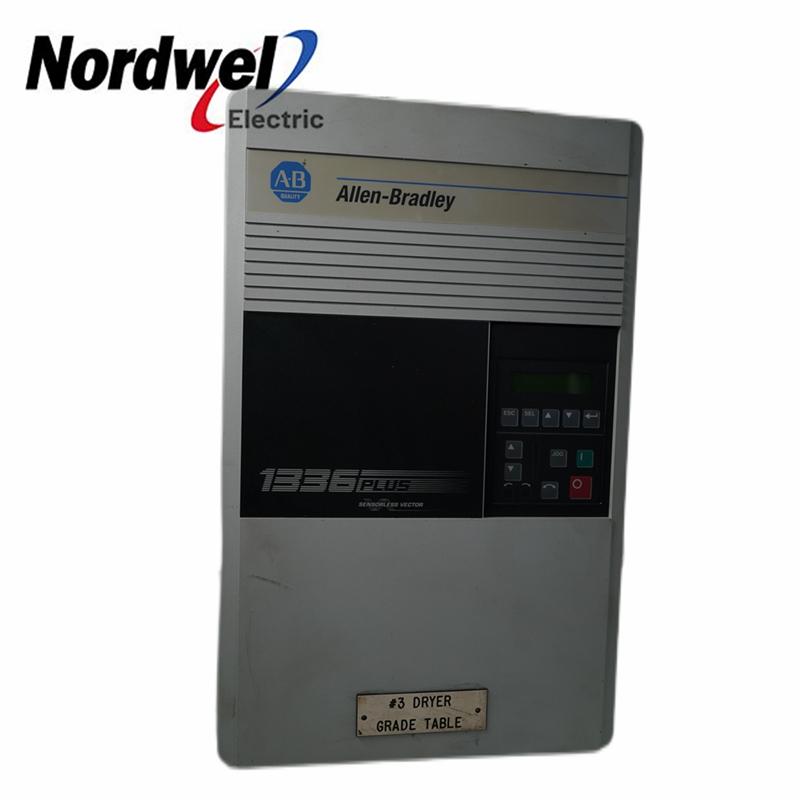

1336S-B010-AN-EN 1336 PLUS AC drive
Technical Description of 1336S-B010-AN-EN
This 1336 PLUS Adjustable Frequency AC drive is a 380-480V AC unit with 7.5 (10) kilowatts(horsepower)
and has a(n) IP 00 (Open) enclosure. This unit is in the English language.
Technical Specifications for 1336S-B010-AN-EN
Manufacturer Automation
Part Number/Catalog No. 1336S-B010-AN-EN
Voltage 380 to 480 Volts AC
kW (Horsepower) 7.5 (10)
Enclosure Type IP00 (Open)
Product Lifecycle Status* Discontinued/Obsolete
The 1336S-B010-AN-EN variable frequency drive has been designed to provide adjustable speed
and flux control for 3-phase motors. The drive is controlled by using a microprocessor which can be programmed
by using tailor-made software for the drive. It can support a wide variety of application requirements. The drive
has an open enclosure with an IP00 rating. The drive should be protected from water splashes. The drive has a
power output delivery rating of 10 Horsepower. By using multiple language modules, the drive can support up to 7
different languages. Different braking choices are available on the drive. It includes the dynamic brake, brake
chopper kits, and other regenerative methods. Also, Flux braking and DC braking can be made available by using
Firmware. The drive is equipped with motor overload protection which can be programmed by using software. This
feature has been certified by UL to comply with the NEC 430.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
