Part Number:
1756-OF8IWeight:
0.35kgDimensions:
23.5*18.3*5.3cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

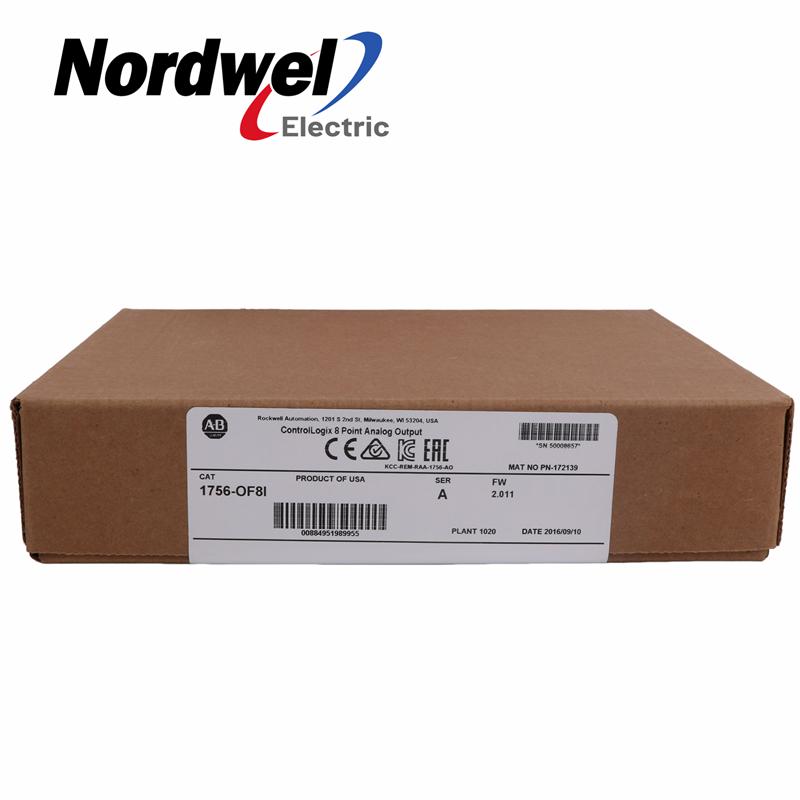

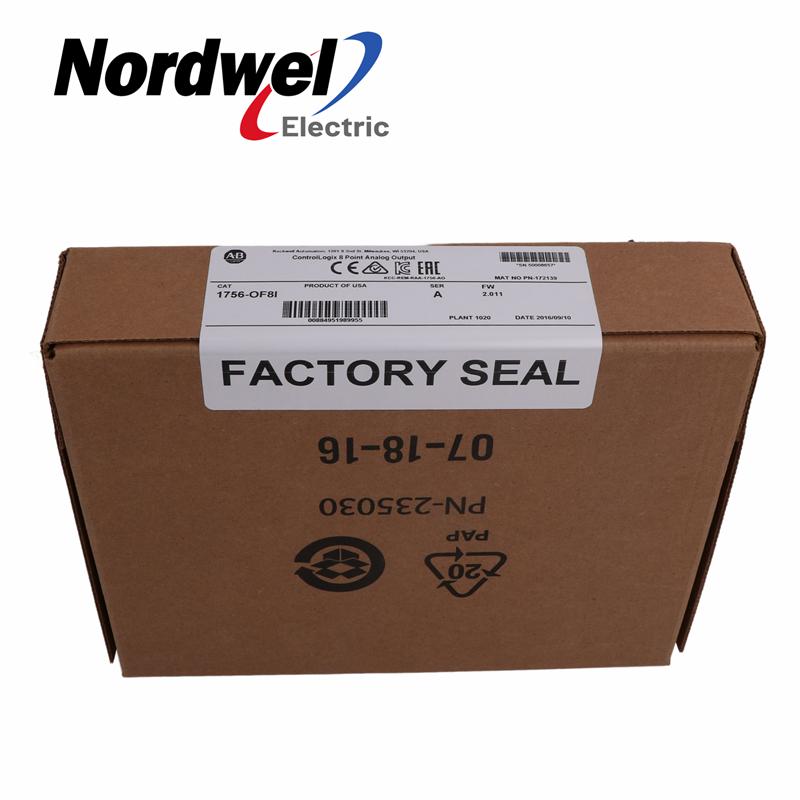

1756-OF8I ControlLogix analog output module
Description: The 1756-OF8I is a ControlLogix analog output module. This module has Eight (8) individually
isolated channels. It is capable of providing Voltage and Current output signals with ranges of -10 to 10V,
0 to 10V, and 0 to 5V and 0-20 mA signals respectively. This module is used to drive modulating actuators
and devices. This module is directly installed to any 1756 ControlLogix chassis.
Technical Specifications for 1756-IF8I
Series ControlLogix
Outputs 8 Current
Module Type Isoloated Analog Output Module
Current Draw (24 Volts DC) 400 milliamps
No. of Outputs Eight (8) Current / Voltage
Power Dissipation 6.5 Watts
Output Current Range 0-20 mA; 4-20 mA
Output Range 0-20 or 4-20 milliamps
Output Voltage Range 10…10V; 0…10V; 0…5V
