Part Number:
330878-91-00Weight:
0.4kgDimensions:
25x24x3cmManufacture Year:
Latest yearPlace of Origin:
USACertification:
COODescription:

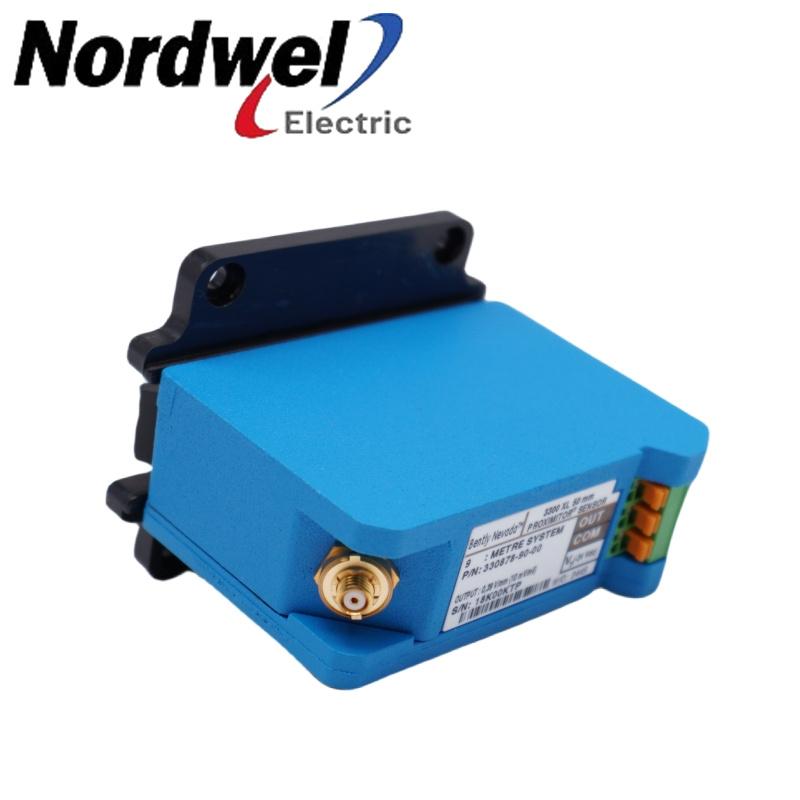

330878-91-00 Bently Nevada Proximitor Sensor
Get in touch today for a quick price
Sales manager : Tiffany Guan Email: sales2@mooreplc.com
Team: dddemi33@outlook.com Mobile / WhatsApp : + 86 18030235313
Product Description
The Bently Nevada 330878-91-00 is a 3300 XL 50 mm Proximitor eddy-current sensor system designed for vibration and displacement monitoring in industrial rotating machinery. Consisting of a 50 mm probe, extension cable, and proximitor sensor, the system offers an exceptionally long linear range of 27.9 mm (1100 mils), making it ideal for measuring differential expansion (DE) or rotor expansion (Rx) in large steam turbine generators. With a sensitivity of 7.87 mV/μm (200 mV/mil) and factory precision calibration, it provides high-accuracy measurements. The sensor system supports panel and DIN rail mounting, with system lengths of 5 or 9 meters. It is compatible with the Bently Nevada 3500 module and other vibration monitors. It features excellent electromagnetic shielding to resist strong radio frequency interference, and the operating temperature range for the probe is -40°C to +177°C, while the operating temperature range for the proximitor sensor is -40°C to +85°C. It is suitable for measuring shaft vibration, axial displacement and speed of large rotating machinery such as steam turbines, water turbines, fans and compressors, and is widely used in industrial sites such as power plants, chemical plants and oil refineries.
Product Parameters
Sensitivity:3.94 mV/mm/s (100mV/in/s) ±5%.
Transverse Sensitivity:Less than 5% of sensitivity.
Amplitude Linearity: ±2% to 152 mm/s (6 in/s) peak.
Dynamic Output Impedance:Less than 2400 Ω
Operating Temperature Range: -55°C to 121°C
|
Best Quality Assurance: |
|
1.We only provide theoriginal new items, 100% make sure the best quality! |
|
2.1 year warrant GUARRANTEE OF QUALITY (After Our Delivery Date). |
|
Payment Methods : |
|
Terms of payment: 100% advance bank wire transfer |
|
