Brand:
Bently NevadaItem NO.:
330101-00-16-05-02-0Part Number:
330101-00-16-05-02-00Weight:
0.05kgDimensions:
1.6x1.3x116cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

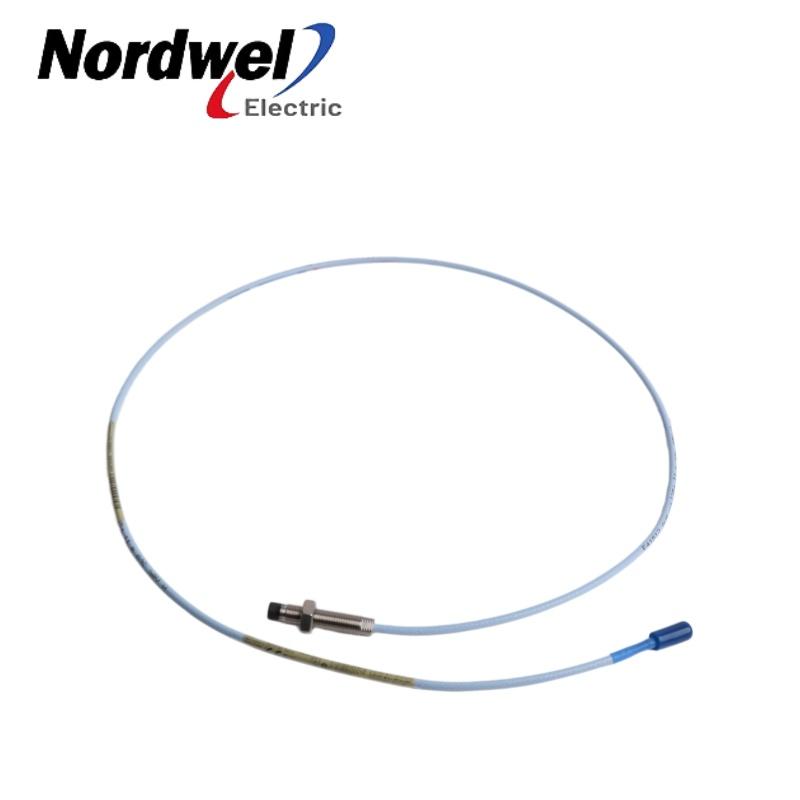

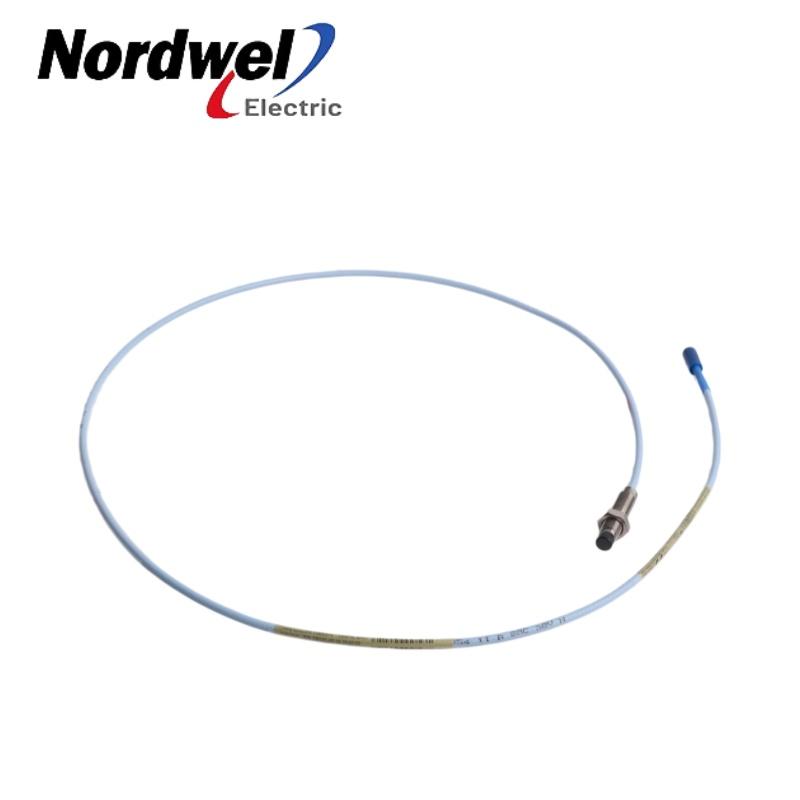

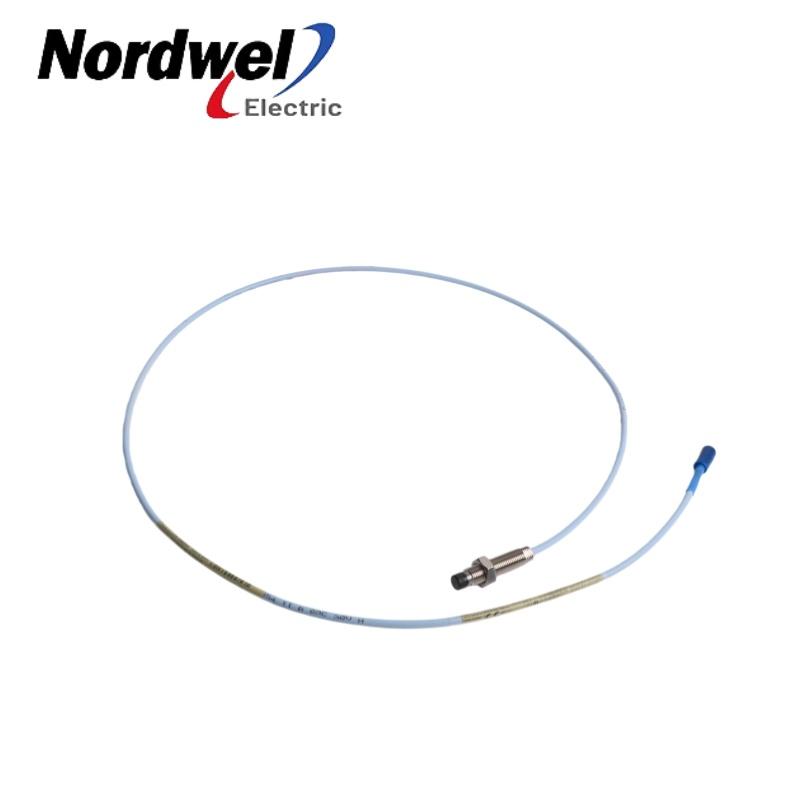

3300 XL 8 mm Proximity Probes
Product Information
Model number
330101-00-16-05-02-00
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.6x1.3x116cm
Weight
0.05kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Construction, Interfaces, and Safety Features
Construction: This is a 3300 XL 8 mm probe with a 3/8-24 UNF thread, without armor. The unthreaded length is 0.0 inches (option 00), and the overall case length is 1.6 inches (option 16). The probe tip is made of molded polyphenylene sulfide (PPS), and the case is constructed from AISI 303 or 304 stainless steel. The 75Ω triaxial cable is FEP-insulated and features the patented CableLoc design, providing 330 N (75 lbf) of pull strength.
Interfaces: The probe has a 0.5-meter total length (option 05) and terminates in a miniature coaxial ClickLoc connector (option 02). This gold-plated connector ensures a corrosion-resistant, finger-tight connection that audibly "clicks" when secure, requiring no special tools for installation or removal.
Safety Features: This model carries no hazardous area approvals (option 00). It is fully compliant with the API 670 Standard for mechanical configuration, linear range, and temperature stability. The probe incorporates a Viton® O-ring to seal differential pressure between the probe tip and case.
|
