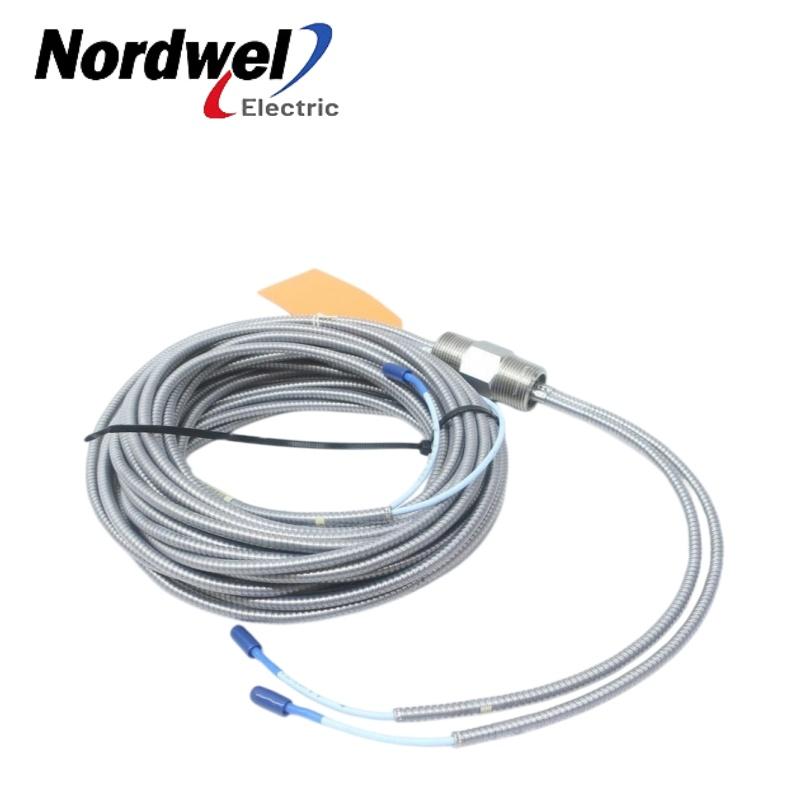

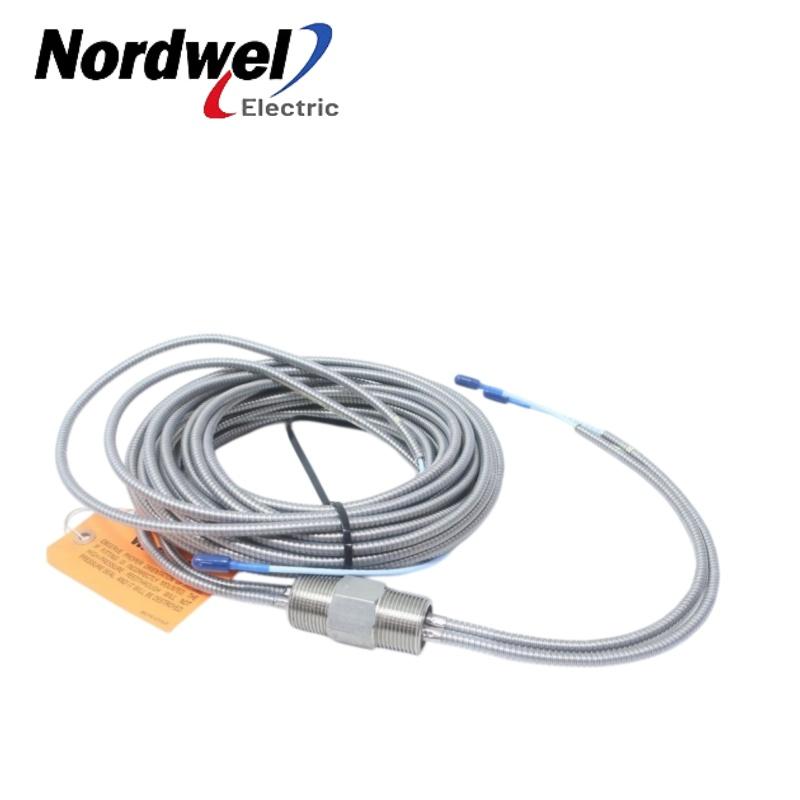

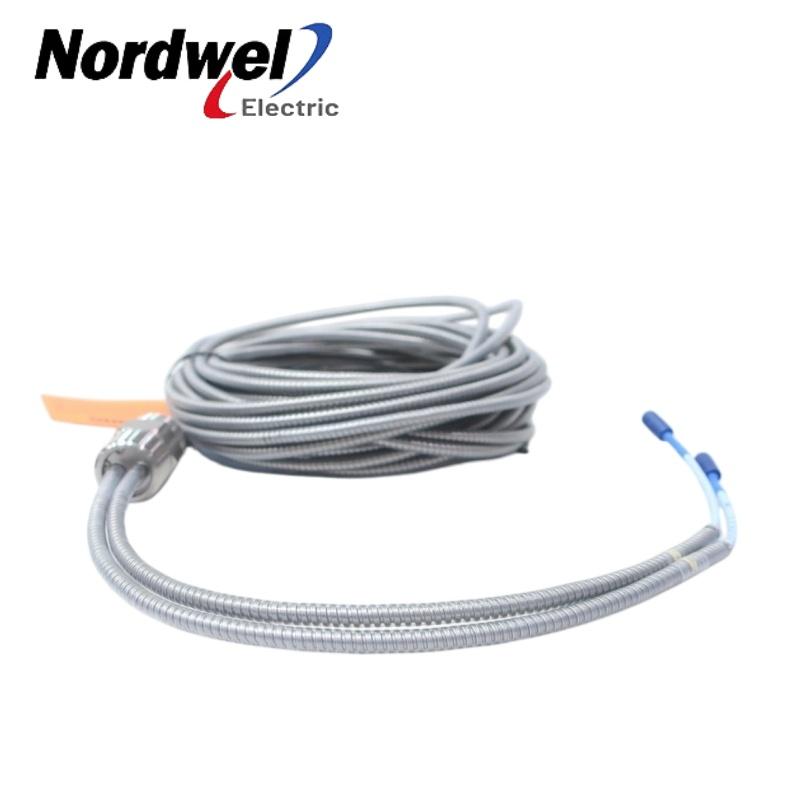

Bently Nevada identifies 330162 as the dual triaxial high-pressure feedthrough for routing two 3300-system cable paths through pressurized machinery.
Brand:
Bently NevadaItem NO.:
330162-03-45-45-45-0Goods Stock:
1Part Number:
330162-03-45-45-45-05-05-94-01-02Weight:
Not stated in the official datasheet; confirm before ordering.Dimensions:
Confirm from complete ordering code and pressure-boundary drawing.Description:
Bently Nevada 330162 dual triaxial high-pressure feedthrough for the 3300 system. Confirm the complete model, nameplate, pressure-boundary drawing, installed cable arrangement and manufacturer documentation before ordering.Bently Nevada identifies 330162 as the dual triaxial high-pressure feedthrough for the 3300 system. Confirm the complete target code against the assembly nameplate, pressure-boundary drawing and manufacturer documentation before ordering.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL High-Pressure Feedthrough |
| Product type | Dual triaxial HP feedthrough for 3300 system |
| Cable paths | Two |
| Maximum pressure rating | 2.76 MPa (400 psi) |
| Minimum bend radius | 25.4 mm (1.00 in), with or without armor |
| Fitting material | 303 stainless steel |
| Humidity | 100% non-condensing |
| Connector orientation | Female on probe side; male on Proximitor Sensor side |
| Dimensions | Confirm from the complete ordering code, pressure-boundary drawing and manufacturer documentation. |
| Weight | Not stated in the official datasheet; confirm before ordering. |
Source: Bently Nevada 3300 XL High-Pressure Feedthrough Datasheet 141622.
Verify the installed pressure boundary, cable routing and environmental conditions before the assembly is removed or fitted.
Match the complete designation to the installed pressure boundary and proximity measurement chain.
Related pressure-boundary configurations; not direct substitutes for the target code.
Confirm cable count, probe system and all ordering options.
NSv-family pressure-boundary references; verify the installed measurement chain.
Probe references for installed-system review; not direct substitutes.
Confirm probe family, cable dimensions and pressure-boundary interface.
Companion measurement-chain references; confirm complete ordering codes.
These cross-brand industrial spare references are not direct substitutes for 330162-03-45-45-45-05-05-94-01-02. Confirm manufacturer, complete model, revision and installed-system compatibility before ordering.
Manufacturer-family references for exact-order and installed-system review.
Target dual triaxial feedthrough; confirm every option segment.
Official-data reviewedSingle triaxial HP feedthrough for the 3300 system.
Official-data reviewedDual triaxial HP feedthrough base family for the 3300 system.
Official-data reviewedTriple triaxial HP feedthrough for the 3300 system.
Official-data reviewedDual triaxial HP feedthrough for the 3300 XL 11 mm system.
Official-data reviewedDual-cable HP feedthrough for the NSv system.
Official-data reviewedMatch the complete code, assembly nameplate, pressure-boundary drawing and installed 3300 measurement chain.
Bently Nevada identifies 330162 as a dual triaxial HP feedthrough for the 3300 system.
The official datasheet states 2.76 MPa (400 psi) for 330162.
The probe side is female and the Proximitor Sensor side is male.
Confirm O-ring material against the process medium and temperature requirements.
Confirm dimensions from the complete code and pressure-boundary drawing. Weight is not stated in the official datasheet.
No. Cable count, probe family, armor, cable dimensions, connectors and sealing options must all match.
Provide the complete model, quantity, destination, clear nameplate images, installed-system context and pressure-boundary drawing.
Manufacturer-family and companion measurement-chain references for compatibility review.
Related pressure-boundary and measurement-chain components for engineering review.
Single triaxial HP feedthrough for 3300 system
Triple triaxial HP feedthrough for 3300 system
Dual triaxial HP feedthrough for 3300 XL 11 mm
Single-cable HP feedthrough for NSv system
Dual-cable HP feedthrough for NSv system
Probe, extension cable and Proximitor Sensor family
Probe-system reference for compatible feedthrough review
Probe-system reference for compatible feedthrough review
Confirm O-ring material against process medium and temperature
