Part Number:
1734-OE2CKWeight:
0.5 kgDimensions:
14.1x30.2x42.6cmManufacture Year:
2022Place of Origin:
USACertification:
CO,CQDescription:
Analog Output
Technical Specifications for 1734-OE2CK
|
Part number |
1734-OE2CK |
|
Manufacturer |
|
|
Description |
Analog Output |
|
Country of origin |
USA |
|
Status |
Brand New In Stock |
|
Year of Production |
2020-2022 available |
|
Shipment |
From Xiamen, China to Worldwide |

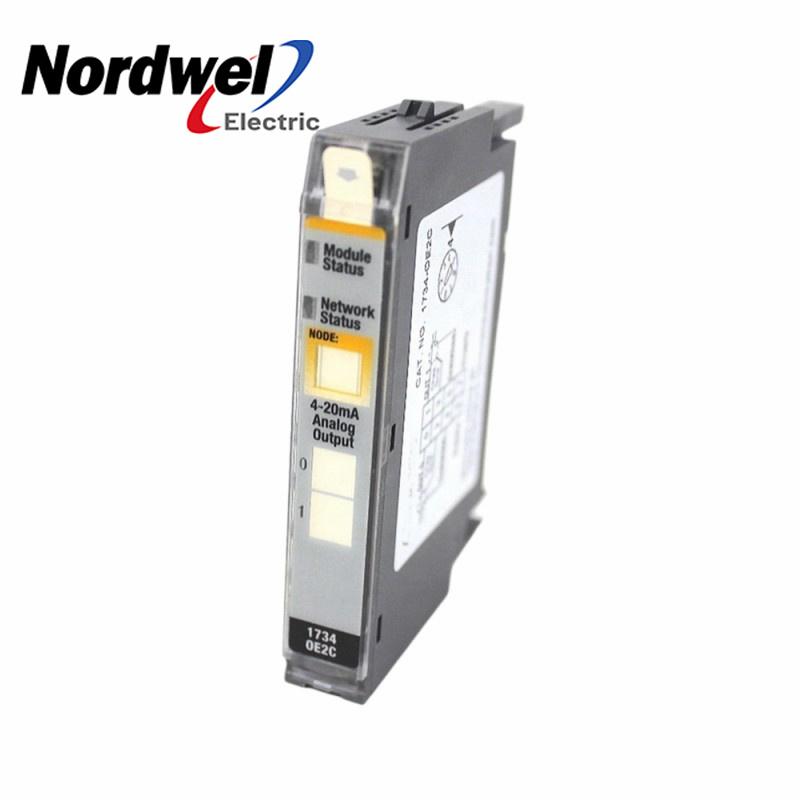

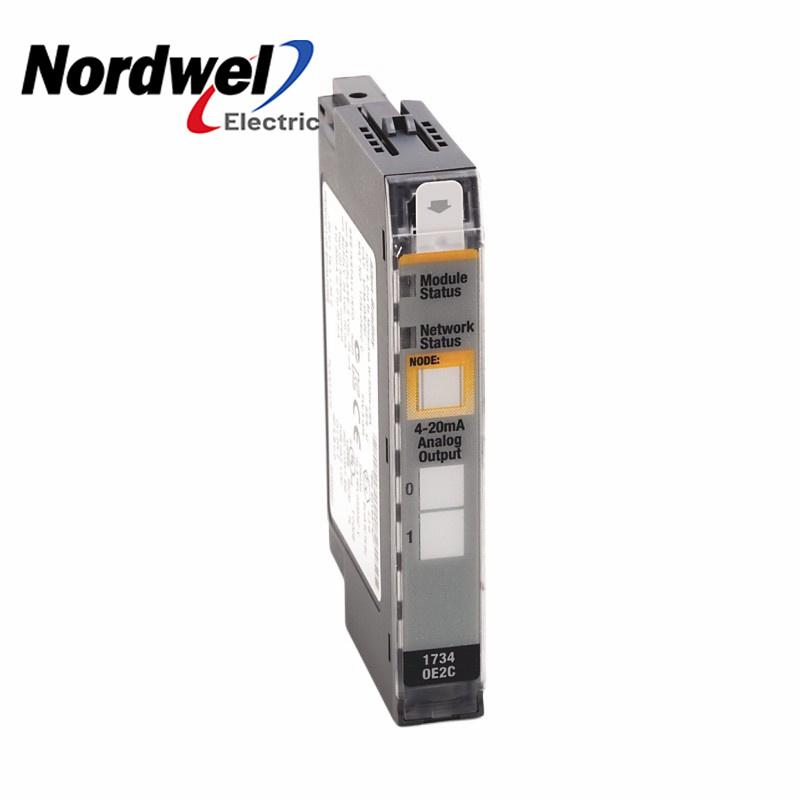

About 1734-OE2CK
In setting an individual mode, the 1734-OE2C has 2 modes to choose from 0-20mA and 4-20mA (default). It has a default scaling points of 1638 at 4 mA and 8191 at 20 mA. The model has a general status bit set whenever an open-wire happens. The channel indicator blinks red whenever there is an open wire or a loss of field power. The 1734-OE2C has an absolute accuracy of 0.1% full-scale at 25 Deg. Celsius. Its accuracy drift with temperature is 30 ppm/ Deg. Celsius. It has a step response of up to 63% of FS is 24 µs and a current conversion rate of 16 µs.
The 1734-OE2C has a resistive load on the voltage output that ranges from 0-750 Ohms. Its point-bus current is 75 mA at 5V DC and its power dissipation is 1.23 Watts. The 1734-OE2C’s thermal dissipation is 4.19 BTU/Hr. and an isolation voltage of 50V continuous tested to withstand 2200V DC for the 60s. It has an external DC supply voltage of 24V DC, nominal and voltage range from 10-28.8V DC. It supplies a current of 70mA at 24V DC which includes outputs at 20mA. The 1734-OE2C comes with a 4 key-switch position and a dimension of 56 x 12 x 75.5 mm. It has a mass of approximately 36g.
✦ Features of PLC
Manager Stella quotes to you
|
100% original product |
100% quality assurance and the more competitive price. |
|
Thoughful service |
Professional after-sales service. |
|
Quick Shipping |
We have large quantites of inventories, can ship immediately. |
Our Advantage Brands
 |
1.(AB) Series 2.Schneider(Schneider Electric) Series 3.General electric(General Electric) Series 4.Westinghouse Series 5.SIEMENS Series 6.Bosch Rexroth:Indramat, I/O module,PLC controller, Driver Module 7.Westinghouse: OVATION System, WDPF System, MAX1000 system spare parts 8.Siemens:Siemens MOORE, Siemens Simatic C1, Siemens CNC system 9.Invensys Triconex: Redundant fault-tolerant control system, Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture. |
|
