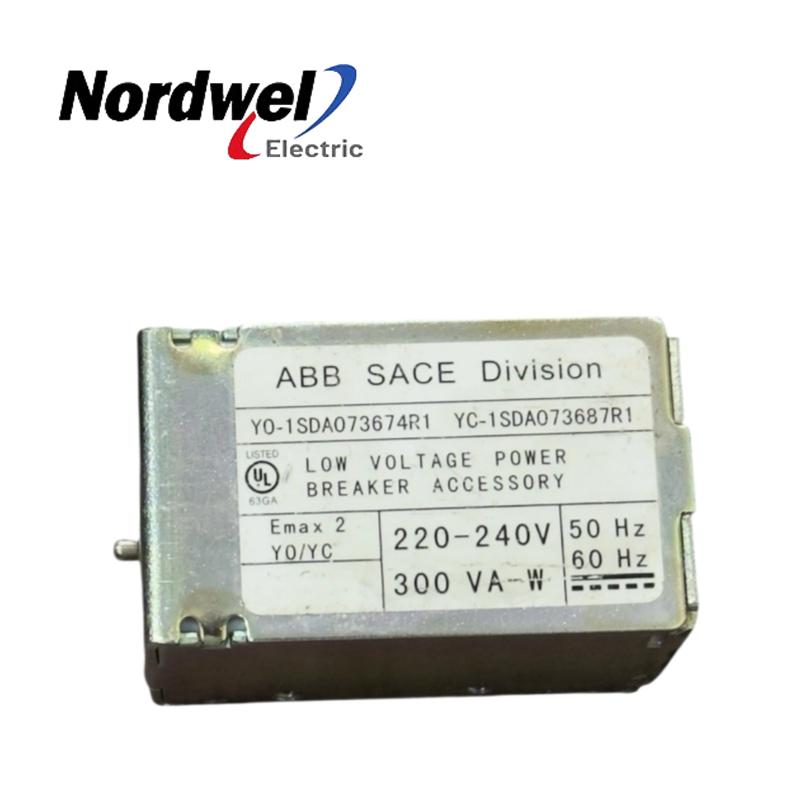

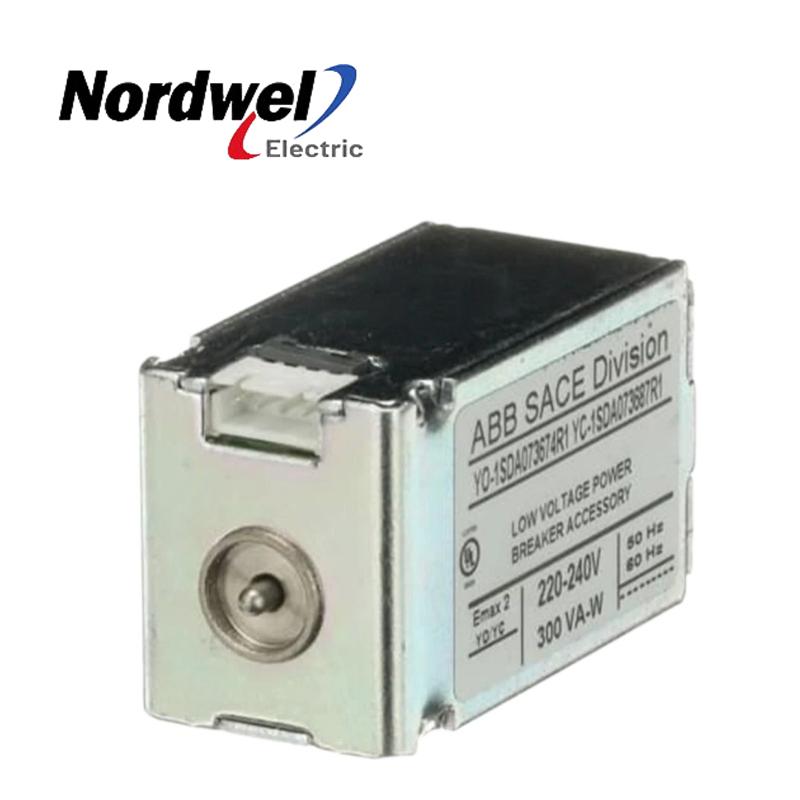

ABB 1SDA073674R1/1SDA073687R1 SHUNT OPENING RELEASE

Q1: How do I correctly install the ABB 1SDA073674R1 / 1SDA073687R1 shunt opening release?
A1: Disconnect the breaker from all power sources and ensure the accessory is firmly mounted in the designated Emax 2 or Tmax XT compartment.

Q2: Why is the ABB 1SDA073674R1 not triggering the breaker opening function?
A2: Verify the control voltage rating, wiring polarity, and terminal tightness, and confirm the release coil receives the correct AC/DC supply.

Q3: What should I check if the ABB 1SDA073687R1 overheats during operation?
A3: Inspect the input voltage stability, ambient temperature, and coil duty cycle to prevent continuous over-energization.

Q4: Can the ABB 1SDA073674R1 / 1SDA073687R1 be replaced without changing the breaker configuration?
A4: Yes, these accessories are designed for direct integration with compatible ABB SACE Emax 2 and Tmax XT circuit breakers.

Q5: How can I troubleshoot intermittent trip failures on the ABB 1SDA073674R1?
A5: Check for loose control wiring, oxidized terminals, insufficient control voltage, or mechanical obstruction inside the breaker mechanism.
