Part Number:
S200-TBNFWeight:
0.18kgDimensions:
9.3cmX9.5cmX6cmManufacture Year:
2021Place of Origin:
SwedenCertification:
CO,CQDescription:

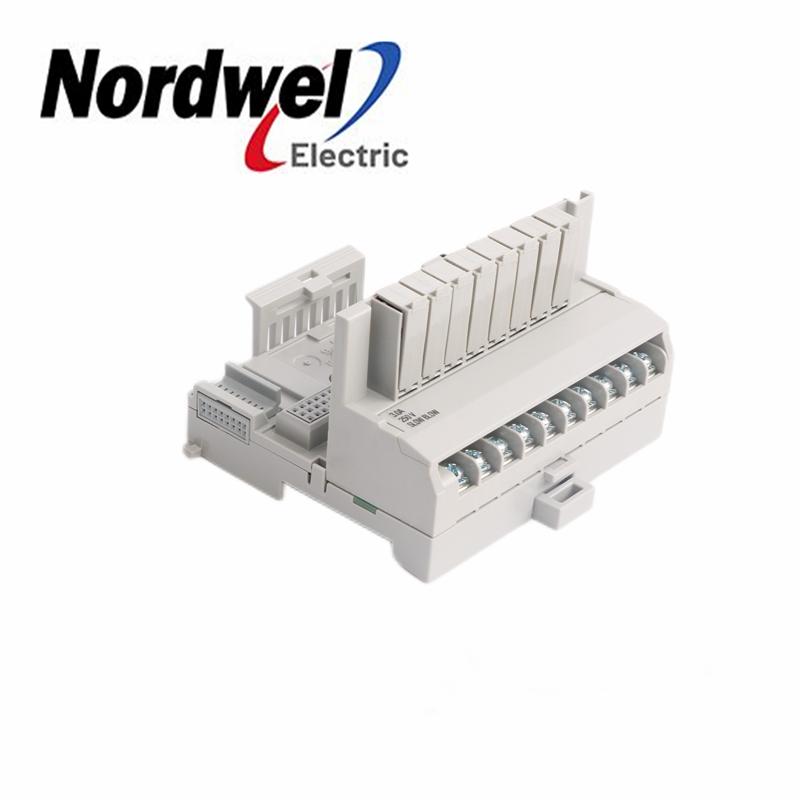

ABB S200-TBNF Fused Terminal Base
Manufacturer:
Part Number:
S200-TBNF
Description:
ABB S200-TBNF
Full Description:
ABB S200-TBNF Fused Terminal Base
Status:
In stock
ABB
Warranty
12 Months
Number of terminals 2 rows of 10
Current capacity 10 A max.
Voltage rating 264 V AC max. (rms)
Fuses 8 (5 x 20 mm)
Isolation voltage Channel-to-channel isolation
determined by inserted unit
Backplane key code Determined by inserted unit
Wire size Solid or stranded copper wire 0.5–2.5 mm2 or AWG 20–AWG 12
200-TBNF is intended for connecting an I/O unit and a number of devices to the I/O system.
Screw terminals on 200-TBNF are well insulated and can be used for connection of units which
allows both +24 V DC and 230 V AC connections.
This unit is primarily for units with eight inputs or outputs. 200-TBNF is equipped with two screw
terminal rows. The upper row has ten screw terminals, where terminal 16 and 33 are dedicated for
0 V DC and even numbered terminals for input/output signals from a device.
This row is equipped with holders for eight fuses connected in series to the eight channels on the
top row. The unit is delivered with 3 A fuses, primarily intended for 200-OW8.
The lower row consists of ten screw terminals, where terminals 34 and 51 are for +24 V DC
connection and odd numbered terminals for input/output signals from a device.
