330500-00-02 Velomitor Piezo-velocity Sensor

Bently Nevada 330500-00-02 Velomitor Piezo-velocity Sensor

EMAIL STELLA

Bently Nevada official data reviewed

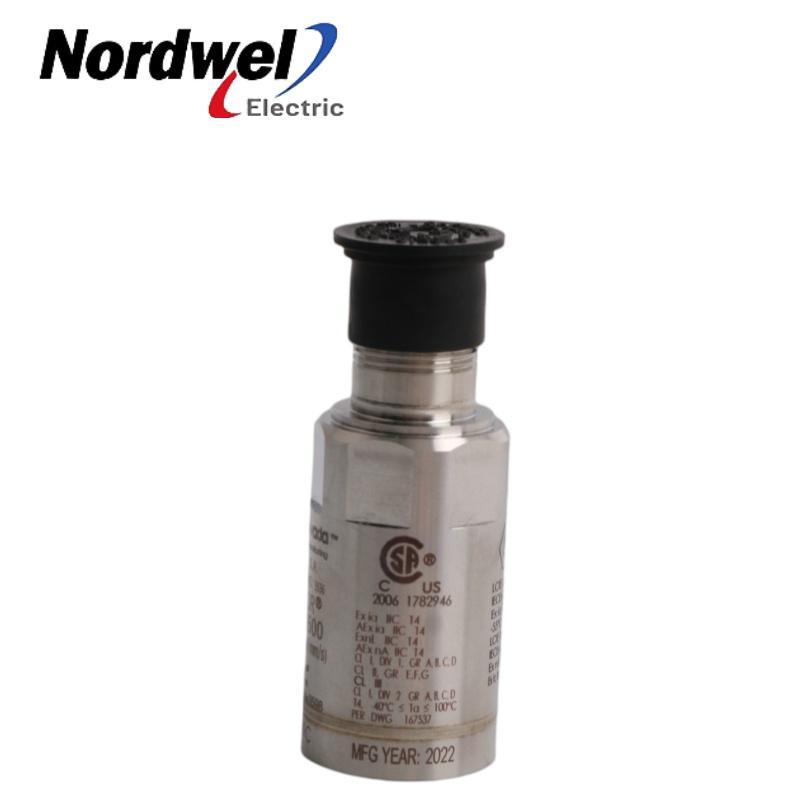

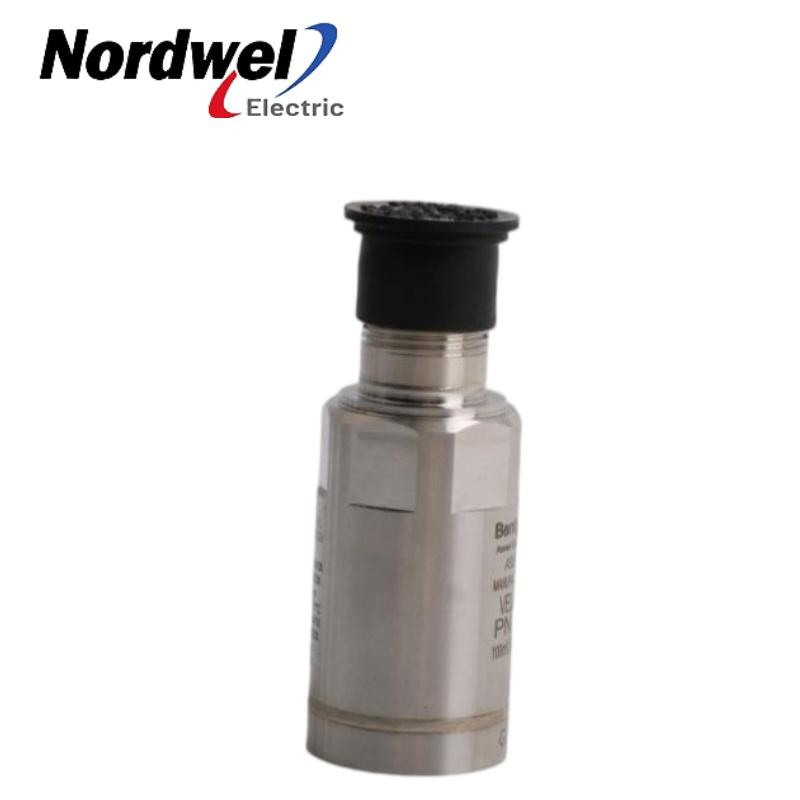

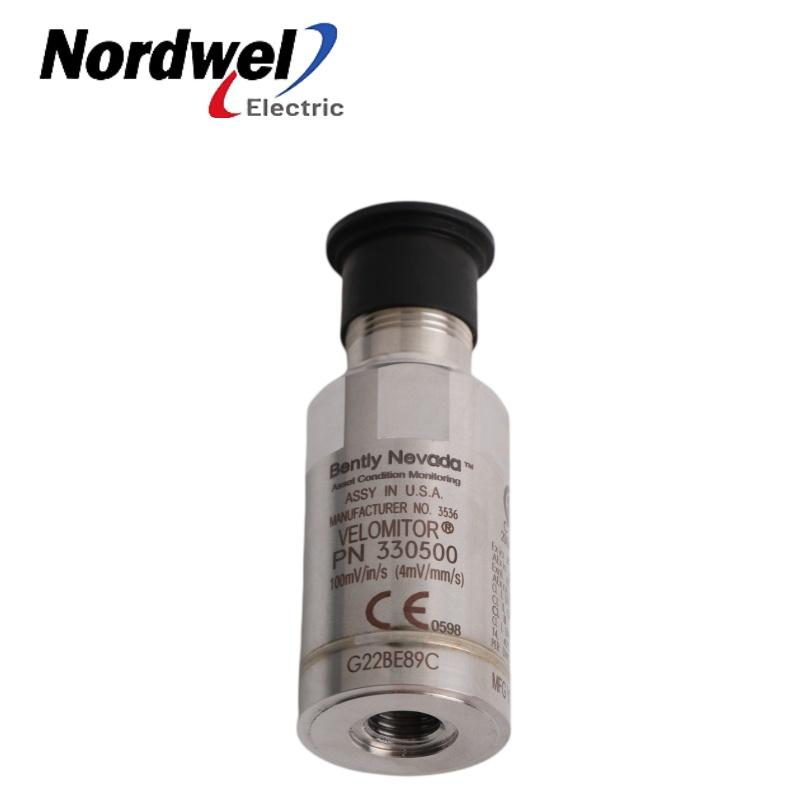

330500-00-02 — Velomitor Piezo-velocity Sensor

Bently Nevada identifies the 330500 as a rugged 2-pin integrating piezoaccelerometer for absolute bearing housing, casing and structural vibration measurement.

330500 Velomitor Piezo-velocity Sensor100 mV/in/s sensitivityATEX approval option

Sales managerStella

Mobile / WhatsApp+8618159889985

Emailsales@askplc.com

Officially reviewed product profile

Product family330500 Velomitor Piezo-velocity Sensors

Exact model330500-00-02

Product typeIntegrating piezoaccelerometer

Mounting adaptor00 — No adapter

Sensitivity3.94 mV/mm/s (100 mV/in/s) ±5%

Agency approval02 — ATEX (European)

Connector2-pin MIL-C-5015

Measured quantityAbsolute bearing housing, casing or structural vibration

Brand:
Bently Nevada
Item NO.:
330500-00-02
Goods Stock:
1
Weight：
142
Part Number:
330500-00-02
Weight:
142 g (5.0 oz), typical
Dimensions:
25.3 mm diameter × 63.2 mm height
Certification:
ATEX (European), ordering option 02
Description:
Bently Nevada 330500 Velomitor Piezo-velocity Sensor; rugged 2-pin integrating piezoaccelerometer for absolute bearing housing, casing or structural vibration measurement.

Inquiry now

330500-00-02 configuration inquiry

Get a precise quote for 330500-00-02

Email Stella

Sales managerStella

WhatsApp+8618159889985

Emailsales@askplc.com

330500-00-02 official identification

Bently Nevada identifies 330500-00-02 as a 330500 Velomitor Piezo-velocity Sensor ordered with no mounting thread adapter and the ATEX European approval option.

Complete model330500-00-02

Documented family330500 Velomitor Piezo-velocity Sensors

Verified functionAbsolute bearing housing, casing or structural vibration measurement

Interface or ordering fact330500-AA-BB: 00 no adapter; 02 ATEX (European)

Engineering and installation checks

Keep the complete designation 330500-00-02 in the quotation and receiving record.
Confirm that mounting option 00 and agency approval option 02 match the installed requirement.
Manufacturer verification basis: Bently Nevada 330500 Velomitor Piezo-velocity Sensor Datasheet 141632 Rev. V.

Official product data

330500-00-02 key specifications

Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency response	4.5 Hz to 5 kHz ±3.0 dB; 6.0 Hz to 2.5 kHz ±0.9 dB
Velocity range	1270 mm/s (50 in/s) peak
Operating temperature	−55°C to 121°C (−67°F to 250°F)
Weight	142 g (5.0 oz), typical
Case	316L stainless steel; hermetically sealed

Source: Bently Nevada 330500 Velomitor Piezo-velocity Sensor Datasheet 141632 Rev. V.

Pre-order check 01

Installation environment

Verify the mounting surface, connector, cable, orientation and environmental conditions before installation or replacement.

Confirm that mounting option 00 and agency approval option 02 match the installed requirement.
Record the sensor orientation and cable routing before disconnecting the existing transducer.
Verify case isolation, cable shielding, connector condition and monitor input requirements.
Complete a controlled vibration measurement and monitoring-chain functional check after installation.

Record the as-found installation and final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete designation to the mounting arrangement, connection cable, monitor input and approved measurement chain.

Mounting adaptor option: 00 — No adapter
Agency approval option: 02 — ATEX (European)
Connector: 2-pin MIL-C-5015
Mounting arrangement: No adapter supplied; confirm mounting surface and thread requirement
Cable: Confirm cable part number, length, shielding and monitor input

Final selection: confirm 330500-00-02, mounting interface, ATEX requirement, cable and monitor compatibility against the installed system documentation.
