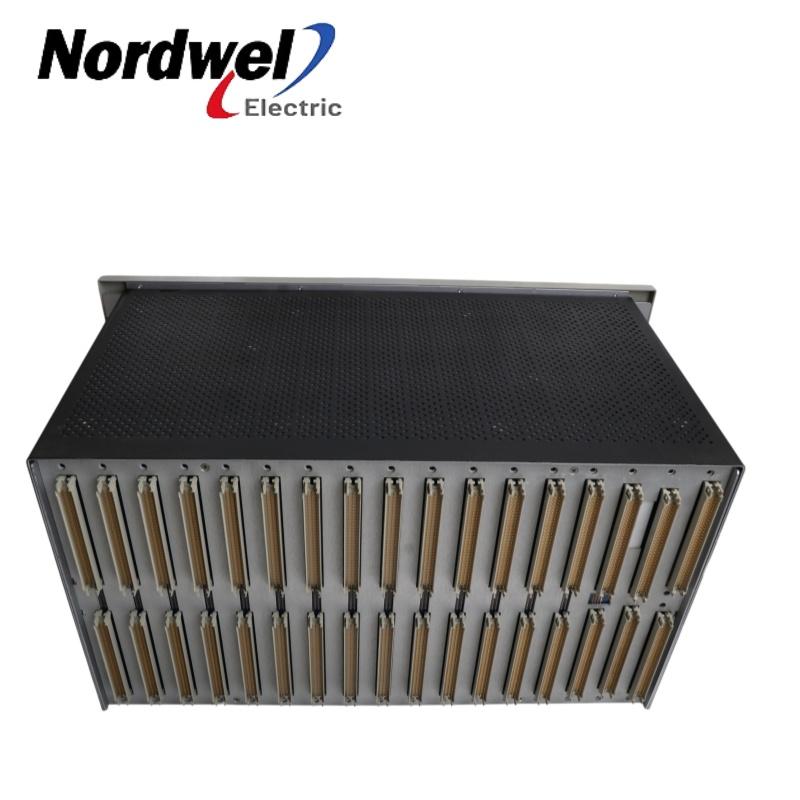

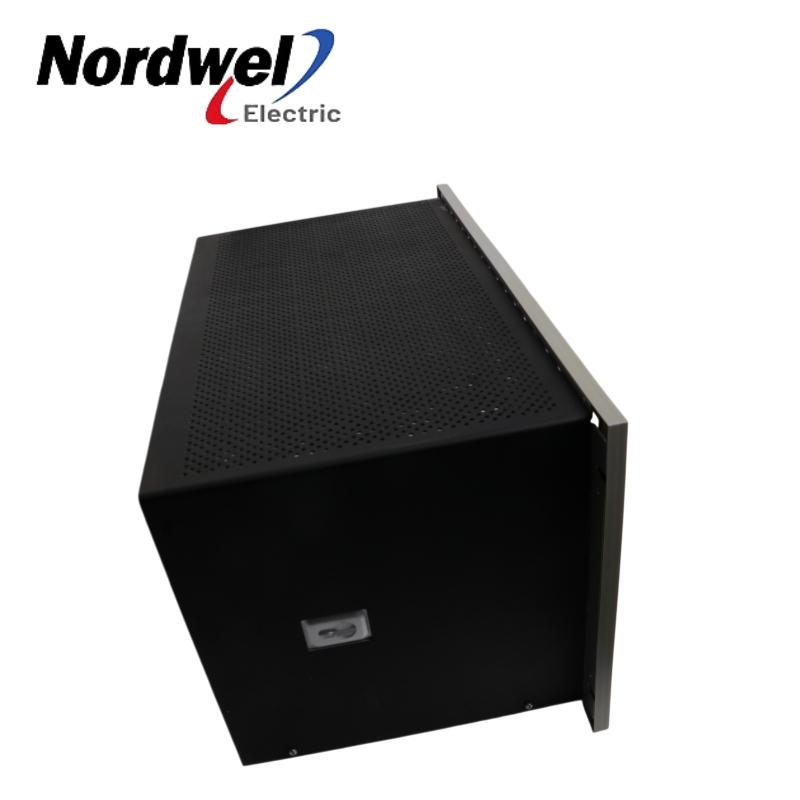

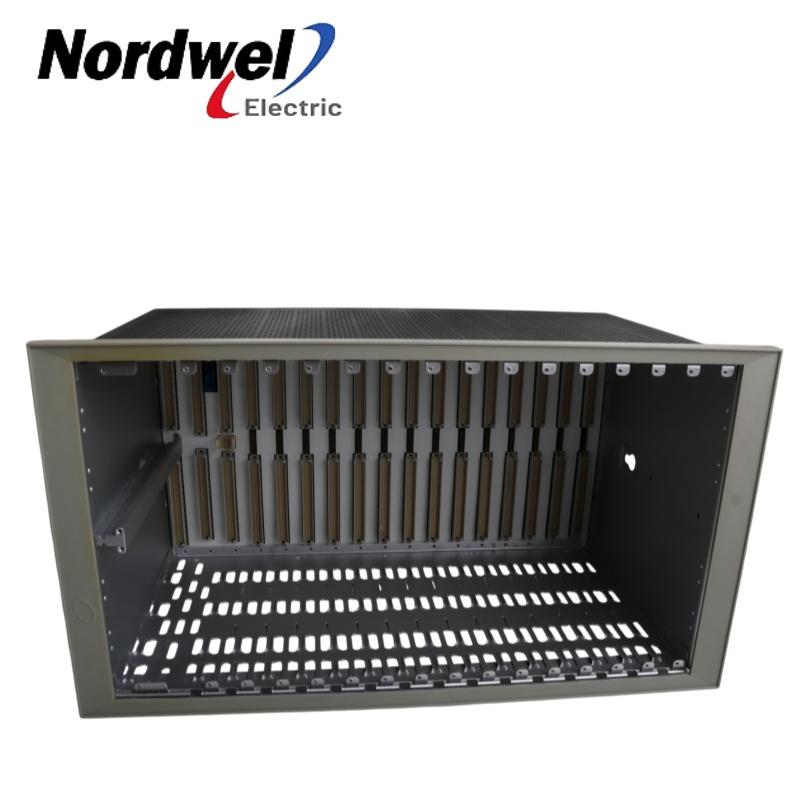

Bently Nevada identifies the 3500/05 as the system rack for mounting 3500 monitor modules and power supplies. The supplied ordering reference indicates a 19-inch full-size rack with the rack-mount option.
Brand:
Bently NevadaItem NO.:
3500/05-01-02-00-00Goods Stock:
1Part Number:
3500/05-01-02-00-00Description:
Bently Nevada 3500/05 system rack ordering reference; the supplied code indicates a 19-inch full-size rack with rack-mount option. Confirm the complete nameplate suffix before ordering.Bently Nevada documents the 3500/05 System Rack as the mounting and power-distribution structure for 3500 monitor modules and power supplies. In the official ordering structure, option 01 denotes the 19-inch full-size rack and option 02 denotes the rack-mount format.
Verify rack access, mounting rails, power supplies, interface module, I/O modules and cabinet clearances.
Confirm the complete model, nameplate, installed configuration and manufacturer documentation before ordering.
Official source: Bently Nevada 3500/05 System Rack Datasheet 141525 Rev. M.
These cross-brand industrial spare references are not direct substitutes for 3500/05-01-02-00-00. Confirm manufacturer, complete model, revision and installed-system compatibility before ordering.
Related 3500 rack and system items for documentation-controlled review; they are not direct substitutes.
Full-size panel-mount 3500 system rack.
Configuration reviewFull-size rack-mount 3500 system rack.
Configuration reviewFull-size bulkhead-mount 3500 system rack.
Configuration reviewPanel-mount mini-rack with seven module slots.
Configuration reviewAC power supply module for the 3500 rack.
Configuration reviewTransient Data Interface for the 3500 rack.
Configuration reviewMatch 3500/05-01-02-00-00 with the complete nameplate code, rack size, mounting format and approval options.
The 3500/05 System Rack belongs to the Bently Nevada 3500 Machinery Protection System.
The official ordering table identifies option 01 as the 19-inch full-size rack with 14 monitor-module slots.
The official ordering table identifies option 02 as the rack-mount format for a full-size 19-inch EIA rack.
The official ordering format contains additional approval, reserved and European-compliance option segments.
The official datasheet requires the power supplies and rack interface module to occupy the far-left positions.
Confirm power supplies, RIM or TDI, monitor modules, rear I/O modules and any internal barriers.
Verify mounting rails, rear wiring access, cabinet clearances, environmental conditions and approval requirements.
Provide the complete rack nameplate, module inventory, installed-system drawings, quantity and destination.
Stella coordinates model verification, documentation review and quotation follow-up.
