Part Number:
CPV10-GE-DN2-8 525630Weight:
0.2kgDimensions:
11x7x3.8cmPlace of Origin:
GermanyCertification:
CO,CQDescription:

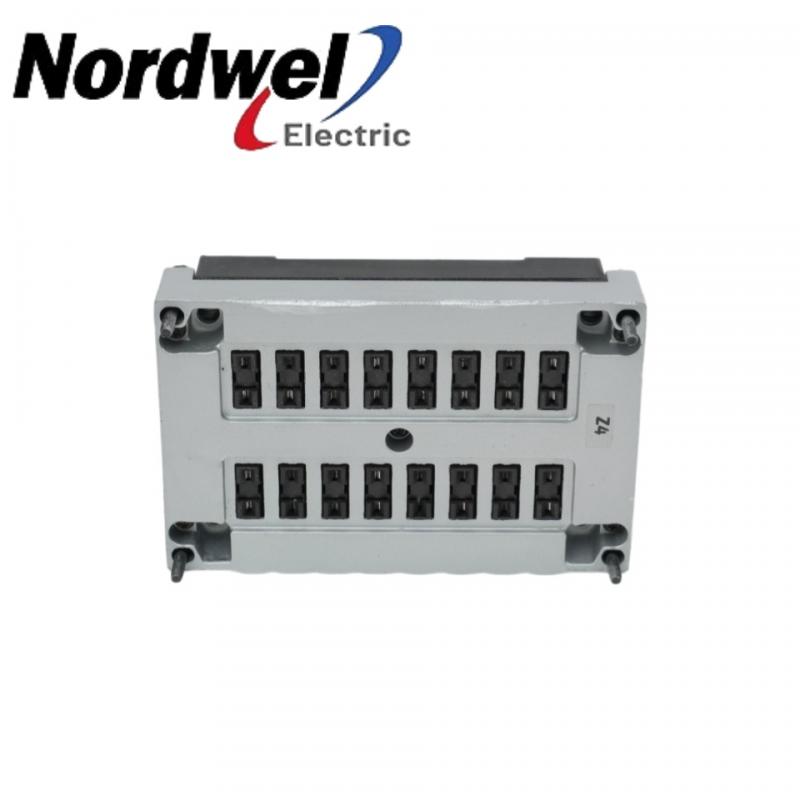

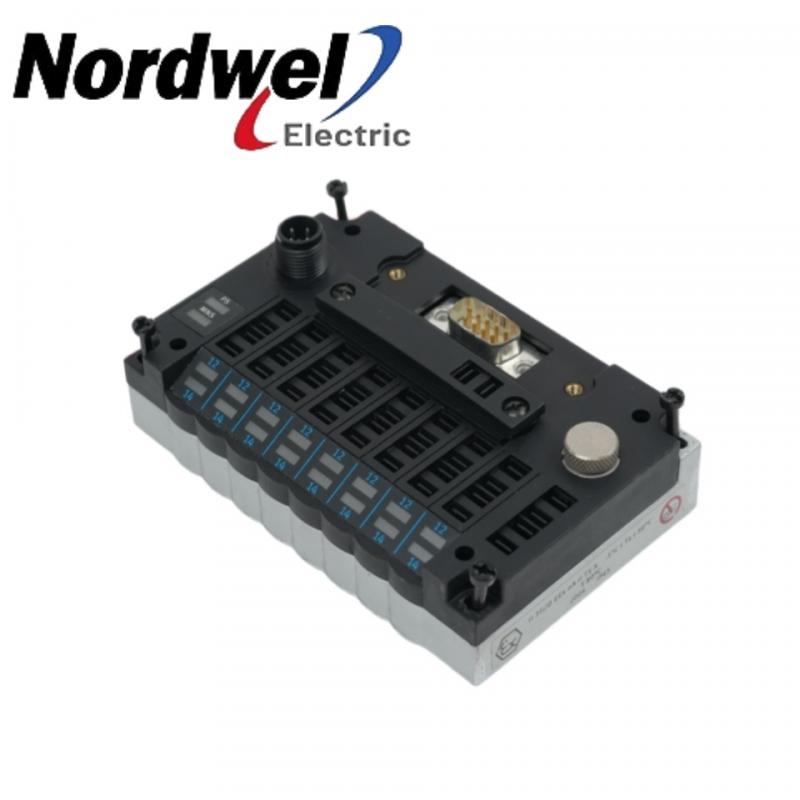

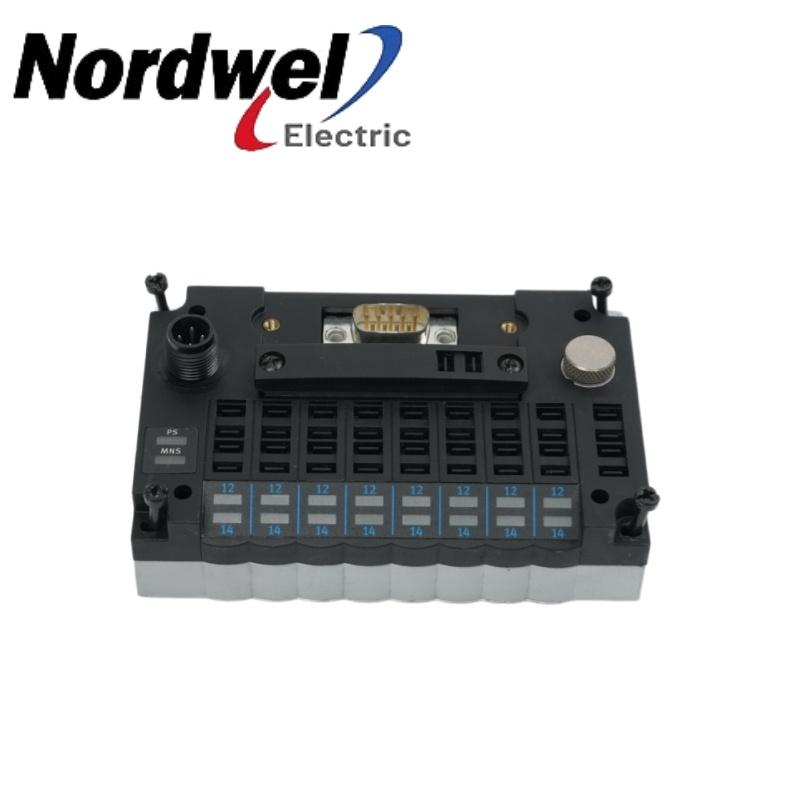

FESTO CPV10-GE-DN2-8 525630 It is a 24V DC device valve island electrical interface.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
FESTO |
|
Part number |
CPV10-GE-DN2-8 525630 |
|
Description |
FESTO CPV10-GE-DN2-8 525630 DN2-8 Electrical Interface |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed CPV10-GE-DN2-8 525630 in stock!!!
Product Description
The Festo CPV10-GE-DN2-8 (Part Number: 525630) is a dedicated electrical interface designed for industrial valve manifold applications. It provides communication and connectivity options, supporting CP string extension functionality to interface with up to 16 inputs and 8 outputs (or 16 valves) directly. For physical integration, the device-specific housing is constructed from aluminum die cast with a PA-reinforced material cover, and utilizes CR and NBR for its sealing materials, ensuring conformity with RoHS environmental regulations
Parameter Information
Maximum number of solenoid coils with string extension：32
Max. number of solenoid coils：16
Polarity protected：for all electrical connections
Additional functions：Condition Counter
Baud rate：125, 250, 500 kBit/s / Adjustment via switch module
Operating voltage range DC：20.4 ... 26.4 V
Maximum number of outputs：8 / (16 solenoid coils eliminated)
Maximum number of inputs：16
Nominal operating voltage DC：24 V
Power failure buffering：20 ms
Residual ripple：4 Vss
Storage temperature：-20 ... 70 °C
Protection class：IP20 / IP65
Ambient temperature：-5 ... 50 °C
Authorization：c UL us - Recognized (OL)
Addressing range：0 ... 63 / Adjustment via switch module
Fieldbus certification：ODVA
Electrical isolation, fieldbus interface：Optocoupler
Bus-specific LED display：MNS: DeviceNet Status
Product-specific LED display：12/14: switching status at valves
FAQ
What is the primary function of the CPV10-GE-DN2-8 525630?
It serves as a centralized DeviceNet fieldbus node and electrical interface that controls and connects CPV10 series valve terminals to a master PLC.
How many digital I/O channels does the CPV10-GE-DN2-8 525630 provide?
It features 16 digital inputs for sensor feedback and 8 digital outputs for valve control.
How can the CPV10-GE-DN2-8 525630 drive up to 16 valves with only 8 outputs?
It utilizes an integrated holding-current reduction feature, allowing its 8 outputs to safely actuate up to 16 single or double-solenoid valve coils.
Application
Packaging & Printing Plants: Controls high-speed labeling machines, carton formers, and sealing lines that require low-latency response.
Automotive Assembly Facilities: Drives pneumatic fixtures and robotic end-effectors while processing 16 dense sensor inputs for position feedback.
Electronics & Semiconductor Factories: Used in PCB handling systems and micro-assembly units, benefiting from its low-heat emission (via holding-current reduction).
Logistics & Material Handling Hubs: Manages sorting cylinders, gates, and conveyor diverters to simplify field wiring across multi-station lines.
|
