Brand:
EmersonItem NO.:
38B6041X152Part Number:
38B6041X152Weight:
Dimensions:
Manufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

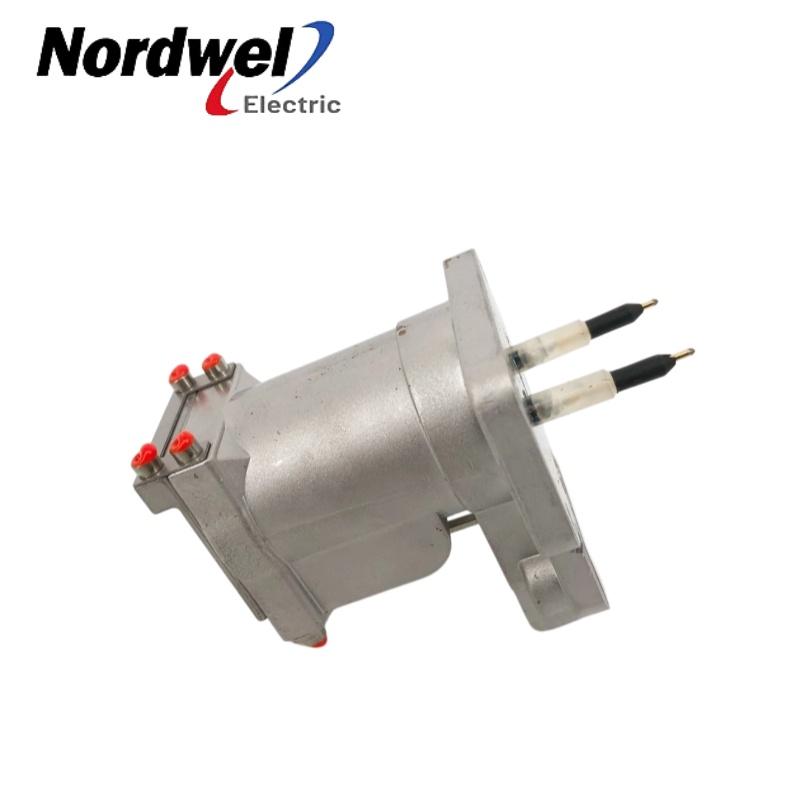

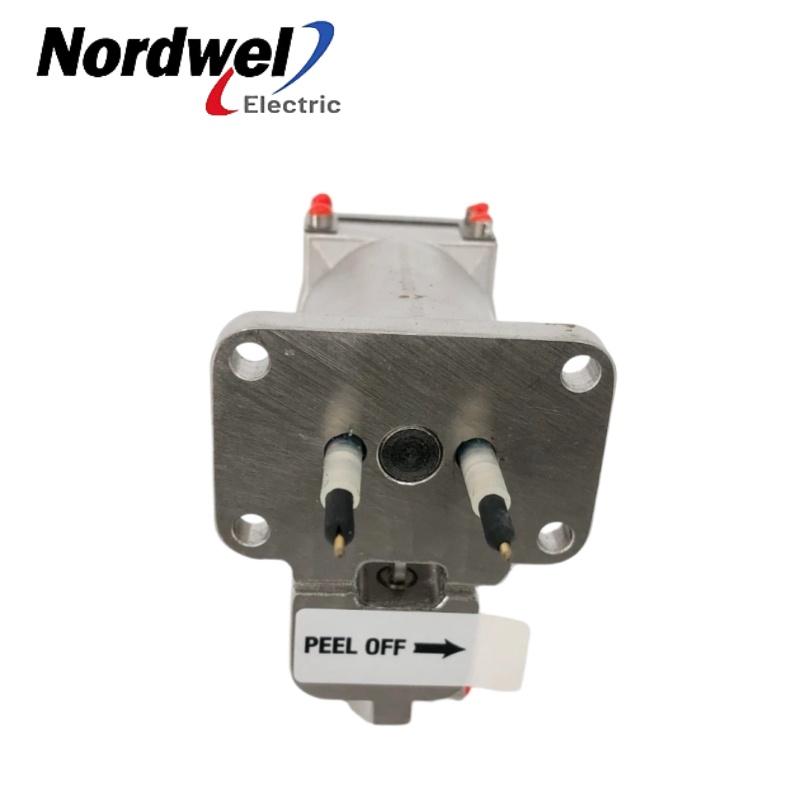

I/P Converter Kit
Product Information
|
Model number |
38B6041X152 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Specifications
Standard I/P (Current-to-Pressure) converter kit for Fisher FIELDVUE digital valve controllers
Converts the electrical drive signal from the positioner’s printed wiring board into a proportional pneumatic output pressure to stroke the actuator
FIELDVUE DVC6200, DVC6200p, DVC6005, and DVC7K-H series digital valve controllers (as a recommended spare part)
Drive signal derived from the 4–20 mA loop input (controlled by the positioner microprocessor)
Internal coil resistance: 150 Ω to 250 Ω nominal at 20 °C
Operating voltage: supplied by the positioner’s internal circuitry (loop-powered)
Nominal output pressure range: 0.4 to 2.0 bar (6 to 30 psig) as an intermediate signal to the relay
Maximum supply pressure: 10.0 bar (145 psig)
Steady-state air consumption: ≤ 0.28 to 0.36 m³/hr (10 to 13 scfh) at 1.4 bar (20 psig) supply
Degree of protection: IP65
Operating temperature range: –10 °C to +60 °C (standard version with nitrile elastomers)
Storage temperature: –40 °C to +85 °C (recommended)
Relative humidity: 20% to 80%, non-condensing
Dimensions: approximately 7 x 4.3 x 5.8 cm (2.76 x 1.69 x 2.28 in)
Weight: approximately 0.22 kg (0.48 lbs)
Standard version (38B6041X152): uses nitrile butadiene rubber (NBR) O-rings and seals
Extreme‑temperature version (38B6041X132): uses fluorosilicone elastomers for operation down to –52 °C and up to +125 °C
I/P converter core assembly
Protective cap/shroud
Manifold O-rings and seal screen (secondary filter for supply medium)
Dedicated mounting screws (socket‑head)
Use only genuine Fisher replacement parts to maintain performance, approvals, and warranty
After installing a new I/P converter, perform a travel calibration (auto or touch‑up) to preserve accuracy specifications
The integral seal screen in the supply port should be inspected and replaced as needed (refer to the instruction manual for maintenance intervals)
Designed to meet relevant Emerson/Fisher quality and performance standards for FIELDVUE instruments (CE marking and hazardous area approvals depend on the complete controller assembly)
|
