Part Number:
FBM216B P0927AJWeight:
0.32kgDimensions:
4.5cmX11cmX11.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

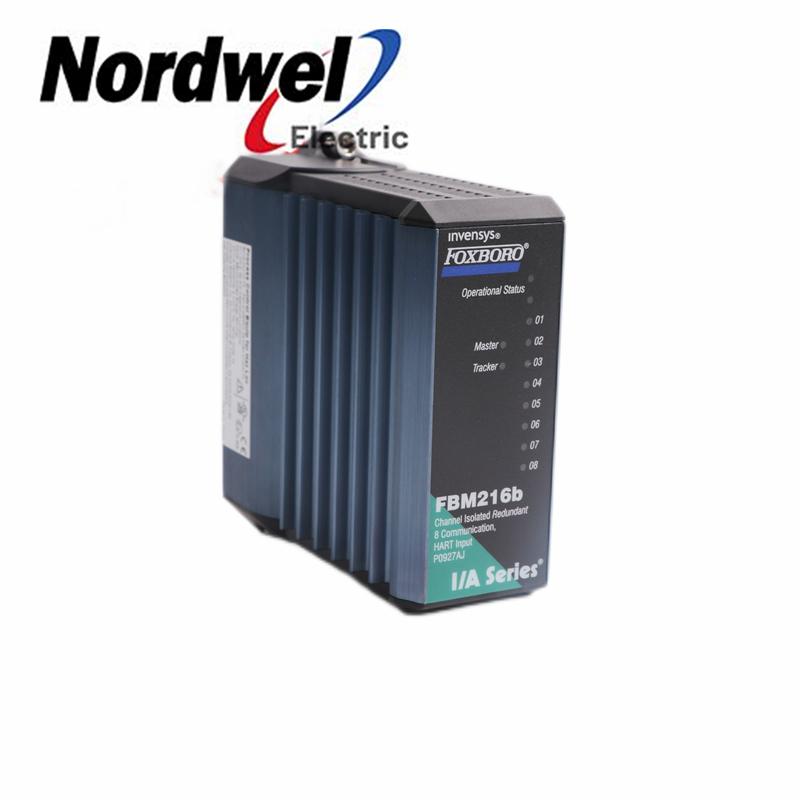

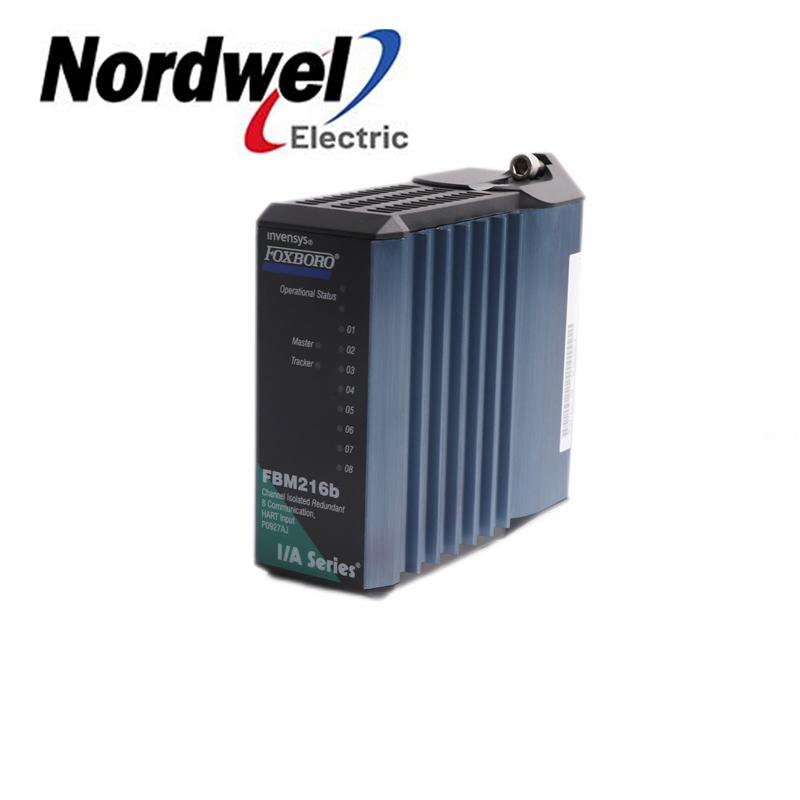

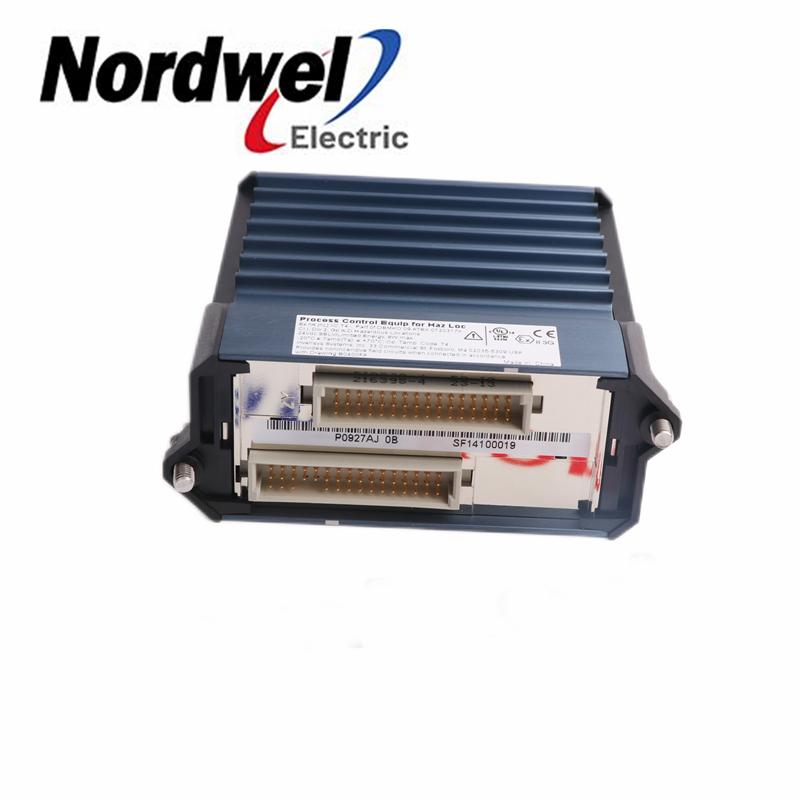

Foxboro FBM216B P0927AJ Redundant HART Communication Input Module
Part Number: FBM216B P0927AJ
Manufacturer: Foxboro/Schneider Electric
Series: I/A Series
Status: In stock
Full description:Foxboro FBM216B P0927AJ Redundant HART Communication Input Module
The FBM216b HART Communication Redundant Input Interface Module contains
eight individually isolated input channels. It supports any mix of standard 4 to 20 mA
devices and HART devices (the signals are electrically compatible).
A pair of modules combines to provide redundancy at the fieldbus module (FBM)
level, with field inputs wired to one common termination assembly (see Figure 1, page
4). In this configuration, one FBM216b is the Master, and the other is the Tracker.
The FBM216b can serve as a HARTcommunications field device host, enabling
Foxboro™ DCS to request and receive two digital messages per second from the field
device. The message pass-through capability can be used to support HART universal,
common practice, and device-specific commands, but it cannot support the burst
communication mode. These commands are implemented using the Foxboro DCS
Field Device Expert for HART. For details, see Field Device Expert for HART Devices
