Payment:
T/TPart Number:
FBM242 P0916TAWeight:
0.4kgDimensions:
8x6x4cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Parameters

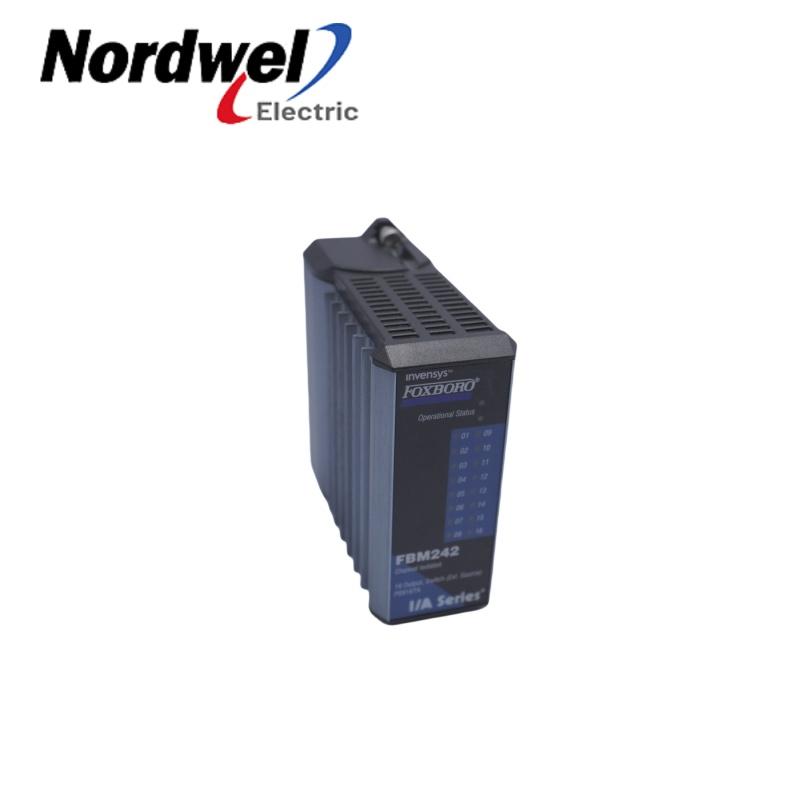

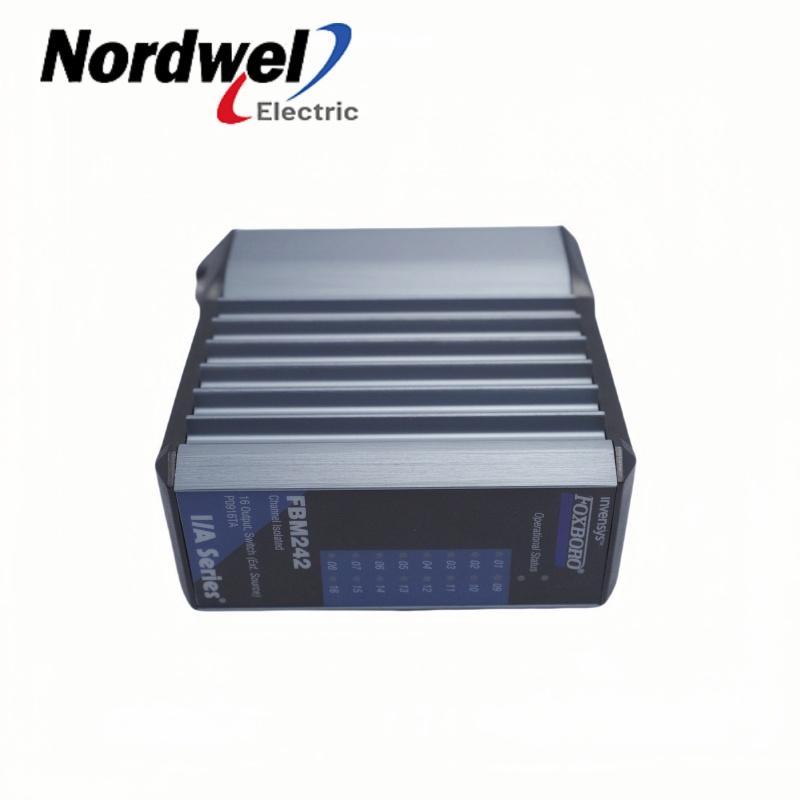

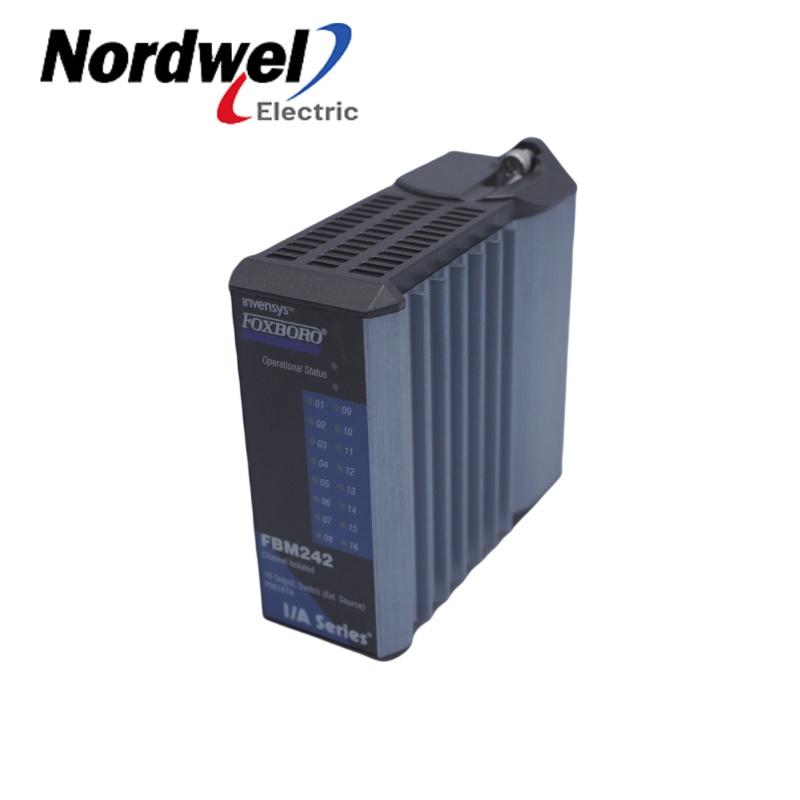

Model: FBM242 P0916TA
Brand: Foxboro
Condition: Brand New and Origin
Output channels: 16 isolated channels.
Application voltage: 15 to 60V DC, 60V maximum.
Load current: 2.25A maximum per channel.
On-state voltage drop: 0.2V maximum at 2.25A.
Off-state leakage current: 0.1mA maximum.
Input voltage range: 24V DC +5%, -10%.
Power consumption: 3W maximum at 24V DC.
Fieldbus communication: Connects to control processor or fieldbus communication module via redundant 2Mbps module fieldbus.
Jenny Chan
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Multi-voltage output support: Supports 15 to 60V DC, 120V AC / 125V DC, 240V Discrete output signals of various voltages such as AC can meet the power supply and signal requirements of different field equipment.
Good electrical isolation performance: Each input and output is electrically isolated, and group isolation is also available when used with external excitation, which can effectively prevent signal interference and fault propagation, and improve the stability and reliability of the system.
Related Concerns
Q: Can this module be directly connected to control systems of other brands?
A: FOXBORO FBM242 P0916TA is specially designed for FOXBORO control systems and usually cannot be directly connected to control systems of other brands because different brands of control systems have differences in communication protocols, electrical characteristics, etc., which may cause communication failures or equipment damage.
Q: How to determine whether the module is working properly?
A: You can preliminarily judge the operating status of the module and the discrete status of each output point by observing the light-emitting diode (LED) on the front of the module. In addition, you can also use the diagnostic tools or software of the FOXBORO system to monitor and diagnose the module online to check whether there are alarm messages or error codes.
1. Is your product new or refurbished?
A: Yes, All our products are original new with one year warranty.
2. Where is the country of origin?
A: The country of Origin is : USA
3. How long is your warranty?
A: We gurrantee all products have 1 year warranty
4. Do you have datasheet?
A: Yes. Do you need it for technical evaluation?
|
