Payment:
T/TPart Number:
FCM10EF P0916CPWeight:
0.32kgDimensions:
4.5x10x12.5cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Module
Specifications

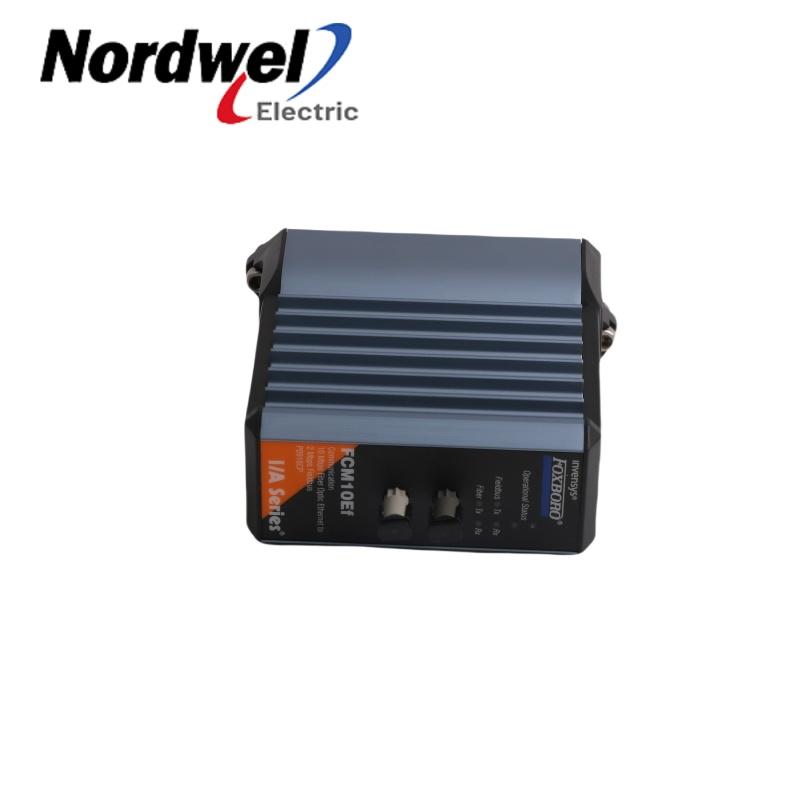

Model: FCM10EF P0916CP
Brand: Foxboro
Condition: Brand New and Origin
Communication rate: 10Mbps Ethernet relay fieldbus.
Transmission distance: The signal transmission distance between FCM10Ef module and multi-port fiber converter (hub) can reach 2 km.
Number of channels: Up to six groups of baseplate-mounted FCM10Ef modules and FBMs can be connected to each optional redundant multi-port fiber converter (hub).
Contact <<Jenny Chan>> to Get Quotation
E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
Feature
Strong anti-interference ability: Not affected by electrical noise (EMI, RFI and lightning), fiber optic cable provides a universal, highly reliable means of extended signal communication. It can be used in areas with rotating machinery, arc welding machines, etc. It can also be installed in cable trays with high-voltage power lines or in outdoor areas with lightning hazards. Its electrical isolation characteristics also provide protection against voltage differences and ground loops.
Easy to customize and expand: The FCM10Ef module provides an extended network, is easy to customize, and provides a larger overall wiring distance in a fiber optic network. This configuration is very suitable for sites that need to disperse FBM groups over longer distances.
Related Concerns
Signal interface: Fiber optic cable is used as the communication medium. Multimode gradient refractive index glass fiber with a core diameter of 62.5 microns, a cladding thickness of 125 microns, and a numerical aperture of 0.275NA is recommended.
Redundancy support: To support redundancy, each FBM group must use a pair of FCM10Ef modules; in a non-redundant configuration, each group only needs one FCM10Ef module.
Payment: T/T
Service: 24 hours for a whole day
Terms of payment: T/T. RMB (CNY) support
Shipping Method: DHL\UPS\Fedex\EMS\Others
|
