Part Number:
DS3820PSCC1D1BWeight:
5.56kgDimensions:
19.5cmX28.5cmX29cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:
General Electric/GE Fanuc DS3820PSCC1D1B POWER SUPPLY Unit
|
Manufacturer: |
General Electric |
|
Part Number: |
DS3820PSCC1D1B |
|
Series: |
Mark IV |
|
Full Description: |
General Electric DS3820PSCC1D1B POWER SUPPLY Unit
|
|
Status: |
In stock |
| Warranty | 12 Months |
DS3820PSCC1D1B is a power supply unit from GE
The DS3820PSCC1D1B is built by GE as a power supply unit for the Mark IV series. The MKIV manages steam/gas
turbine systems and is built using integrated microprocessors which use distributed control functions to take care of
such things as start-up and shut down, speed control, and temperature control. It also protects the turbine from
issues like loss of flame, high pressure, and vibration.

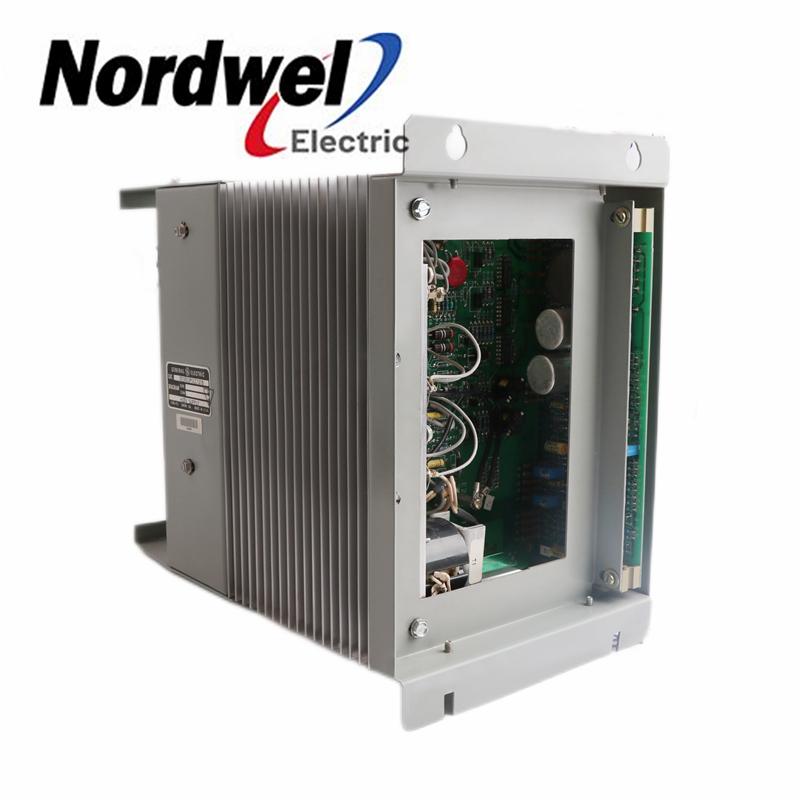

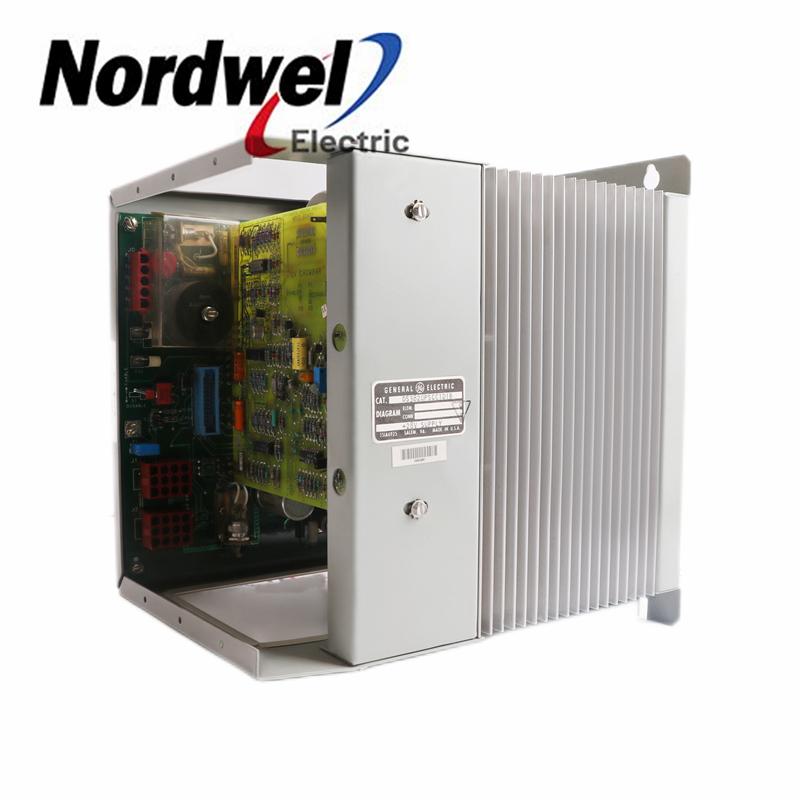

The DS3820PSCC1D1B is a modification of several DS3800 boards. It is built within a housing with multiple
openings. These openings serve two purposes: to give access to the components within the frame and to allow
for air circulation and heat dissipation. The frame is drilled at several points to allow for direct mounting of PCBs
to the inside of the housing. This is accomplished using metal screws. In some cases, nylon spacers are employed
to maintain an air gap between the PCB and the housing. The housing has several flanges (some that bend inward
and some outward) that have screw mounts and tabs cut out of the metal to allow for mounting to other modules.
The DS3820PSCC1D1B includes components mounted on PCBs and some components that are freestanding. The
module has two terminal strips that do not belong to any printed circuit board. Terminal strips are useful for neatly
connecting multiple circuits together by using the screw-type connections on the component’s bar. Other
components used in the DS3820PSCC1D1B include a very large capacitor that is reinforced by a collar clamp,
smaller polyester vinyl capacitors and capacitors of other material, potentiometers, LEDs, thermistors, amplifiers,
transistors, and spare PTH.
