Part Number:
10006/2/1Weight:
0.25kgDimensions:
4.1cm*18.6cm*12.9cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

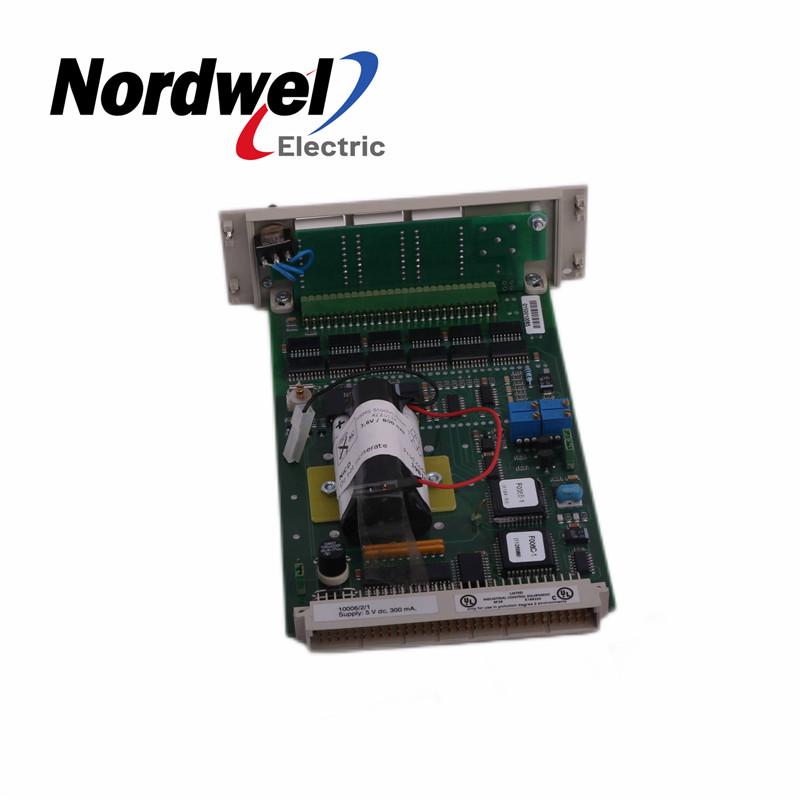

HONEYWELL 10006/2/1 Diagnostic and battery module(DBM)
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
10006/2/1 |
|
Description: |
HONEYWELL 10006/2/1 |
|
Full Description: |
HONEYWELL 10006/2/1 Diagnostic and battery module
|
|
Status: |
In stock |
| Warranty | 12 Months |
The diagnostic and battery module (DBM) 10006/2/1 provides a
low-cost interface to the user for diagnosing the FSC system.

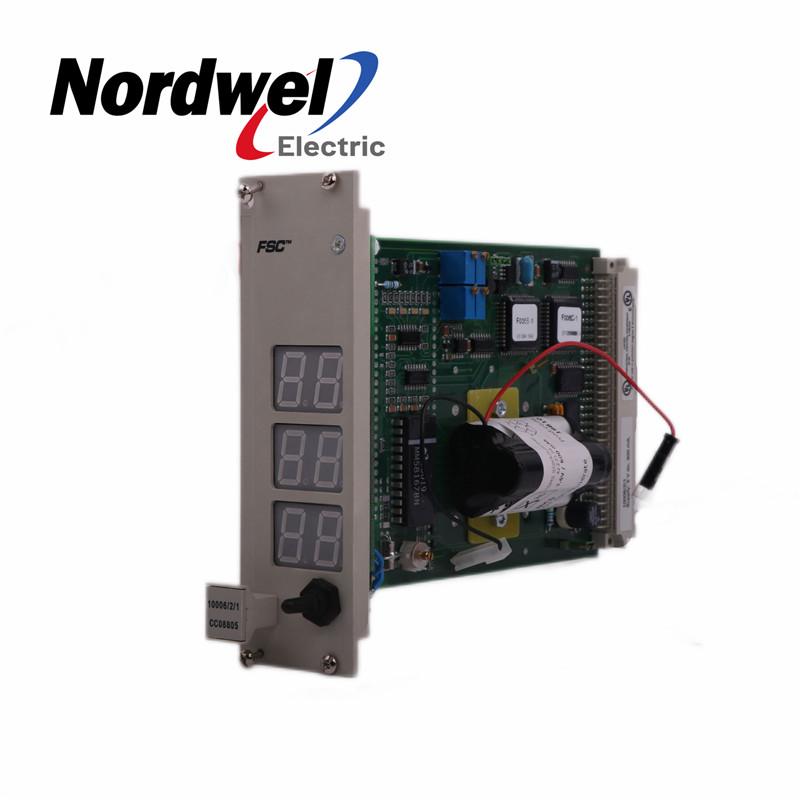

The displays on the front of the module are used to display messages
about the faults found by the diagnostic routines. The message gives
type, rack and position number of the module found to be faulty.
In addition to the diagnostic messages, the DBM module is provided
with a real-time clock function which gives the current date and time.
Both date and time can be displayed on the front of the DBM module
and can be read by the application program.
The 10006/2/1 module has the following specifications:
General Type number: 10006/2/1 08801*
Approvals: CE, TÜV, UL
Software versions: ≥ 2.90
Space requirements: 8 TE, 3 HE (= 8 HP, 3U)
Time drift: < 1 sec/day
Power Power requirements: 5 Vdc 300 mA
Ripple content: < 50 mV p-p
Batteries Back-up capacity: 0.5 Ah
