Item NO.:
8C-PDISA1 51454471-2Part Number:
8C-PDISA1 51454471-276Weight:
0.3kgDimensions:
6x15.2x14.3cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

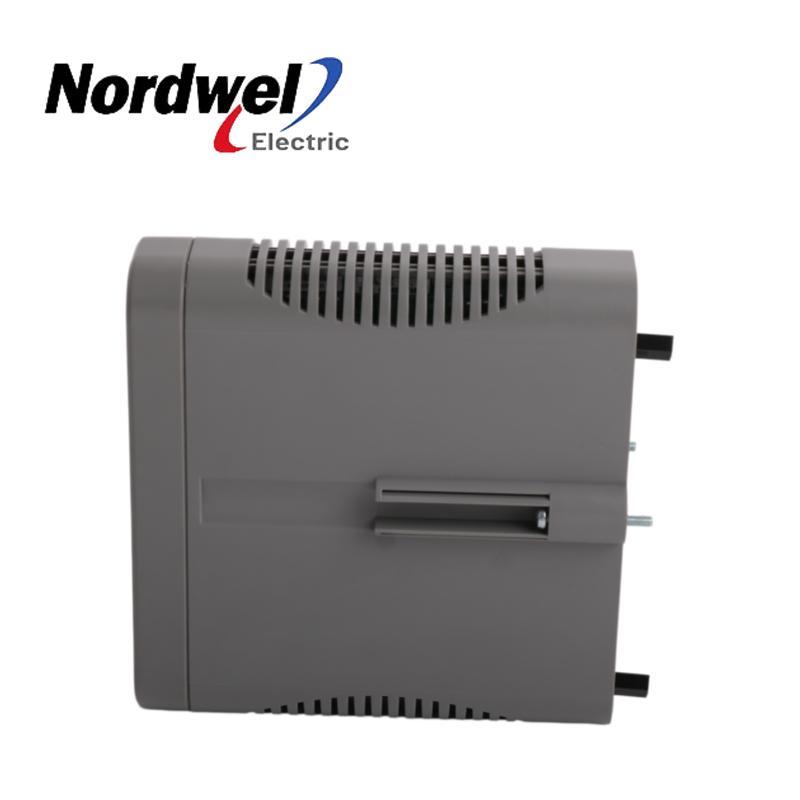

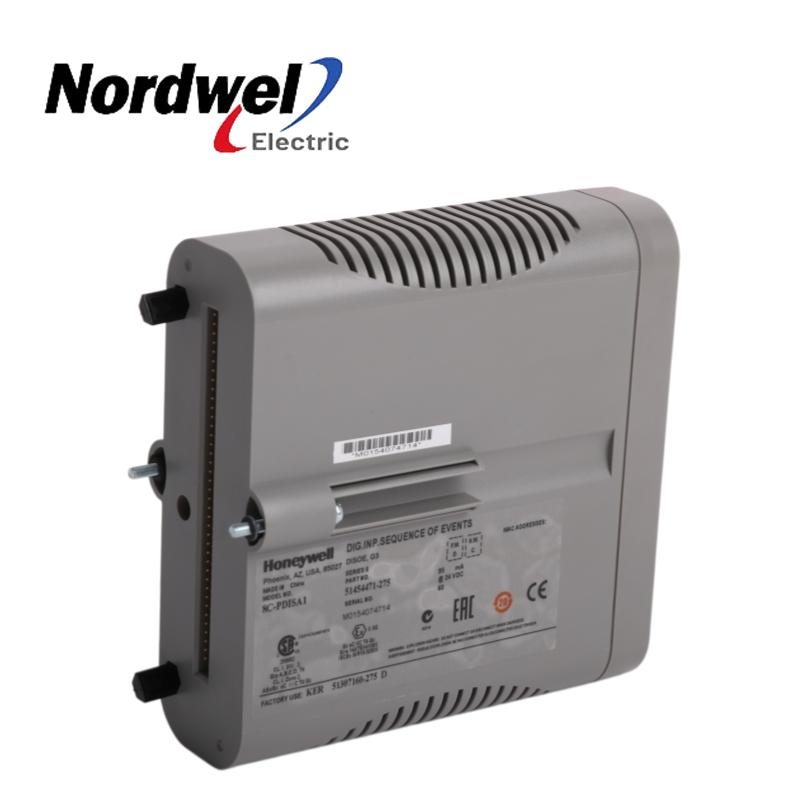

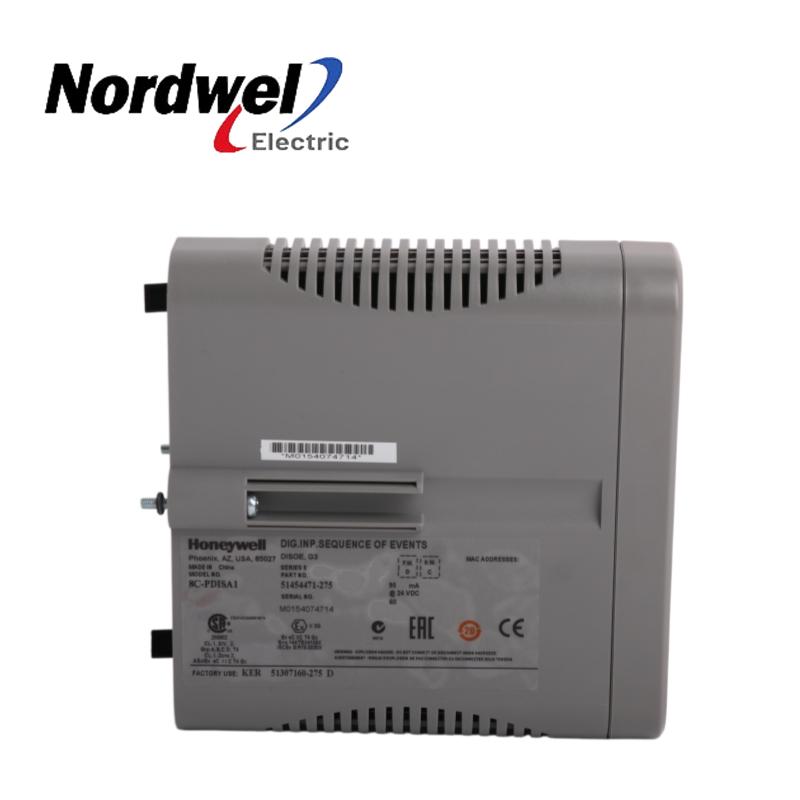

Digital Input Sequence of Events
Product Information
|
Model Number: |
8C-PDISA1 51454471-276 |
|
Description: |
Digital Input Sequence of Events |
|
Condition: |
100% Original |
|
manufacturer: |
HONEYWELL |
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Installation & Troubleshooting FAQ
Q1: How do I install the Honeywell 8C-PDISA1 51454471-276 module correctly?
A1: Install the Honeywell 8C-PDISA1 51454471-276 vertically on the designated Series 8 IOTA assembly. Ensure the IOM is firmly plugged into the IOTA without forcing the connector. The vertical mounting design improves cabinet airflow and heat dissipation, which is important in high-density control cabinets. Use detachable terminal blocks for easier field wiring and maintenance.
Q2: Why is the module not detecting field input signals after installation?
A2: Verify that the field device wiring is connected to the correct terminal points and that the module receives proper 24VDC input signals. Check for loose detachable terminals, incorrect polarity, or missing field power distribution from the IOTA. Also confirm that the IOM is fully seated into the IOTA connector and recognized by the control system configuration.
Q3: What should I do if the module overheats inside the cabinet?
A3: Ensure sufficient cabinet ventilation and maintain the recommended vertical mounting orientation. The Series 8 tilted housing is designed specifically for improved thermal management. Avoid blocking airflow around the module and verify cabinet ambient temperature remains within Honeywell operating specifications. Conformal coated versions are recommended for harsh environments with moisture, dust, or chemicals.
Q4: How can I troubleshoot intermittent digital input failures?
A4: Inspect field wiring for loose connections, electrical noise, or damaged insulation. Use shielded cables where possible and confirm that field devices provide stable 24VDC signals. Since Series 8 modules include short-circuit protection, repeated channel faults may indicate external wiring issues rather than module failure. Also check for excessive cabinet vibration or improper grounding.
Q5: Can redundancy be added to the 8C-PDISA1 module?
A5: Yes. Series 8 architecture supports redundancy directly on the IOTA by installing a second IOM on the same assembly. No external redundancy cables or additional switching devices are required. After installation, verify both modules are properly recognized in the control system diagnostics and that redundancy status indicators show normal operation.
