Part Number:
MU-TSDM02 51303932-277Weight:
0.3kgDimensions:
15.1cmX12cmX8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

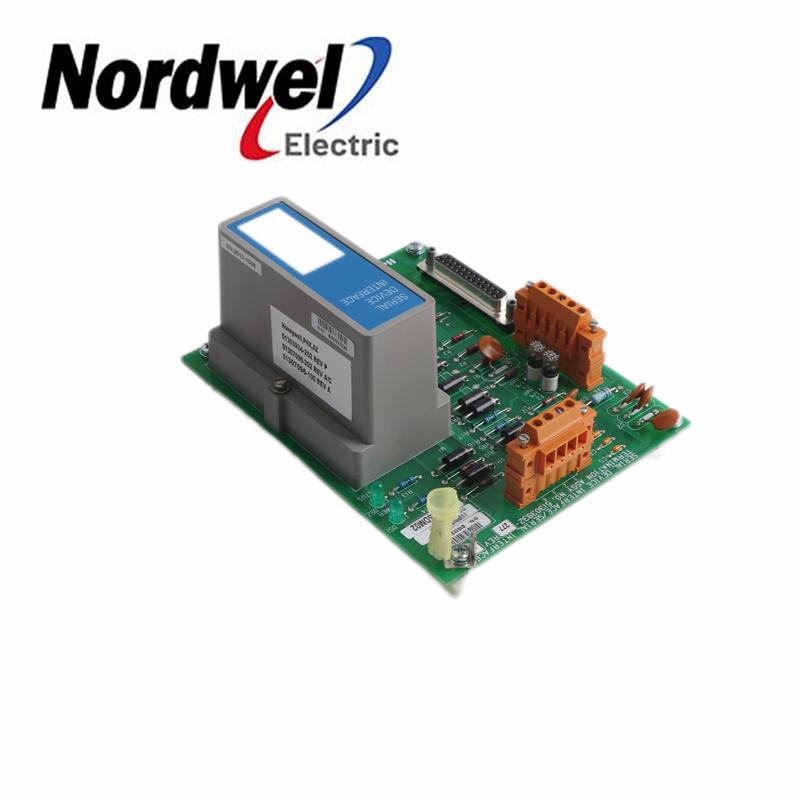

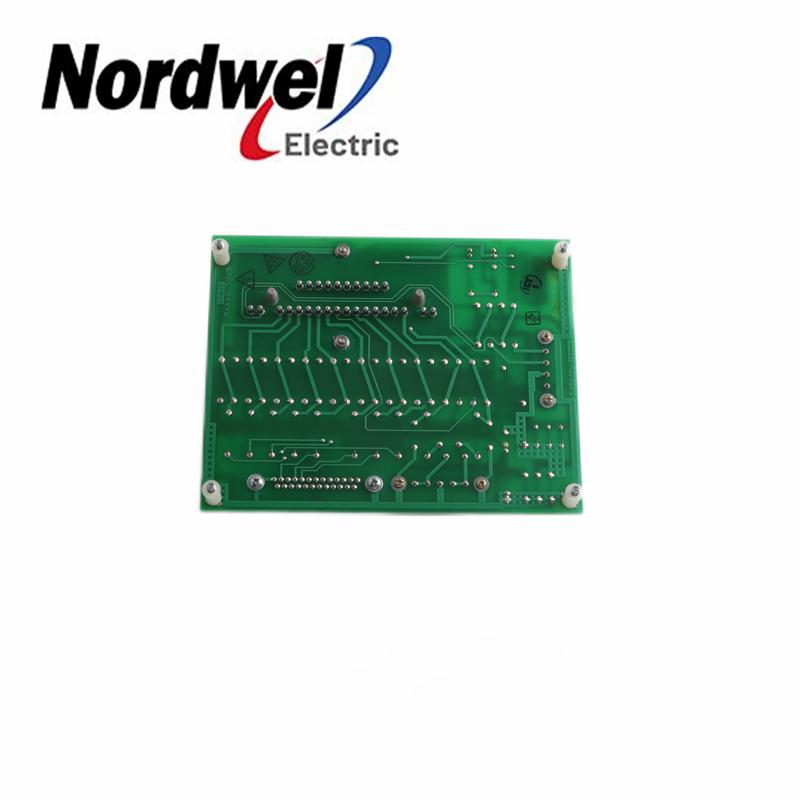

HONEYWELL MU-TSDM02 51303932-277 Serial Device Interface
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
MU-TSDM02 51303932-277 |
|
Description: |
HONEYWELL MU-TSDM02 51303932-277 |
|
Full Description: |
HONEYWELL MU-TSDM02 51303932-277 Serial Device Interface
|
|
Status: |
In stock |
| Warranty | 12 Months |
Serial Device Interface - Manual/Auto Station
Parameter Specification
Physical Interface EIA-485 Multidrop using 5-terminal compression connector
Device Supported Honeywell Manual/Auto Station
Lines Supported (EIA-485) R (Data+), Data+, Shield, Data-, R (Data-)
Full Modem Support No, Multidrop is not a modem interface
Distance, Power Adapter to FTA
• Internal cable within PM/APM/HPM cabinet or
• External cable 300 m (1000 ft.) maximum
EIA-485 Cable Length, FTA to Device 1.2 km (4000 ft.) with appropriate cable*
Surge withstand capability ANSI/IEEE C37.90.1-1978
ESD Protection IEC 801.2
Number of Manual/Auto Stations
• 2 FTAs per SDI IOP
• 4 Manual/Auto Stations per FTA
Baud Rate 19.2 Kbps
Transmission Mode Asynchronous, Bit Serial
Data Transfer Bidirectional, Half-Duplex
Message Validity
• Single-bit character parity
• Message block checksum
Tag ID Downloaded 8 Characters
PV Range EUHI and EULO downloaded
Input Scan Rate Four updates per second per point
