Part Number:
IC670MDL930Weight:
0.24kgDimensions:
5.3x8.5x8.1cmManufacture Year:
2021Place of Origin:
United StatesCertification:
CO,CQDescription:

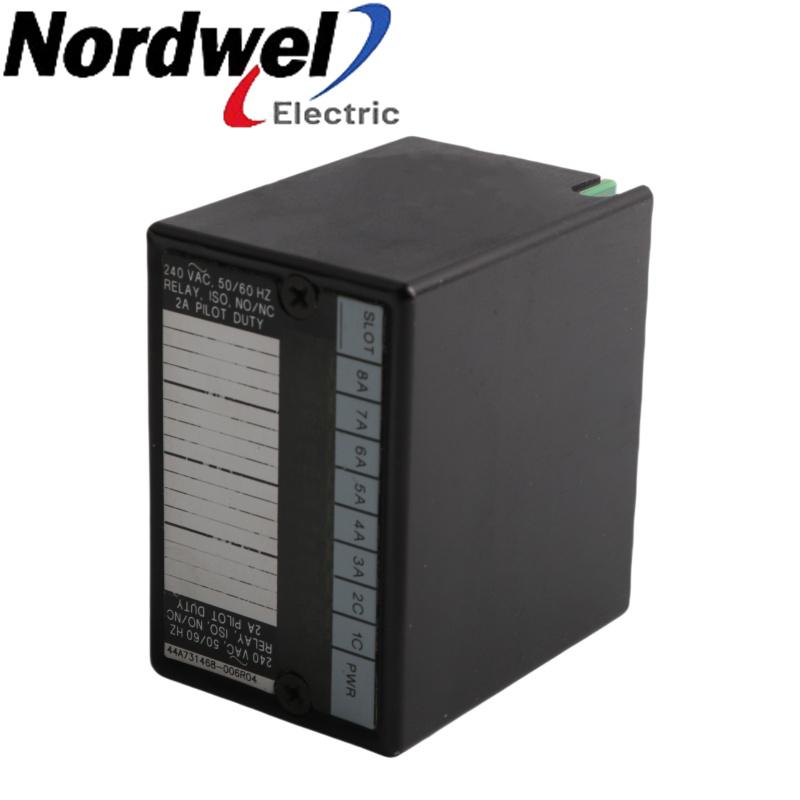

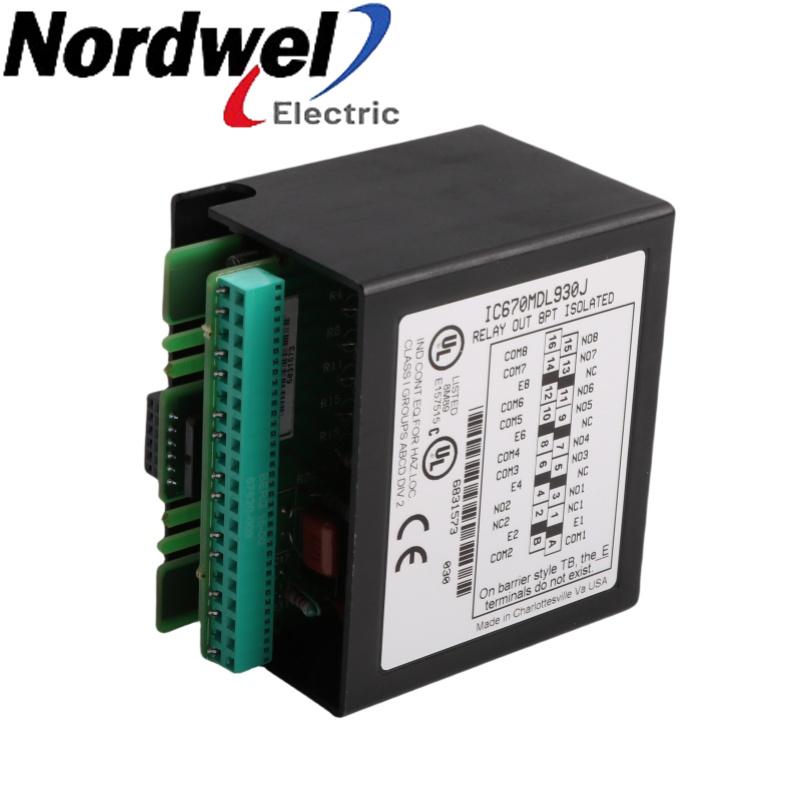

IC670MDL930 GE Relay output module
Manufacturer
Part number
IC670MDL930
Description
Relay output module
GE
Original new and factory-sealed IC670ALG630 in stock!!!
The IC670MDL930 is a relay output module from the Field control module series of GE Fanuc. This module comes with individually isolated channels, specifically, Six (6) Form A or Normally Open (N.O.) contacts and Two (2) Form C Normally Open (N.O) and Normally Closed (N.C.) contact outputs. Each output contacts are rated 5VDC / 24 VDC / 125 DC or and 120 / 240 VAC nominal voltages with actual voltage ranges of 0-130 VDC, 0-265 VAC, 47-63 Hz and the maximum load current per module is 16 A. The module has a fixed coil, moving armature relay type and has current consumption of 313 mA, maximum. The module comes with typical rating of isolation between input to logic, user input to frame ground and group to group isolation specifically, 250 VAC continuous, 1500 VAC for 1 minute. The module maximum current for resistive loads rated 2.0 Amps from 5 to 265VAC; 2.0 Amps from 5 to 30VDC and 0.2 Amps from 31 to 125VDC while the maximum inrush current is 5 A for 20 ms and maximum load current of 10 mA per input. The module’s response time for ON and Off signal transition are typical which is maximum of 10 ms while the maximum switching frequency of each channel is 20 cycles per minute if used with an inductive load. The contact outputs of the module are made of Silver Alloy with contact resistance of 0.2 ohms at 1 A at 6 VDC. Each contact has operational life of 20 x 10^6 operations (mechanical) and 10^5 operations at rated resistive load (electrical).
