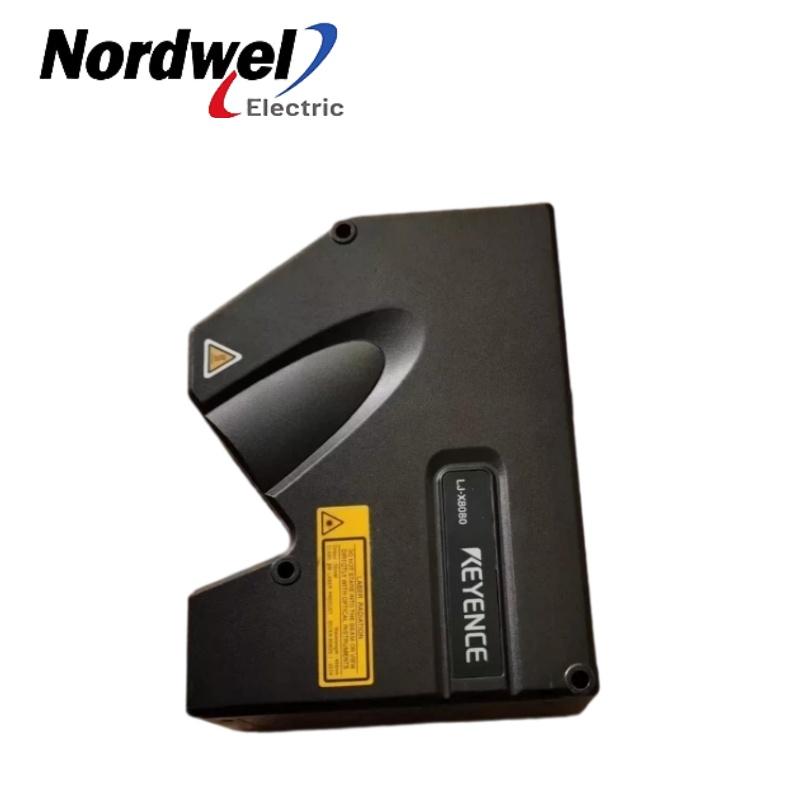

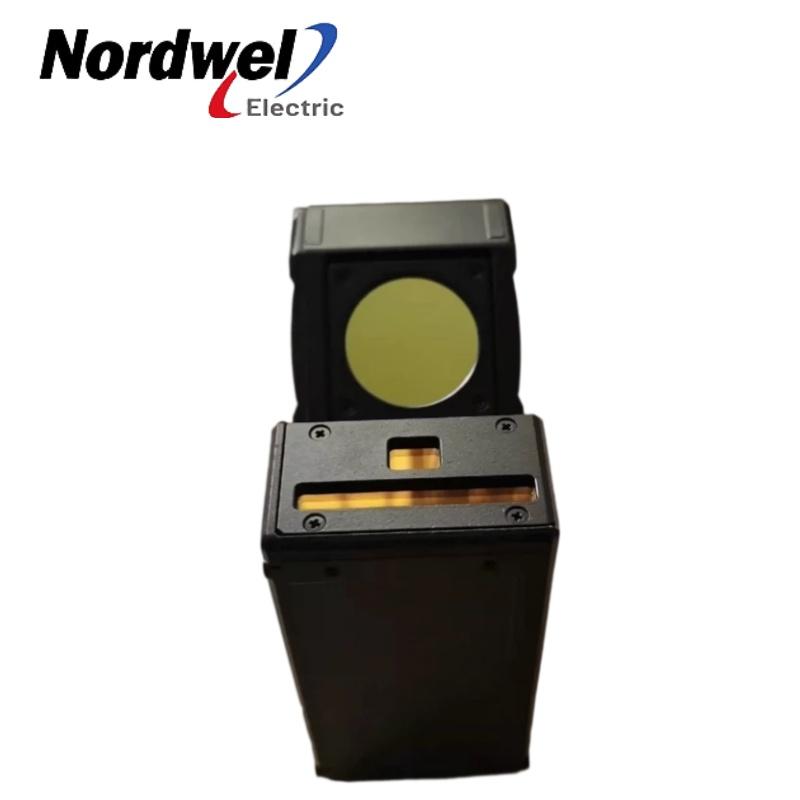

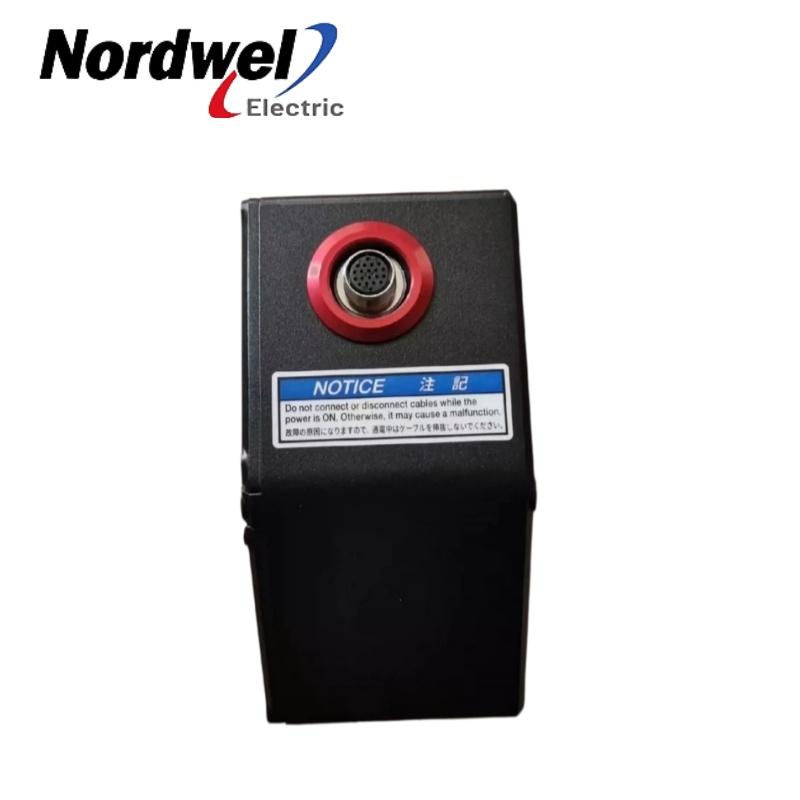

KEYENCE identifies LJ-X8080 as a sensor head in the LJ-X8000 Series, with a 73 mm reference distance and 3200 profile data points.
Brand:
OthersItem NO.:
LJ-X8080Goods Stock:
1Part Number:
LJ-X8080Description:
KEYENCE LJ-X8080 sensor head for the LJ-X8000 Series 2D/3D Laser Profiler; 73 mm reference distance and 3200 profile data points.KEYENCE lists LJ-X8080 as a sensor head for the LJ-X8000 Series 2D/3D Laser Profiler. Its official model page specifies a 73 mm reference distance, a ±20.5 mm Z-axis measurement range and 3200 profile data points.
| Reference distance | 73 mm |
|---|---|
| Z-axis range | ±20.5 mm (F.S. 41 mm) |
| X-axis width | 30 mm near / 35 mm reference / 39 mm far |
| Light source | 405 nm visible blue semiconductor laser |
| Profile data interval | 12.5 µm on the X-axis |
| Profile data count | 3200 points |
| Repeatability | Z-axis 0.5 µm; X-axis 1 µm under KEYENCE test conditions |
| Ambient temperature | 0 to +45°C; mount to a metal plate |
| Weight | Approx. 1100 g |
8 mm X-axis width sensor head.
16 mm X-axis width sensor head.
80 mm X-axis width sensor head.
320 mm X-axis width sensor head.
720 mm X-axis width sensor head.
Standard 2D/3D controller.
Standard 2D controller.
Dedicated LJ-X/LJ-V connection controller.
Raw data output controller.
ABB AC 800M controller and S800 I/O communication references.
Bently Nevada 3500 monitoring and protection system module references.
Emerson DeltaV I/O and control-system module references.
Siemens SIMATIC distributed I/O and industrial Ethernet component references.
Allen-Bradley CompactLogix, ControlLogix and distributed I/O references.
GE PACSystems and Series 90-30 analog I/O module references.
Honeywell controller, I/O and burner-control component references.
ICS Triplex and Triconex safety-system module references.
Match the complete designation, KEYENCE nameplate and installed system record.
KEYENCE lists it in the LJ-X8000 Series 2D/3D Laser Profiler lineup.
The official model page states 73 mm.
Provide the installed controller model and complete configuration.
Confirm metal-plate mounting, cable connection, temperature and enclosure requirements.
Not automatically. Measurement ranges and system requirements differ.
Send model, quantity, destination, nameplate, controller, cables, software context and schedule.
