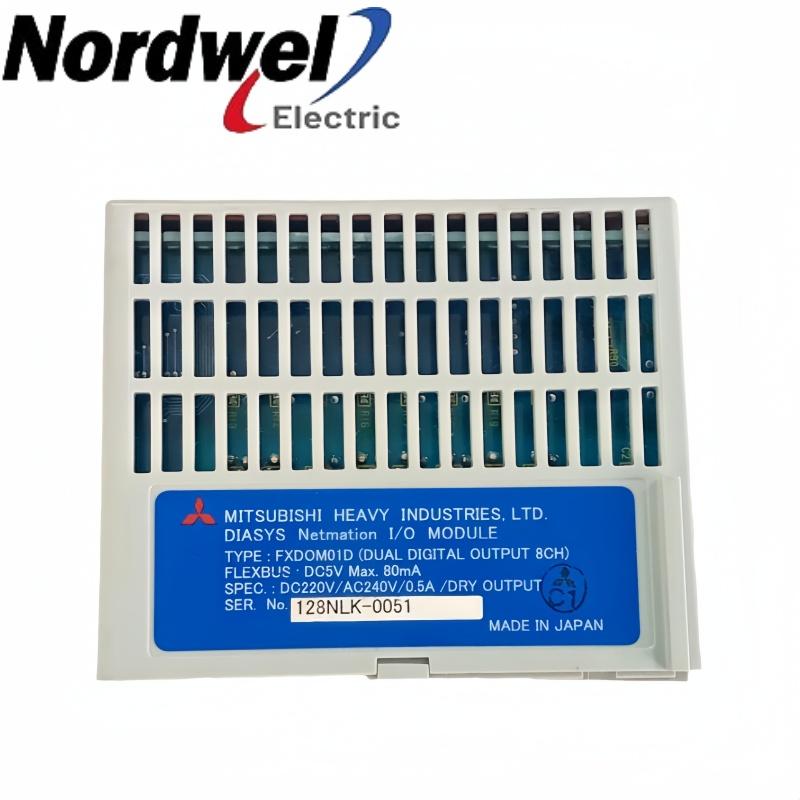

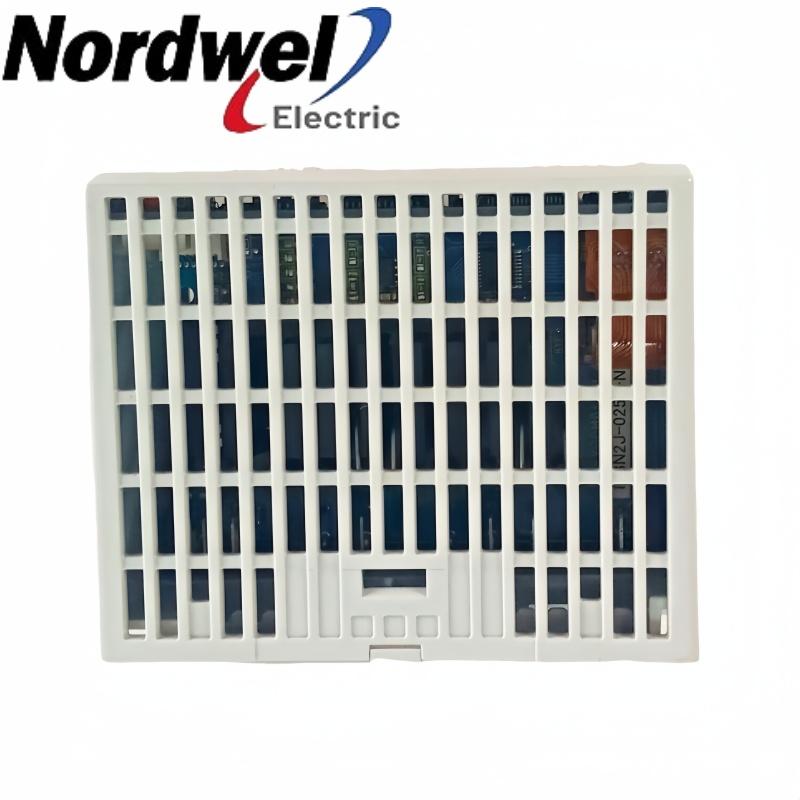

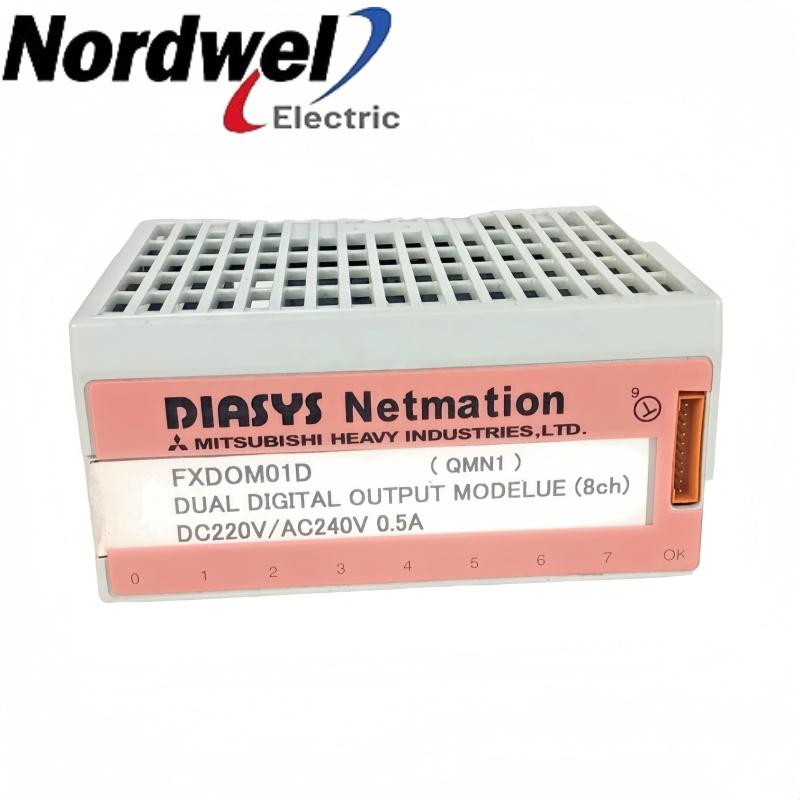

An eight-output digital-output module with individually isolated normally open PhotoMOS relay outputs and documented diagnostics.
Brand:
OthersGoods Stock:
1Part Number:
FXDOM01Dimensions:
75 × 46 × 94 mmDescription:
8-output digital output module with individually isolated normally open PhotoMOS relay contacts.FXDOM01 is an eight-output digital-output module documented with individually isolated normally open PhotoMOS relay outputs and module diagnostics.
| Outputs | 8 |
|---|---|
| Isolation | Individual opto-isolation |
| Contact | Normally open PhotoMOS relay |
| Output leakage | Maximum 10 µA |
| ON resistance | Maximum 3.2 Ω |
| Supply | 24 V DC ±10%, less than 40 mA; 5 V bus, less than 80 mA |
| Dimensions | 75 D × 46 H × 94 W mm |
Manufacturer document CGS-N2501-E-01.
Check the documented supply and environmental limits before installation.
Confirm the installed assembly before release.
Final selection requires the exact model and site wiring record.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.
Tiffany-verified targetIt is an eight-output digital-output module in the DIASYS Netmation family.
The manufacturer specification lists eight digital outputs.
Yes. Each output is individually opto-isolated.
The outputs use normally open PhotoMOS relay contacts.
The published 0.5 A rating depends on the compatible terminal-base arrangement and output-voltage class; confirm the installed arrangement.
The published maximum is 10 µA.
The published maximum is 3.2 Ω.
Watchdog timer, low power-supply voltage and bus time-out diagnostics are listed.
One green/red status indicator and eight yellow output indicators are documented.
The published range is 0 to 55 °C and 35 to 95% RH without condensation.
