Part Number:
D-35614 PKR 251Weight:
0.65 kgDimensions:
21.3 x 22 x 13 cmManufacture Year:
2022Place of Origin:
USACertification:
CO,CQDescription:
VACUUM VALVETechnical Specifications for D-35614 PKR 251
|
|
|
|
Origin |
USA |
|
Status |
Brand New In Stock |
|
Year of Production |
2020-2022 available |
|
Shipment |
From Xiamen, China to Worldwide |

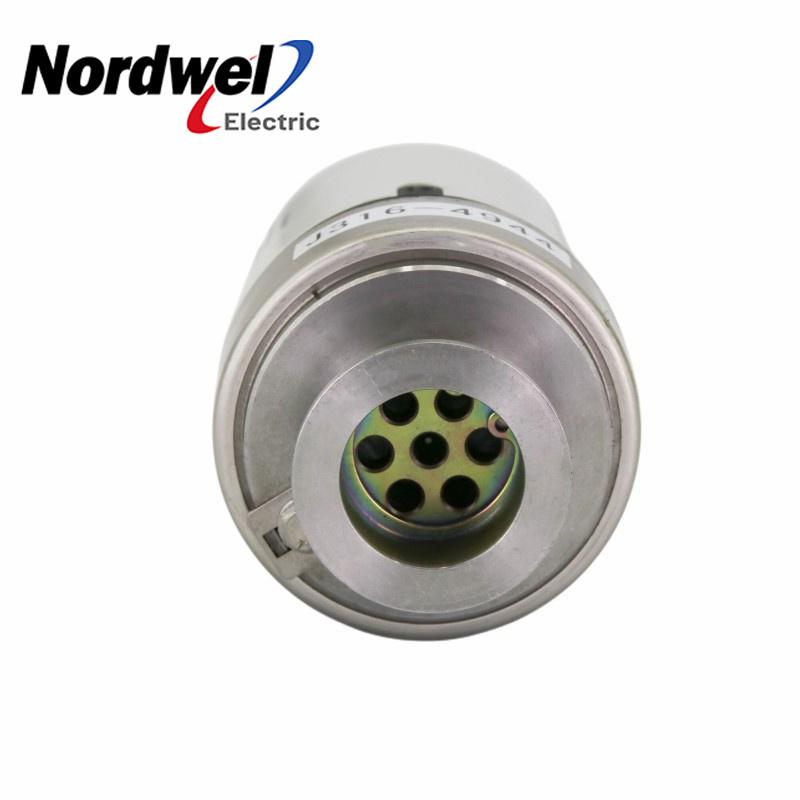

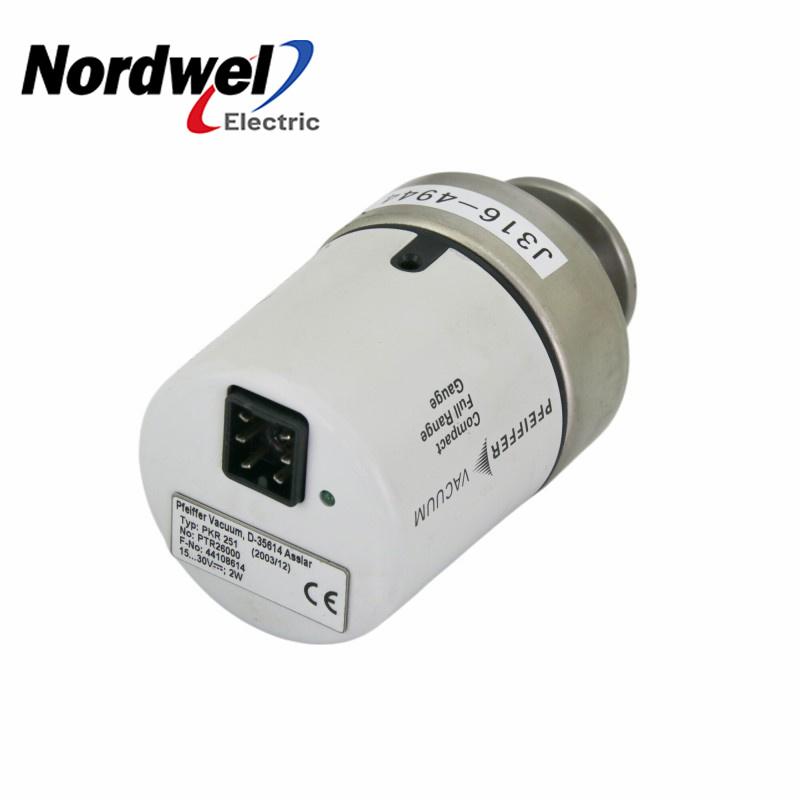

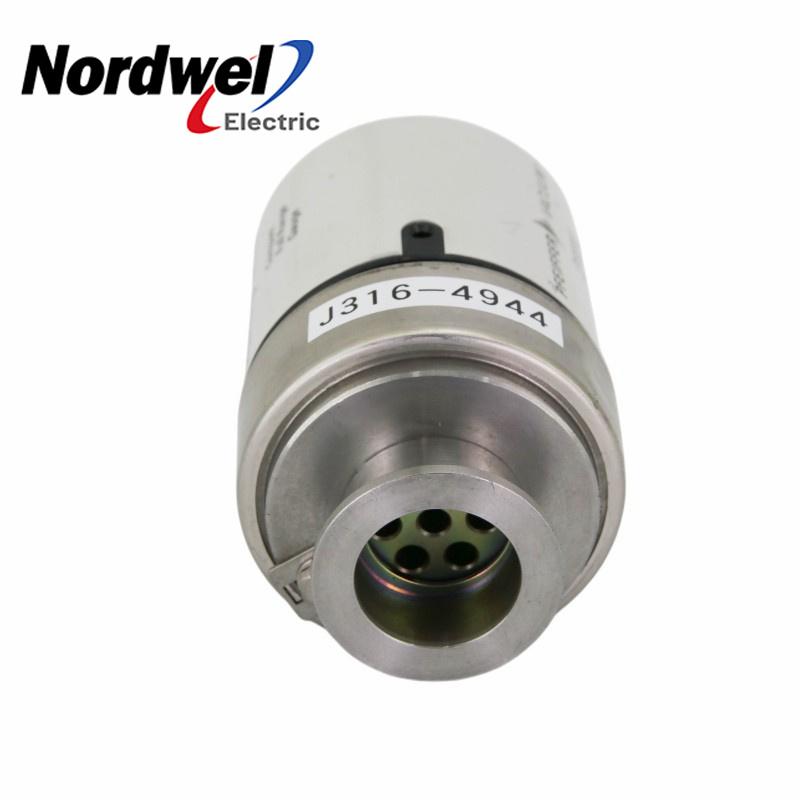

About D-35614 PKR 251
The PKR 251 Compact FullRange™ Gauge has been designed for vacuum
measurement in the pressure range of 5×10-9 … 1000 mbar.
It must not be used for measuring flammable or combustible gases in mixtures
containing oxidants (e.g. atmospheric oxygen) within the explosion range.
The PKR 251 can be used with a Pfeiffer Vacuum measurement unit for Compact
Gauges or with another evaluation unit.
The gauge can also be operated with other evaluation units. In this case, an
individual connection cable must be made.
For cable lengths up to 6 m (with a conductor cross-section of 0.34 mm2
), the
measuring signal can be read directly between the positive signal output (pin 2)
and the supply common (pin 5) without the degree of accuracy being lowered. For
longer measurement cable lengths, we recommend a differential measurement
between the signal output and the signal common (pin 3) (as a result of the voltage
drop along the supply cable ground lead, the common mode signal is approx. 1.0 V
at the maximum admissible cable length).
✦ Features of PLC
Manager Stella quotes to you
Thoughful service
Various payment
Professional after-sales service.
We accept major credit cards VISA, MasterCard, American Express and Discover, PayPal, and other electronic payments, such as international T / T wire transfers.
100% original product
Quick Shipping
Long warranty
100% quality assurance and the more competitive price.
We have large quantites of inventories, can ship immediately.
We provides 12 months warranty for all parts and components.Your satisfaction is how we measure success!
|
