Part Number:
PFXGP4402WADWWeight:
0.58 kgDimensions:
20.5x15x3.8cmManufacture Year:
Latest yearPlace of Origin:
JAPANCertification:
COODescription:

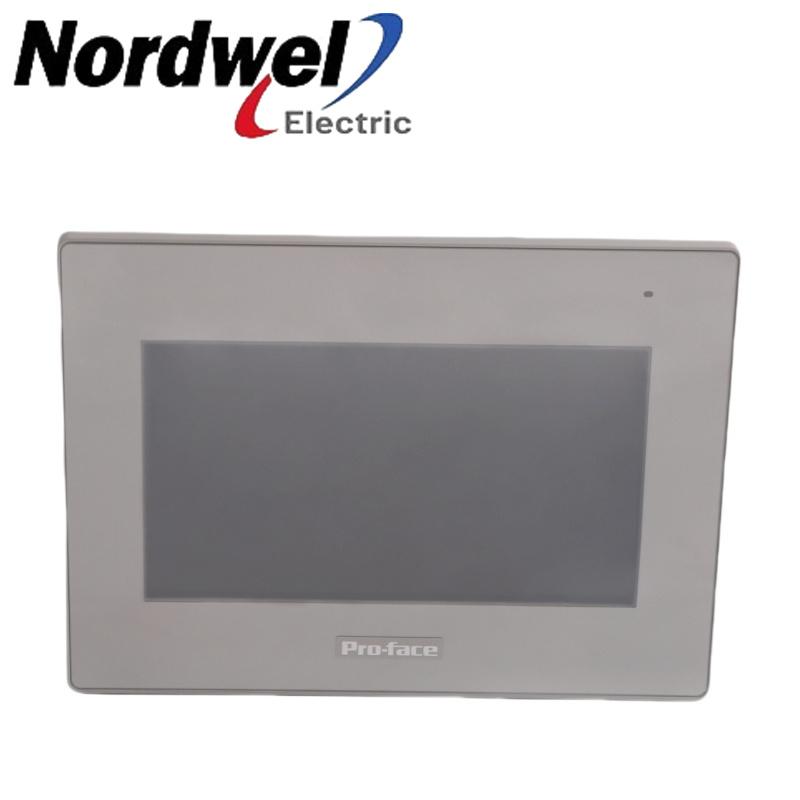

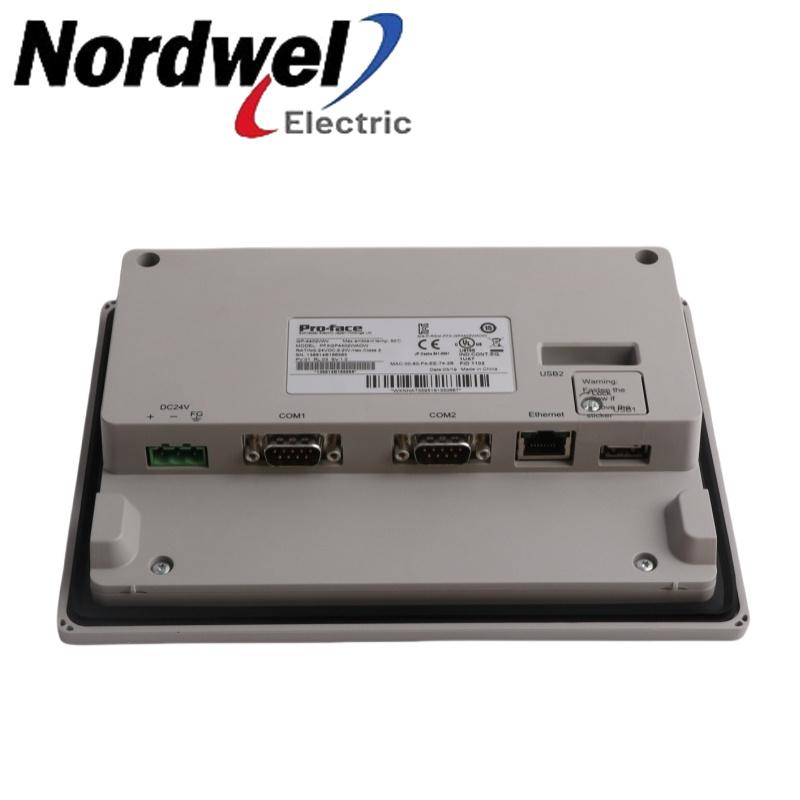

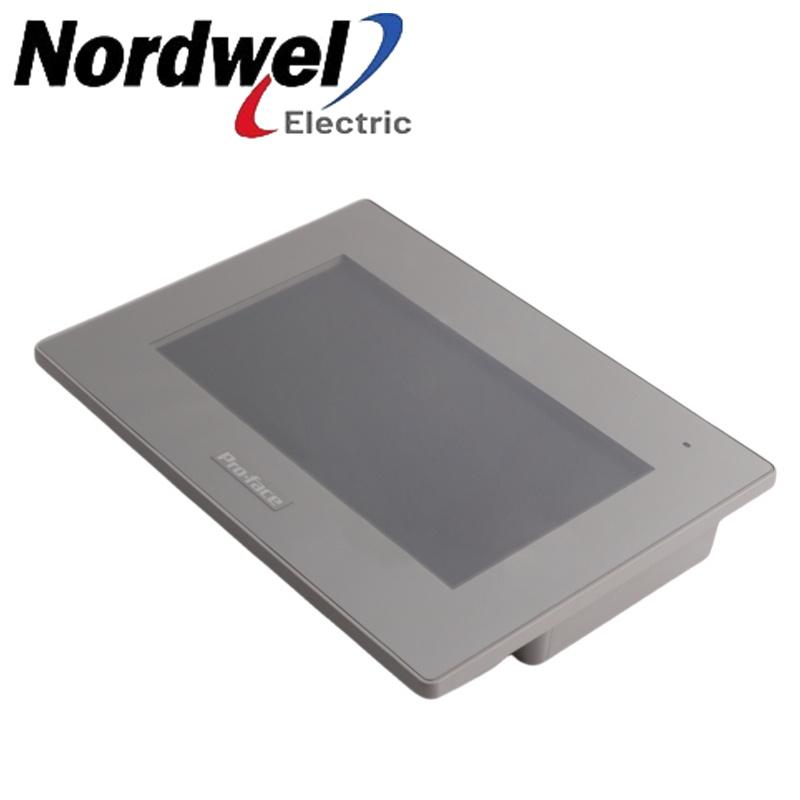

PFXGP4402WADW Proface Operator Interface
Product Description
The Proface PFXGP4402WADW is a programmable human-machine interface (HMI) from the GP4000E series. This operator panel boasts a refined design with a simple, sleek silhouette and elegant lines, perfectly fitting into any industrial environment. Its 7-inch widescreen display with a resolution of 800×480 pixels (WVGA) clearly displays information. The vibrant, lifelike 65,536-color TFT display minimizes visual fatigue even after extended viewing, improving accuracy and efficiency in information acquisition.
The PFXGP4402WADW is constructed from high-quality housing materials, offering excellent durability and protection. It not only effectively resists industrial contaminants such as dust and oil, but also withstands a certain degree of vibration and shock, ensuring stable operation even under harsh working conditions. The PFXGP4402WADW is designed with operator convenience in mind. Its highly responsive touchscreen responds quickly to various commands with a simple touch. Whether it's tapping an icon, scrolling through pages, or entering text, it can all be done easily, greatly improving operational efficiency. At the same time, the screen's brightness and contrast can be adjusted in multiple levels via the touchscreen.
FAQ：
Q1:What problems might arise if the screen is unreadable?
A1:If the screen is unreadable (for example, if the backlight is faulty), it may be difficult to identify functions, or even impossible to identify them. Functions that could be dangerous if not immediately executed (for example, when the fuel supply is depleted) must be provided by a device other than the panel.
Q2:What controllers can this operator interface connect to?
A2:Connectable controllers include PLCs, temperature controllers, and process controllers.
Q3:What symptoms might occur during LCD screen use?
A3:The LCD screen may display uneven brightness when displaying certain images, or may appear different when viewed from outside the specified viewing angle. Image smearing or crosstalk may appear at the edges of the screen image. LCD screen pixels may contain black and white spots, and the color display may appear to be constantly shifting. Displaying the same image on the panel screen for an extended period of time may cause image sticking after changing the image. If this occurs, close the panel, wait one second, and then restart it.
Contact us for a quick quote.
Sales manager : Tiffany Guan
Email: sales2@mooreplc.com
Team: dddemi33@outlook.com
Mobile / WhatsApp : + 86 18030235313
|
Quantity available: 1 |
|
The colour：NEW |
|
Warranty: 12 months. |
|
Lead time: 1-2 working days. |
|
Terms of payment: 100% advance bank wire |
|
TransferCourier partners: DHL, UPS, TNT, FedEx and EMS. |
|
