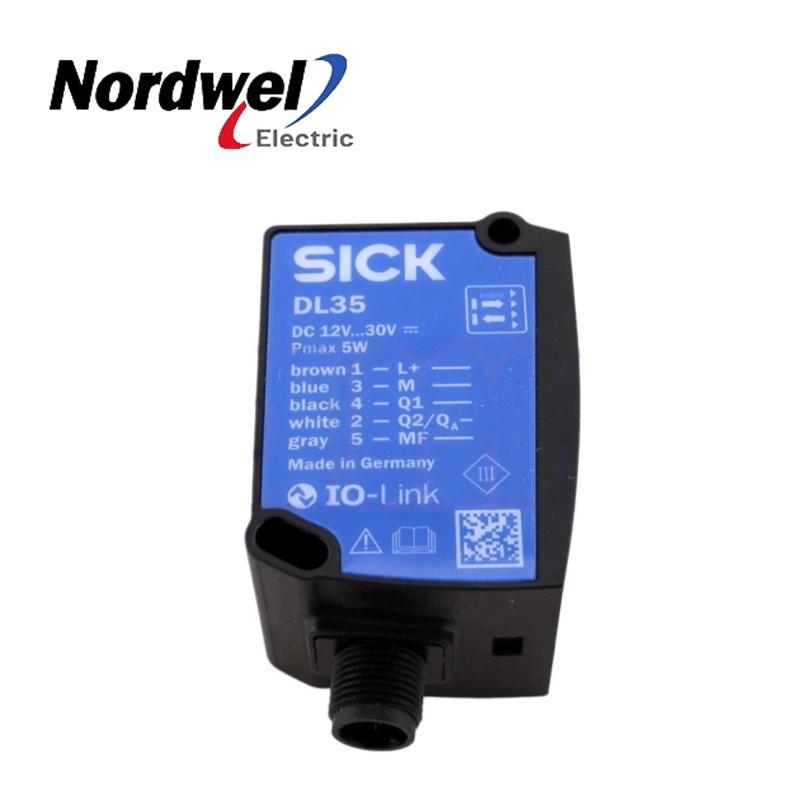

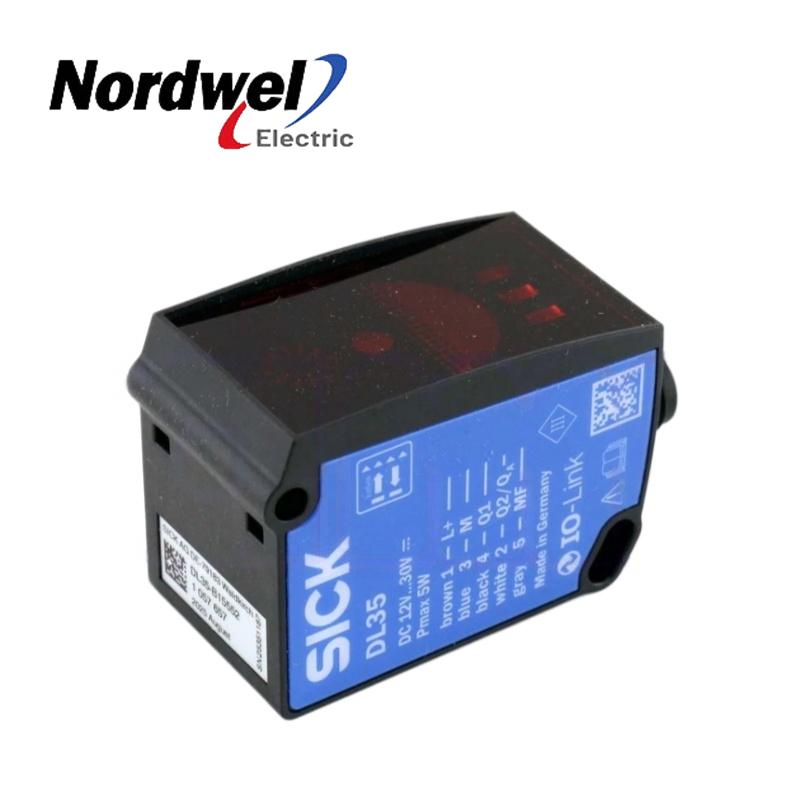

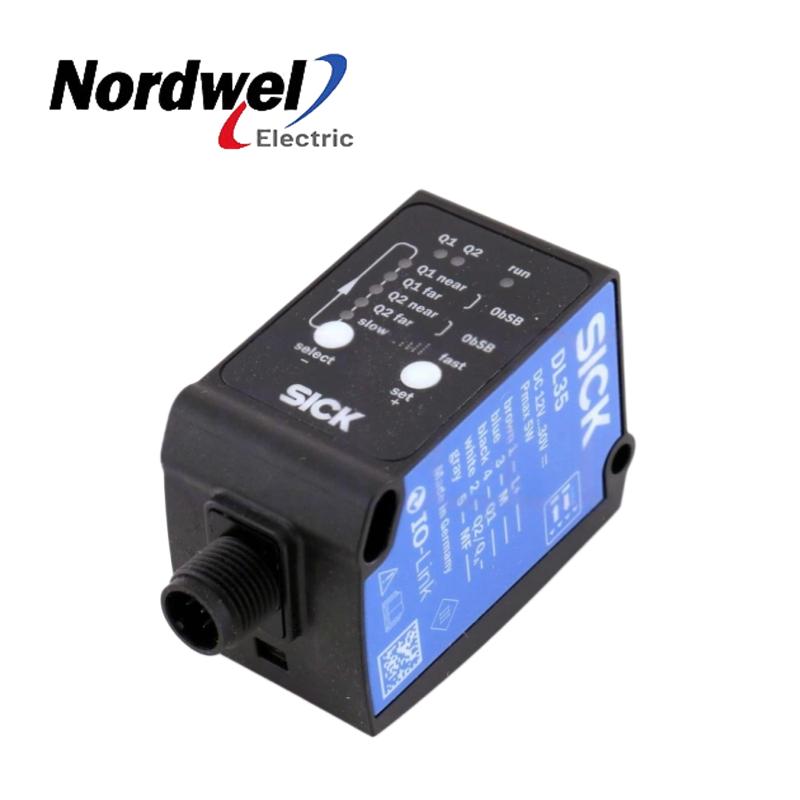

SICK DL35-B15552 MID RANGE DISTANCE SENSORS

  • Item NO.:

    DL35-B15552
  • Part Number:

    DL35-B15552
  • Weight:

    0.06kg
  • Dimensions:

    3.2x5.8x4.2cm
  • Manufacture Year:

    The lastest year
  • Place of Origin:

    GERMANY
  • Certification:

    COO
  • Description:

    MID RANGE DISTANCE SENSORS

Product Information

Model Number:

DL35-B15552

Description:

MID RANGE DISTANCE SENSORS

Delivery Time:

in stock

manufacturer:

SICK




Contact for quotation

Sales Manager:

Stella

Send an email:

sales9@amikon.cn

Contact in Whatsapp:

+86 18159889985



Specification

  • Measuring range: 200 mm to 35,000 mm using “diamond grade” reflective tape
  • Sensor type: Retroreflective laser distance sensor
  • Light source: Visible red laser, Class 1
  • Laser wavelength: 658 nm
  • Resolution: 0.1 mm
  • Repeatability: ≥ 0.5 mm
  • Measurement accuracy: Typical ±15 mm
  • Response time: Adjustable from 2.5 ms to 96.5 ms
  • Switching frequency: Up to 333 Hz
  • Output time: Adjustable from 1 ms to 32 ms
  • Supply voltage: 12 V DC to 30 V DC
  • Power consumption: ≤ 1.7 W
  • Output types: Analog, NPN/PNP, current, voltage, and IO-Link communication
  • Interface: IO-Link V1.1
  • Connector type: 5-pin M12
  • Housing material: ABS/PC plastic housing
  • Protection rating: IP65 / IP67
  • Operating temperature: -30 °C to +55 °C
  • Storage temperature: -40 °C to +75 °C
  • Ambient light immunity: Up to 40,000 lx
  • Typical light spot size: 15 mm × 15 mm at 2 m
  • Additional functions:
    • Adjustable speed settings (Super Fast to Super Slow)
    • Analog and digital teach-in
    • Switching window mode
    • External teach input
    • Factory reset function
    • Multifunction configurable outputs
