Brand:
SIEMENSPart Number:
6ED1052-1FB00-0BA6Weight:
0.2kgDimensions:
7x6x9cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

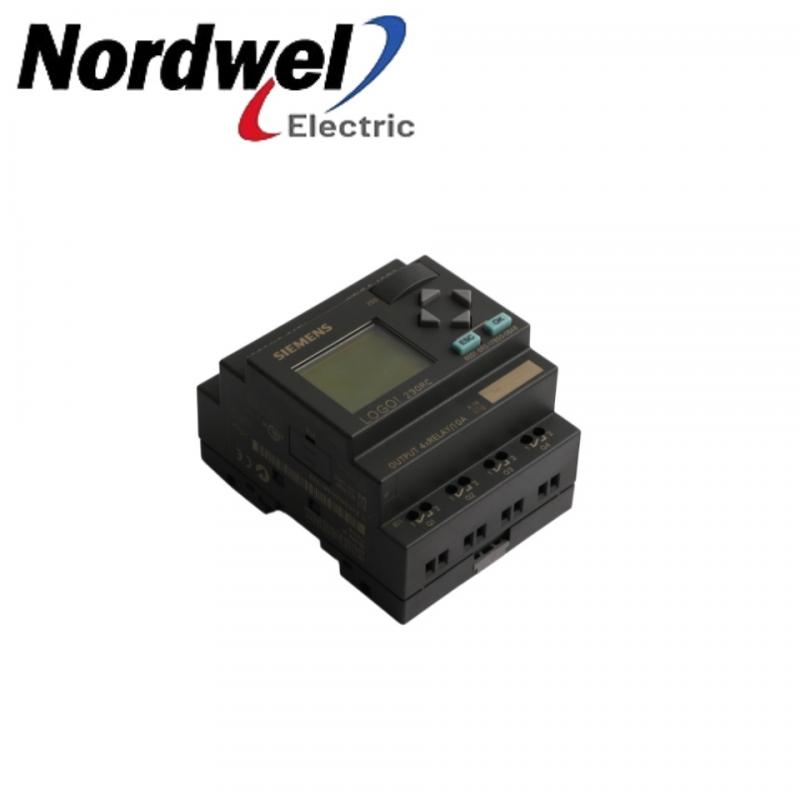

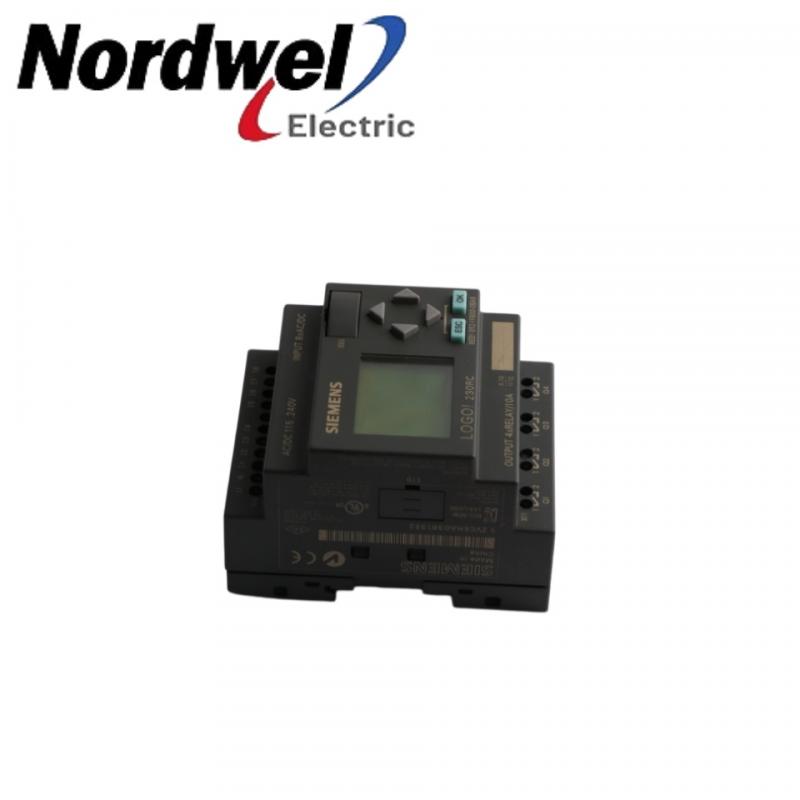

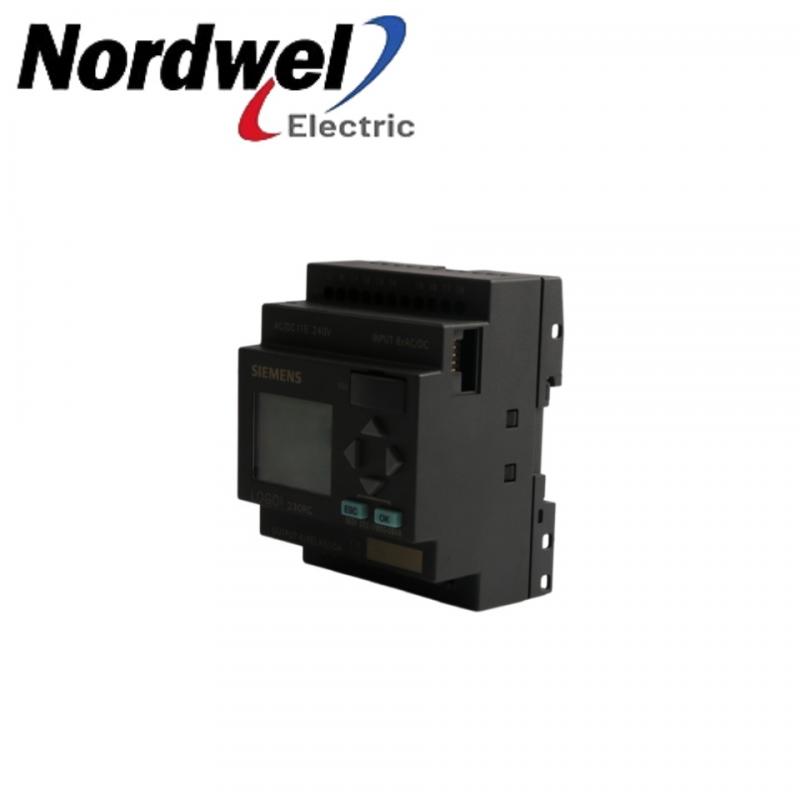

SIEMENS 6ED1052-1FB00-0BA6 115/230V LOGO! module with 8 inputs, 4 relays.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
6ED1052-1FB00-0BA6 |
|
Description |
SIEMENS 6ED1052-1FB00-0BA6 230RC Logic Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6ED1052-1FB00-0BA6 in stock!!!
Product Description
The Siemens LOGO! 230RC logic module (6ED1052-1FB00-0BA6) is a compact, IP20-rated controller operating on 115V-230V AC/DC, equipped with an integrated display and keypad designed for 35mm DIN rail mounting (4-modular-width). It features 8 digital inputs (115/230V) and 4 relay outputs (10A resistive, 3A inductive), providing 200 memory function blocks, 8 time switches, and 80 hours of power reserve. Designed for industrial applications, the unit meets EN 55011 (Limit class B) standards, operates in temperatures from 0°C to 55°C, and supports 1 x 0.5 mm² to 1 x 2.5 mm² or 2 x 0.5 mm² to 2 x 1.5 mm² wiring, with external 16A fusing required for the outputs.
Parameter Information
Supply voltage: 115 V to 230 V AC/DC
Permissible AC range: 85 V to 265 V
Permissible DC range: 100 V to 253 V
Line frequency: 47 Hz to 63 Hz
Digital inputs: 8 count
Relay outputs: 4 count
Continuous output current (resistive): 10 A max.
Continuous output current (inductive): 3 A max.
Short-circuit protection: External 16 A fuse required (characteristic B or C)
Memory capacity: 200 function blocks
Time switches: 8 channels
Real-time clock backup: 80 hours power reserve
Operating temperature: 0 °C to 55 °C
Environmental protection rating: IP20
FAQ
What is the operational supply voltage range for the 6ED1052-1FB00-0BA6?
It operates on 115 V to 230 V AC/DC (permissible range: 85–265 V AC / 100–253 V DC).
How many digital inputs and relay outputs does the 6ED1052-1FB00-0BA6 feature?
It features 8 digital inputs and 4 relay outputs.
What is the maximum continuous current capacity per relay output for the 6ED1052-1FB00-0BA6?
It supports a maximum of 10 A for resistive loads and 3 A for inductive loads.
Application
Factory Automation: Controlling small-scale assembly lines, conveyor belts, and material handling systems.
Building Services: Managing lighting automation, HVAC heating/ventilation units, and automatic door systems.
Water Management: Controlling small pump stations, water treatment systems, and liquid level monitoring.
Special Machinery: Operating packaging machines, industrial washing systems, and compressor controls.
Marine & Infrastructure: Utilizing its certified design for basic maritime auxiliary controls and outdoor traffic signal systems.
|
