Brand:
SIEMENSPart Number:
6SL3246-0BA22-1FA0 VERSION4.6Weight:
0.7kgDimensions:
20.8x7.3x6.8cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

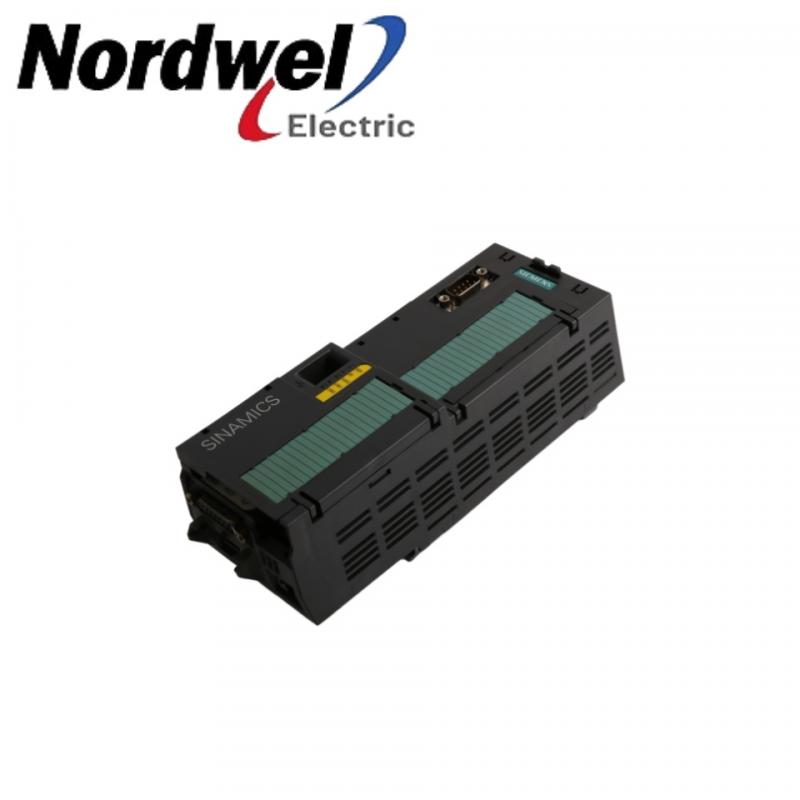

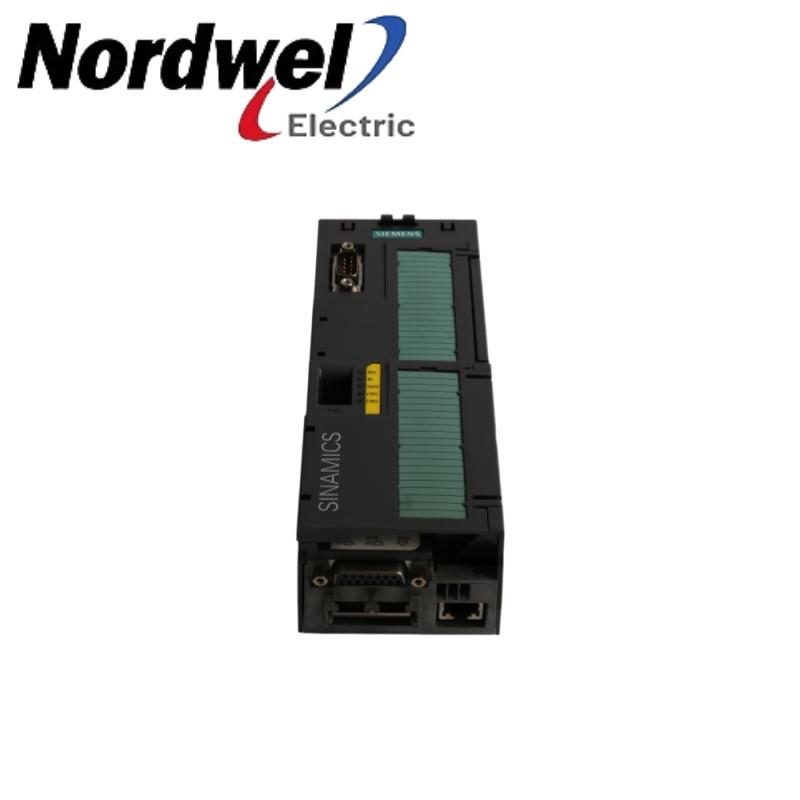

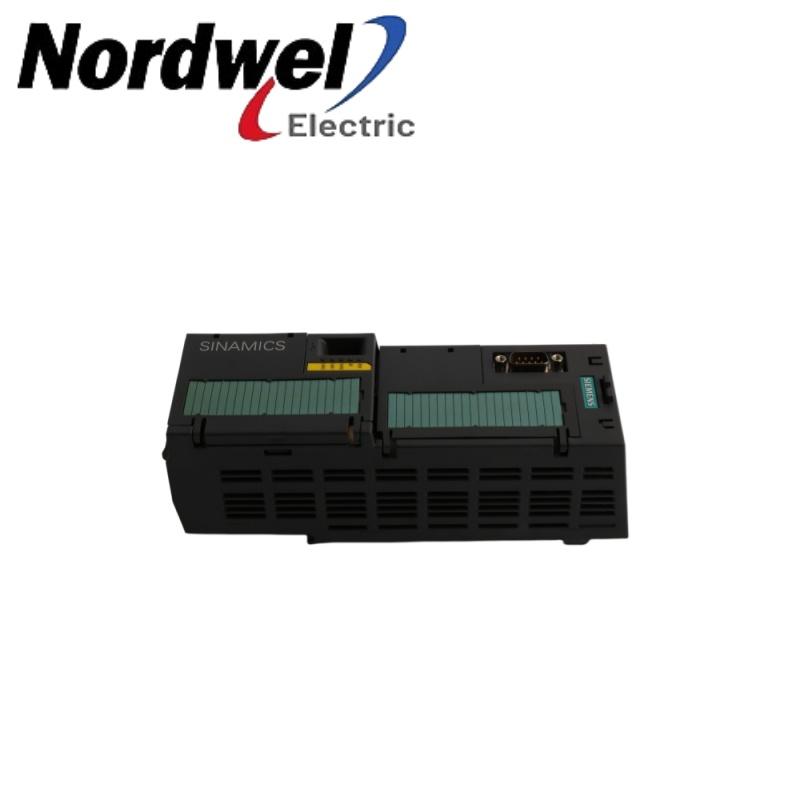

SIEMENS 6SL3246-0BA22-1FA0 VERSION4.6 Advanced SINAMICS G120 PN Motion Control Unit
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
6SL3246-0BA22-1FA0 VERSION4.6 |
|
Description |
SIEMENS 6SL3246-0BA22-1FA0 VERSION4.6 Drive Control Unit |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6SL3246-0BA22-1FA0 VERSION4.6 in stock!!!
Product Description
The 6SL3246-0BA22-1FA0 VERSION4.6 is a SINAMICS G120 CU250S-2 PN Control Unit designed for use with Siemens drive systems, providing advanced control functions for variable speed applications. It supports PROFINET communication and offers functions such as vector control, easy positioning (EPOS) through extended function license, and integrated safety functions including STO, SBC, and SS1. The control unit provides flexible signal connection with 6 digital inputs (including 3 fail-safe inputs), 5 additional digital inputs, 3 digital outputs (including 1 fail-safe output), 2 analog inputs, and 2 analog outputs. It also supports encoder interfaces including D-CLiQ, HTL/TTL/SSI, and resolver/HTL via terminal connection, allowing accurate motor speed and position feedback for demanding automation tasks. The 6SL3246-0BA22-1FA0 VERSION4.6 includes a USB interface and SD/MMC card interface for commissioning, parameter management, and data storage. With IP20 protection and 24 V DC supply operation, it is suitable for integration into industrial control cabinets. This control unit is commonly used in machine automation, conveyor systems, production equipment, packaging machinery, and other industrial drive applications requiring reliable motor control, positioning, communication, and safety functions.
Parameter Information
Supply Voltage: 24 V DC
External Power Supply Range: 20–29 V DC
Maximum Power Consumption: 2.00 A
Power Loss: 12 W
Communication Interface: PROFINET, EtherNet/IP
Standard Digital Inputs: 15
Fail-Safe Digital Inputs: 3 F-DI
Digital Outputs: 2
Digital Output Rating: DC 30 V, 0.5 A
Analog Inputs: 2 Differential Inputs
Analog Outputs: 2 Non-isolated Outputs
Safety Functions: STO, SBC, SS1
Protection Rating: IP20 / UL Open Type
Operating Temperature Range: -10 to 50 °C
Maximum Relative Humidity During Operation: 95%
FAQ
What supply voltage does the 6SL3246-0BA22-1FA0 VERSION4.6 require?
The 6SL3246-0BA22-1FA0 VERSION4.6 operates with 24 V DC supply through the Power Module and 20–29 V DC external supply.
How many digital inputs does the 6SL3246-0BA22-1FA0 VERSION4.6 have?
The 6SL3246-0BA22-1FA0 VERSION4.6 provides 15 standard digital inputs.
How many fail-safe inputs does the 6SL3246-0BA22-1FA0 VERSION4.6 support?
The 6SL3246-0BA22-1FA0 VERSION4.6 includes 3 fail-safe digital inputs (F-DI).
Application
Robotics & Assembly Lines: Applied in automated production stations for motor control, encoder feedback, and coordinated movement tasks.
Packaging Machinery: Controls variable-speed motors in filling, sealing, sorting, and material feeding equipment.
Machine Tool Industry: Supports spindle and axis control applications with vector control and encoder interfaces.
Logistics & Material Handling: Used in transport systems, cranes, and handling equipment with PROFINET communication.
|
