Brand:
SIEMENSPart Number:
6SL3246-0BA22-1FA0 VERSION4.7Weight:
0.7kgDimensions:
20.8x7.3x6.8cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

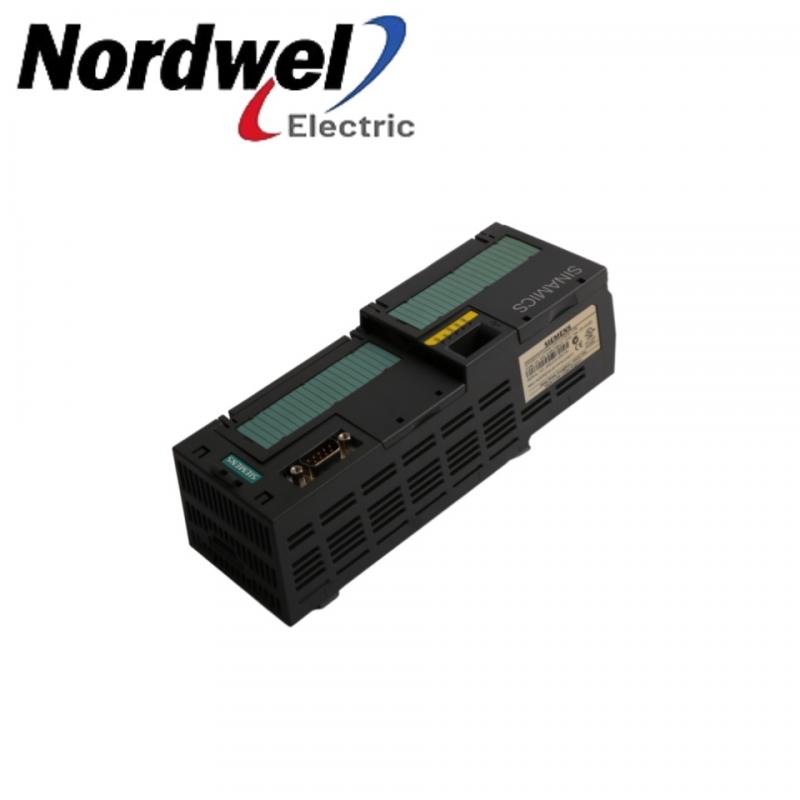

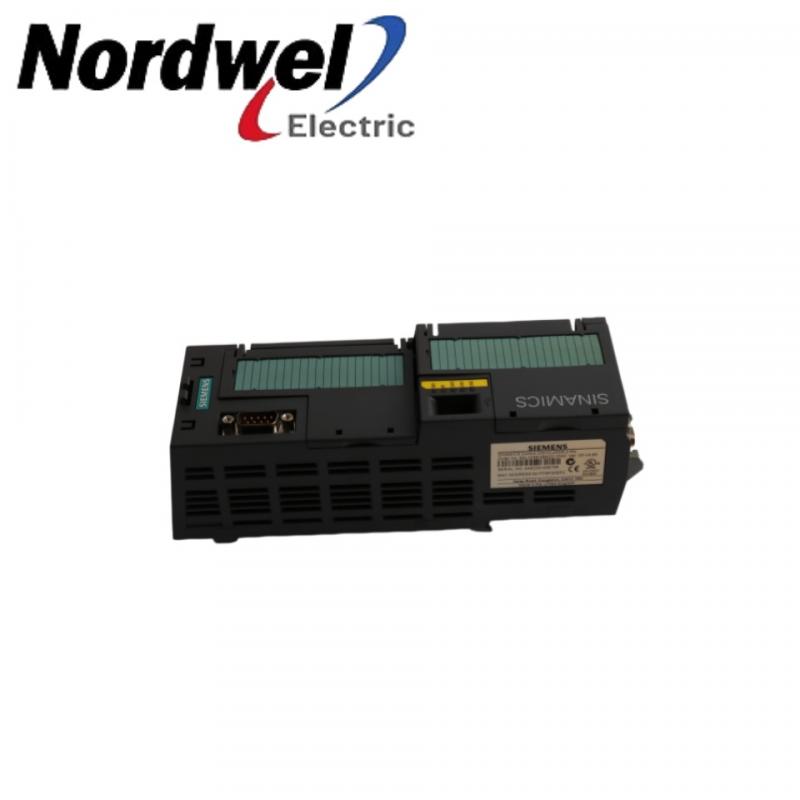

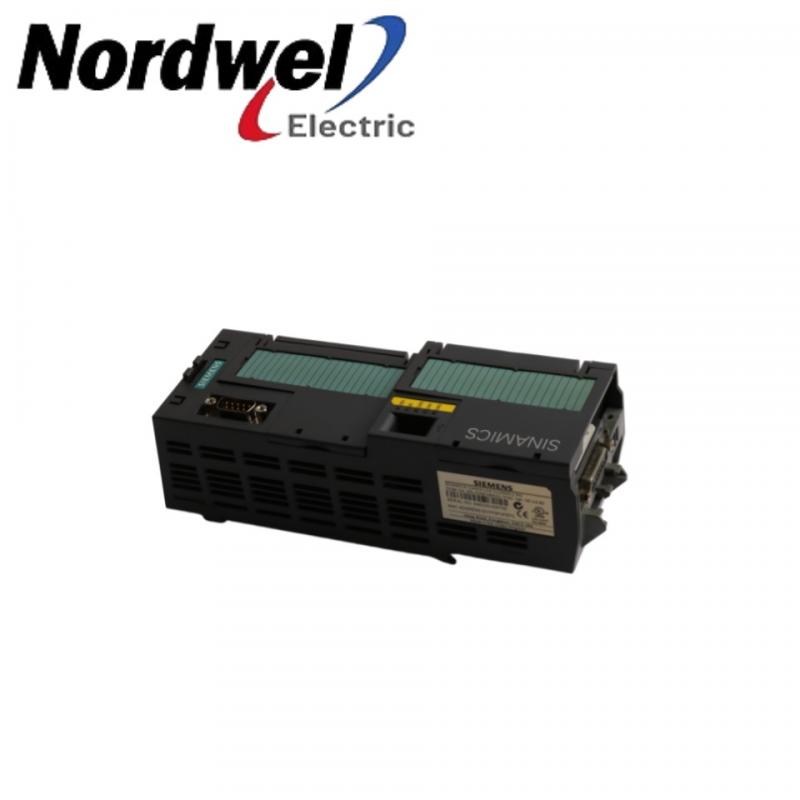

SIEMENS 6SL3246-0BA22-1FA0 VERSION4.7 G120 Drive Control Unit With PROFINET Motion Functions
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
6SL3246-0BA22-1FA0 VERSION4.7 |
|
Description |
SIEMENS 6SL3246-0BA22-1FA0 VERSION4.7 Control Unit |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6SL3246-0BA22-1FA0 VERSION4.7 in stock!!!
Product Description
The 6SL3246-0BA22-1FA0 VERSION4.7 is a SINAMICS G120 CU250S-2 PN Control Unit used for advanced drive control applications in industrial automation systems. It supports PROFINET communication and provides functions including vector control, Easy Positioning (EPOS) through an extended function license, and integrated safety functions such as STO, SBC, and SS1. The control unit includes flexible signal handling with 4 configurable DI/DO channels, 6 digital inputs including 3 fail-safe inputs, 5 additional digital inputs, 3 digital outputs including 1 fail-safe output, 2 analog inputs, and 2 analog outputs. It supports encoder connection through D-CLiQ, HTL/TTL/SSI interfaces, and resolver/HTL via terminal connection, allowing accurate speed and position feedback for motor control applications. The 6SL3246-0BA22-1FA0 VERSION4.7 operates with a 24 V DC supply and supports an external supply range of 20–29 V DC, with a maximum power consumption of 2.00 A and power loss of 12 W. The unit provides USB and SD/MMC interfaces for commissioning, parameter storage, and system maintenance, while the IP20 protection rating allows installation inside industrial control cabinets. It is widely applied in machine tools, conveyor systems, packaging equipment, automated production lines, and material handling systems where reliable motor speed, torque, positioning, communication, and safety control are required.
Parameter Information
Supply Voltage via Power Module: 24 V DC
External Power Supply: 20–29 V DC
Maximum Power Consumption: 2.00 A
Power Loss: 12 W
Standard Digital Inputs: 15
Fail-Safe Digital Inputs: 3 F-DI
Configurable DI/DO Channels: 4 configurable DI/DO
Digital Outputs: 3 DO (including 1 F-DO)
Digital Output Rating: DC 30 V, 0.5 A
Analog Inputs: 2 differential inputs
Analog Outputs: 2 non-isolated outputs
Integrated Safety Functions: STO, SBC, SS1
Protection Rating: IP20 / UL Open Type
Operating Temperature Range: -10 to 50 °C
Maximum Relative Humidity: 95%
FAQ
What type of module is the 6SL3246-0BA22-1FA0 VERSION4.7?
The 6SL3246-0BA22-1FA0 VERSION4.7 is a SINAMICS G120 CU250S-2 PN Control Unit with integrated PROFINET communication.
What communication interface does the 6SL3246-0BA22-1FA0 VERSION4.7 support?
The 6SL3246-0BA22-1FA0 VERSION4.7 supports PROFINET and EtherNet/IP communication.
What supply voltage does the 6SL3246-0BA22-1FA0 VERSION4.7 require?
The 6SL3246-0BA22-1FA0 VERSION4.7 operates with a 24 V DC supply.
Application
Food & Beverage Processing: Applied in conveyor systems, filling machines, and packaging equipment requiring stable motor speed control.
Material Handling Systems: Used in lifting platforms, transport lines, and sorting equipment with precise positioning requirements.
Machine Manufacturing: Supports CNC machines, production machinery, and automated workstations with encoder feedback and motion control.
Logistics Automation: Applied in warehouse equipment and intelligent transport systems through PROFINET communication.
|
