Brand:
OthersPart Number:
MV1000 YPHS31122-1DWeight:
0.46kgDimensions:
4x15x27.9cmPlace of Origin:
JapanCertification:
CO,CQDescription:

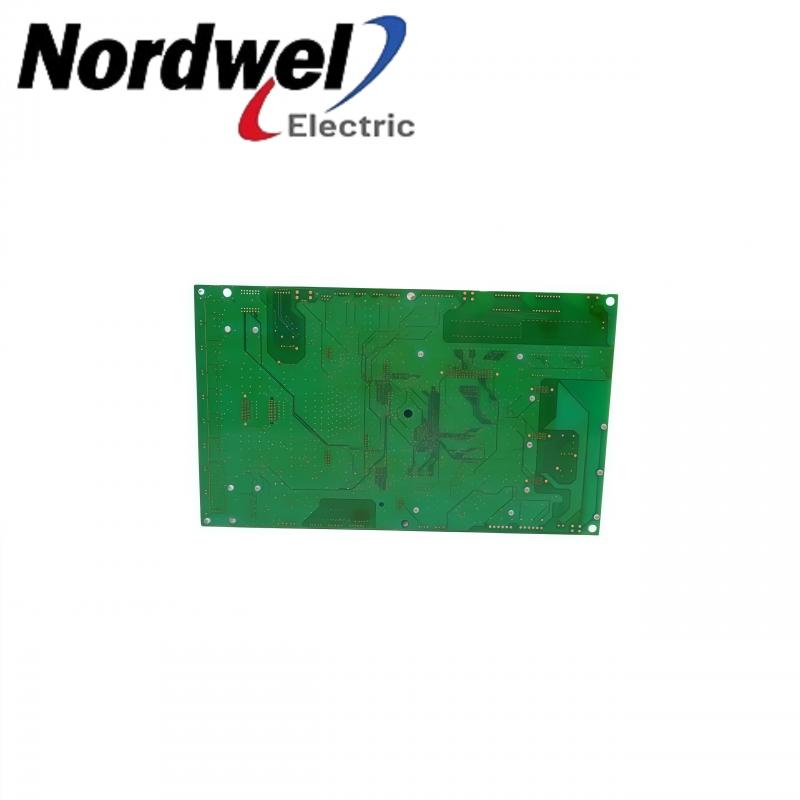

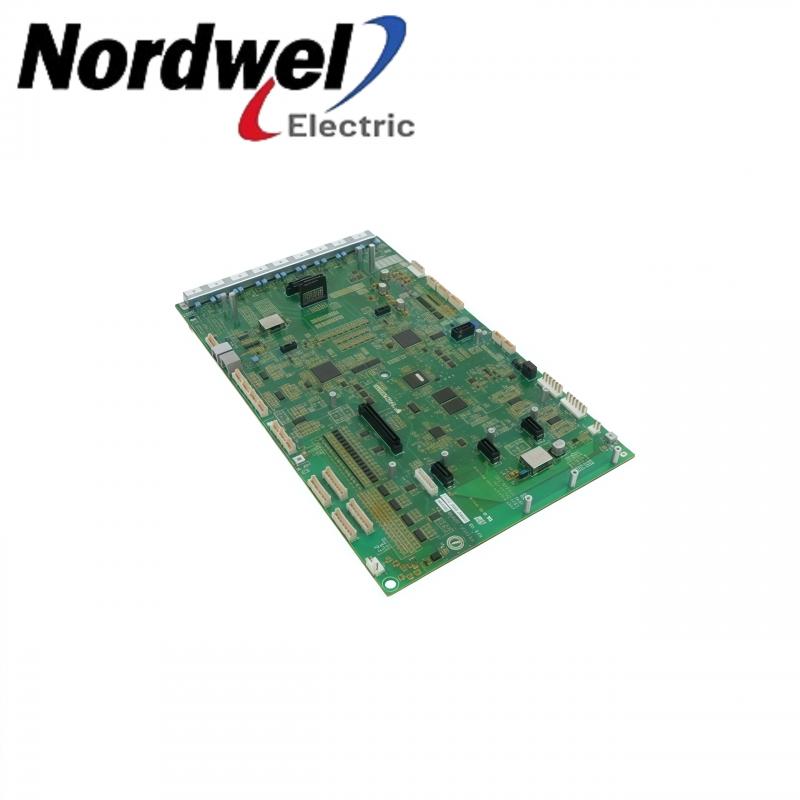

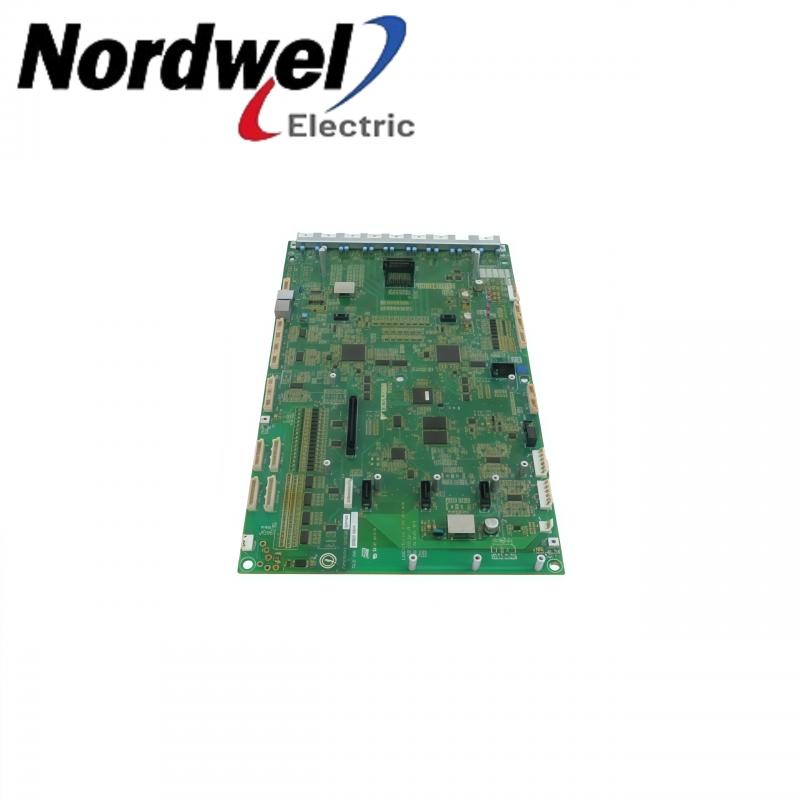

YASKAWA MV1000 YPHS31122-1D Cell Control Board
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
YASKAWA |
|
Part number |
MV1000 YPHS31122-1D |
|
Description |
YASKAWA MV1000 YPHS31122-1D Cell Control Board |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed MV1000 YPHS31122-1D in stock!!!
Product Description
The MV1000 YPHS31122-1D is a Yaskawa medium-voltage power cell module used in the FSDrive-MV1000 drive system. It works as a key power conversion unit in the cascaded H-Bridge structure, handling AC/DC power conversion and supplying stable output for industrial motor control applications. The module supports a 9/17 level PWM output waveform, with about 97% efficiency and a power factor above 0.95 at rated load. It supports open-loop and closed-loop vector control, as well as V/f control methods. The unit operates with forced air cooling and supports an operating temperature range of -5°C to +40°C, with operation up to +50°C under derating conditions. It provides 110% overload capacity for 1 minute and 120% overload capacity for 15 seconds. The module uses a cascaded H-Bridge main circuit type and is used in applications such as pumps, fans, conveyors, and other industrial motor systems that require stable medium-voltage drive operation.The MV1000 YPHS31122-1D also supports power cell monitoring and modular operation within the drive system. It can work with MV1000 control functions for fault detection and system protection, including monitoring of abnormal voltage and temperature conditions. The module is commonly applied in industrial environments where continuous motor operation and reliable power conversion are required.
Parameter Information
Output Waveform: 9/17 level PWM waveform
Derated Temperature Operation: Up to +50°C
Overload Capacity: 110% for 1 minute
Short Overload Capacity: 120% for 15 seconds
Input THD: Less than 2.5%
Cooling Method: Forced air cooling
FAQ
What output waveform does MV1000 YPHS31122-1D provide?
It provides a 9/17 level PWM output waveform.
What type of cooling failure protection does MV1000 YPHS31122-1D support?
The cooling system includes fan operation monitoring and failure detection.
What motors can MV1000 YPHS31122-1D support?
It works with standard industrial motors in MV1000 drive systems.
Application
|
