Products

| 1746-IN16 | AC/DC Input Module

Part Number:
1746-IN16
Weight:
0.3kg
Dimensions:
12.7 cm x 5.1 cm x 15.2 cm
Manufacture Year:
2021
Place of Origin:
USA
Certification:
CO,CQ
Description:

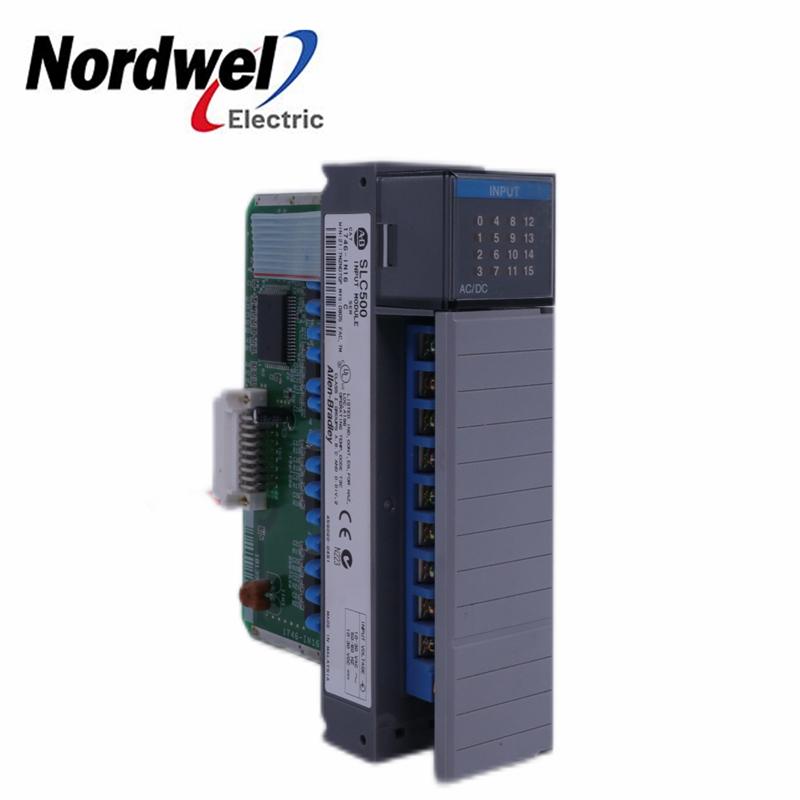

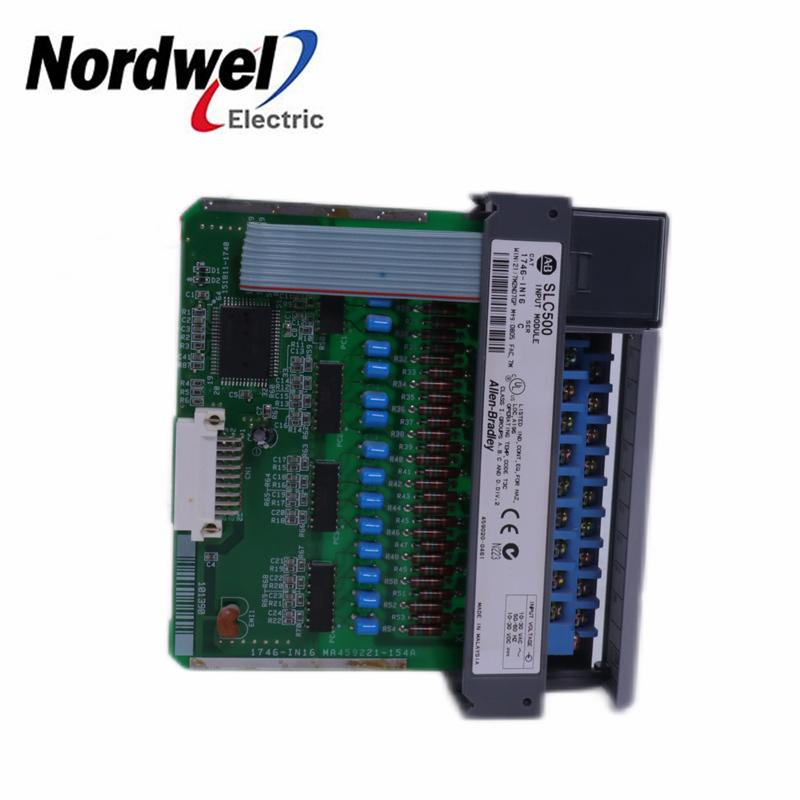

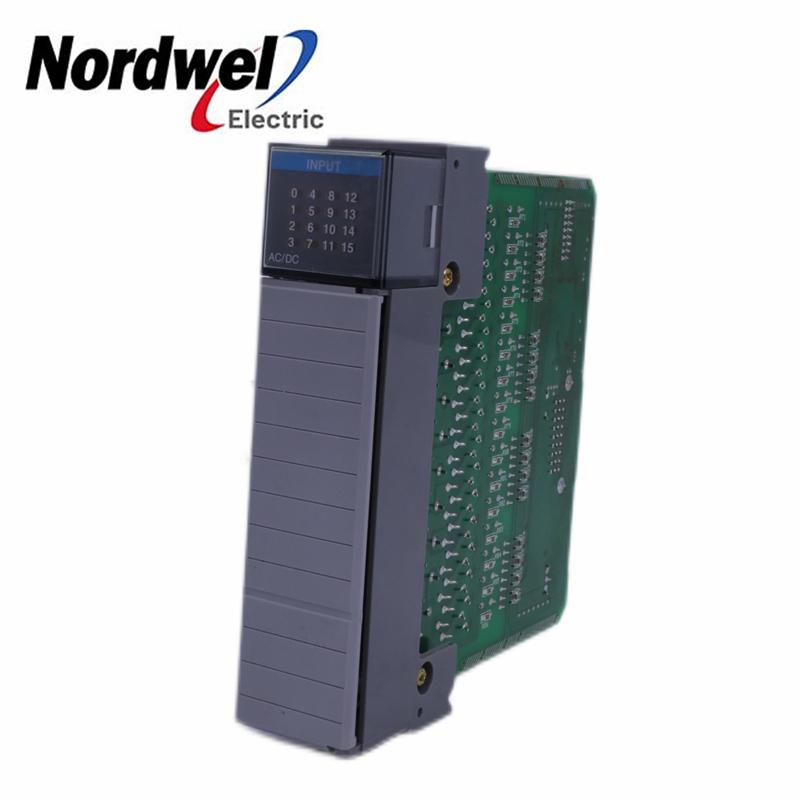

1746-IN16 SLC 500 24V AC/DC Input Module

Inquiry now

Technical Description of 1746-IN16

The 1746-IN16 is a SLC 500 Digital AC Input Module. This Digital AC Input Module has an

Operating Voltage of 24 Volts AC/DC Sink and 16 Inputs with a Backplane Current (5 Volts DC) of 85 milliamps.

Technical Specifications for 1746-IN16

Manufacturer Automation

Part Number/Catalog No. 1746-IN16

Series SLC 500

Operating Voltage 24 Volts AC/DC Sink

Module Type Digital DC Input Module

Voltage Range 24 VDC / 24 VAC

Inputs 16

Signal delay 15 or 25 milliseconds

Backplane Current (5 Volts DC) At 5 Volts DC: 0.085 A;

Off State Current 1 milliamps

Signal delay, DC Voltage 15 ms

Applications General Purpose 125 Volts DC Inputs

Signal delay, AC Voltage 25 ms

I/O Connection 1746-HT and 1746-HCA

Nominal Input Current 8 mA @ 24V DC; 8 mA @ 24V AC

Step Response 100 milliseconds in, 2.5 milliseconds out

Watts Per Point 0.35

UPC 10662468092743

Minimum Watts 0.425

Total Watts 6

Manager Steve quotes to you

cn@mooreplc.com +8618005028963

+86-18005028963 +86-18005028963

1746-IN16 SLC 500 24V AC/DC Input Module PDF

Discrete Input and Output Modules PDF

1)Fast delivery:

2)Various payment:

3)Long warranty:

we offer original new with 1 year warrenty
