Part Number:
1756-OB32/AWeight:
0.35kgDimensions:
23.5*18.3*5.3cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

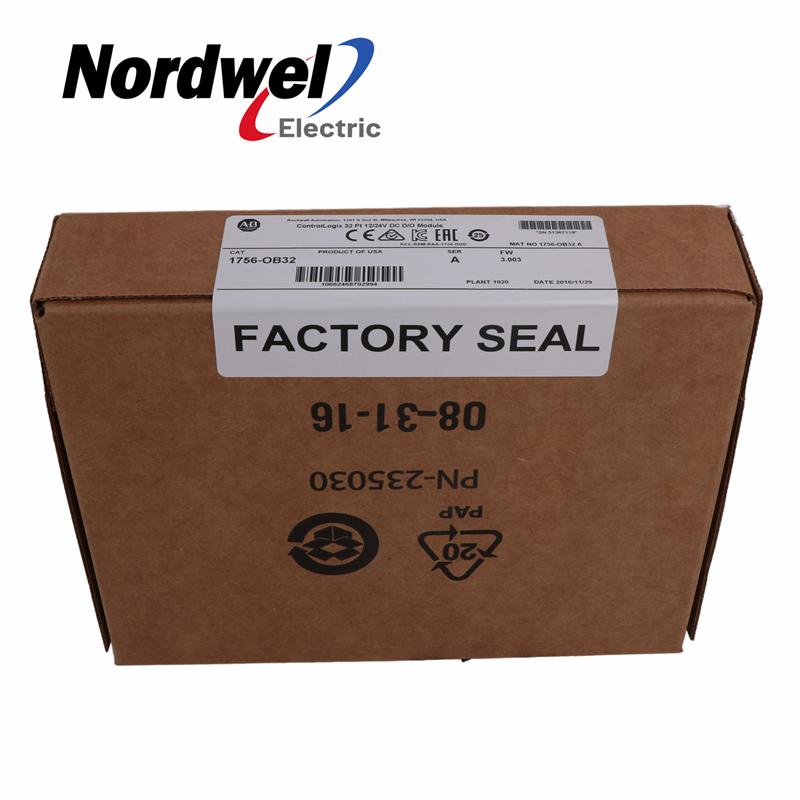

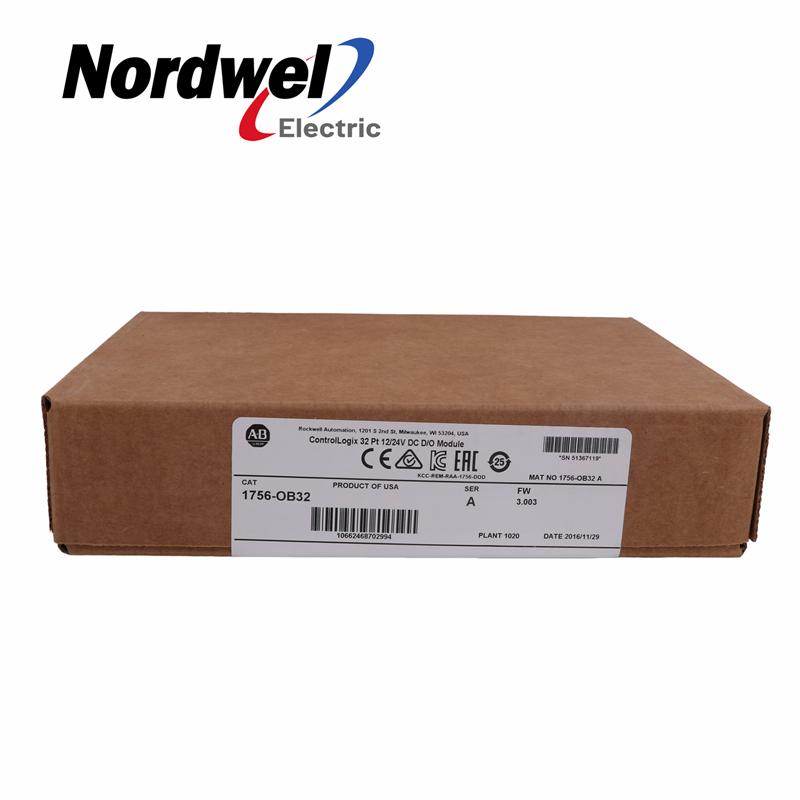

1756-OB32/A ControlLogix Discrete output module
Description: The 1756-OB32/A is a ControlLogix Discrete output module which operate at a voltage category
of 12 / 24VDC. This module has Thirty-Two (32) channels with Two (2) groups of Eight (8) channels each.
This module is directly installed to a 1756 local or remote chassis.
Technical Specifications for 1756-OB32/A
Series ControlLogix
Outputs 32-Point
Module Type DC Output Module
Voltage 12-24 Volts DC Source
Operating Voltage Range 10-31.2 Volts DC
Output Delay Time, OFF to ON 60 µs nom/1 ms max
Output Delay Time, ON to OFF 200 µs nom/1 ms max
Current per point 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F)
