Part Number:
1785-ME16Weight:
0.1kgDimensions:
7.6 cm x 2.5 cm x 15.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

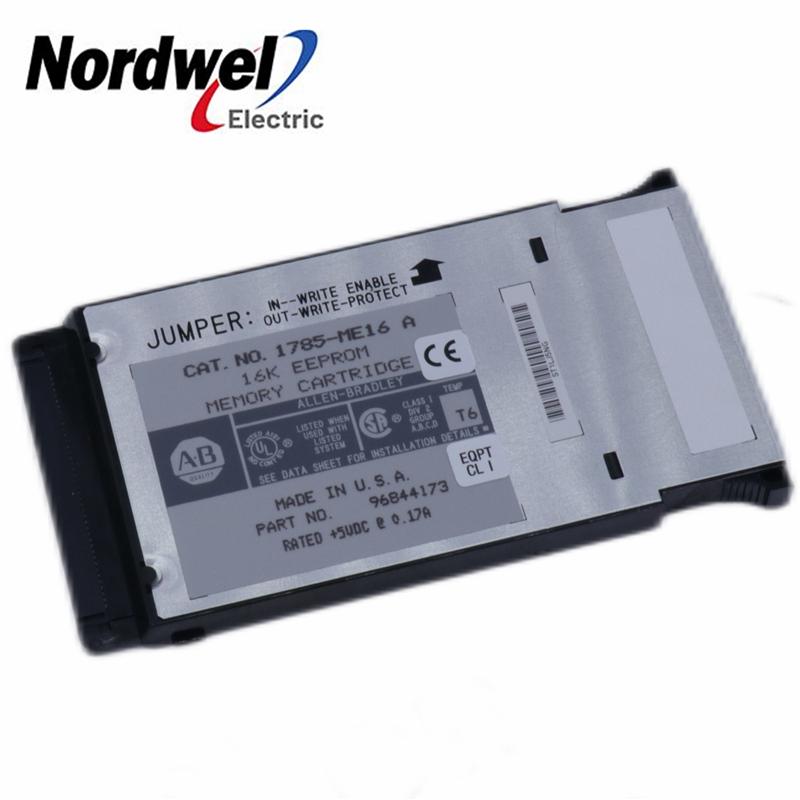

1785-ME16 Enhanced PLC-5 controller Memory Module
Technical Description of 1785-ME16
PLC 5 Memory Device, 16 Kilowords
Technical Specifications for 1785-ME16
Manufacturer Automation
Memory Size 16 Kwords
Module Type Memory module
Part Number/Catalog No. 1785-ME16
Write protection Removable jumper
Removal and Insertion Under Power (RIUP): No
Compatible Processors, Enhanced: PLC-5/11; PLC-5/20; PLC-5/30; PLC-5/40; PLC-5/40L;
PLC- 5/60; PLC-5/60L; and PLC-5/80
Compatible Processors, Ethernet: PLC-5/20E; PLC-5/40E and PLC-5/80E
Operating Temperature 0° to 60° C (32° to 140° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Relative Humidity 5 to 95% (without condensation)
Operating 15 g peak acceleration at 11 ms duration
Non-operating 3 g peak acceleration at 11 ms duration
Description EEPROM
Function Program Backup
For This Product Standard PLC-5 Processors
Number of Words 6 Kilowords SRAM
Backplane Requirement 2.5 Amperes at 5 Volts DC
Max Analog I/O 3072
I/O Scan Time Per Rack 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s
Max I/O Chassis Total 93
Max I/O Chassis Extended Local 0
Max I/O Chassis Universal Remote 32 Max. Per I/O Link
RS-232-C/422-A/423- A Ports 1
Control Coprocessor Expansion Port Yes

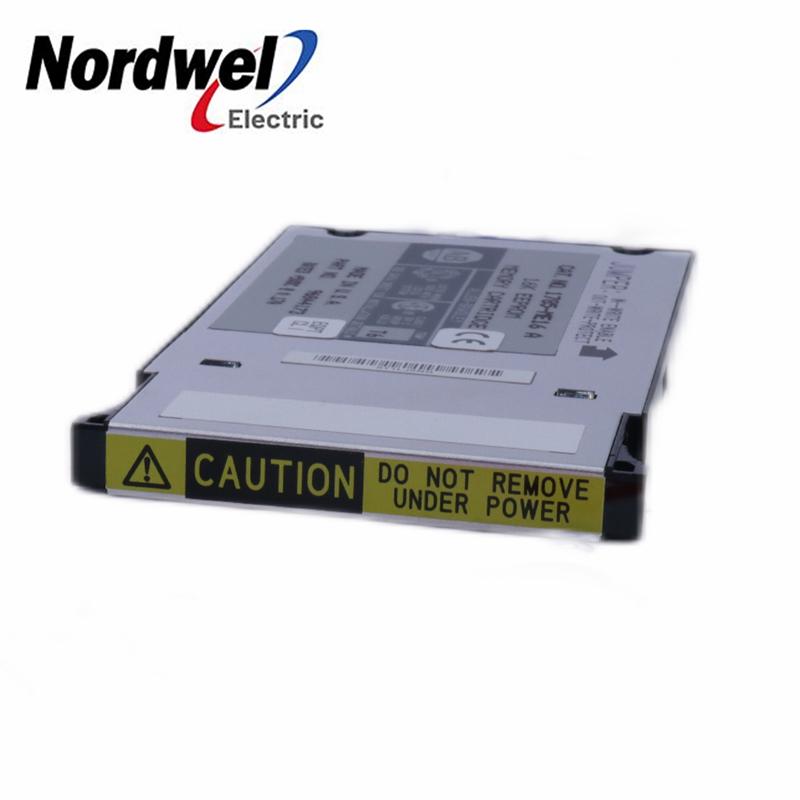

To install this module, the processor must be without power. Similarly, it does not support removal under
power. This may damage the module and erase the contents of the device. It may be configured to serve
as backup memory, preventing the processor from entering non-operational state due to erasure of the user
program. It may be set to automatically load the user program at every processor start-up.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
