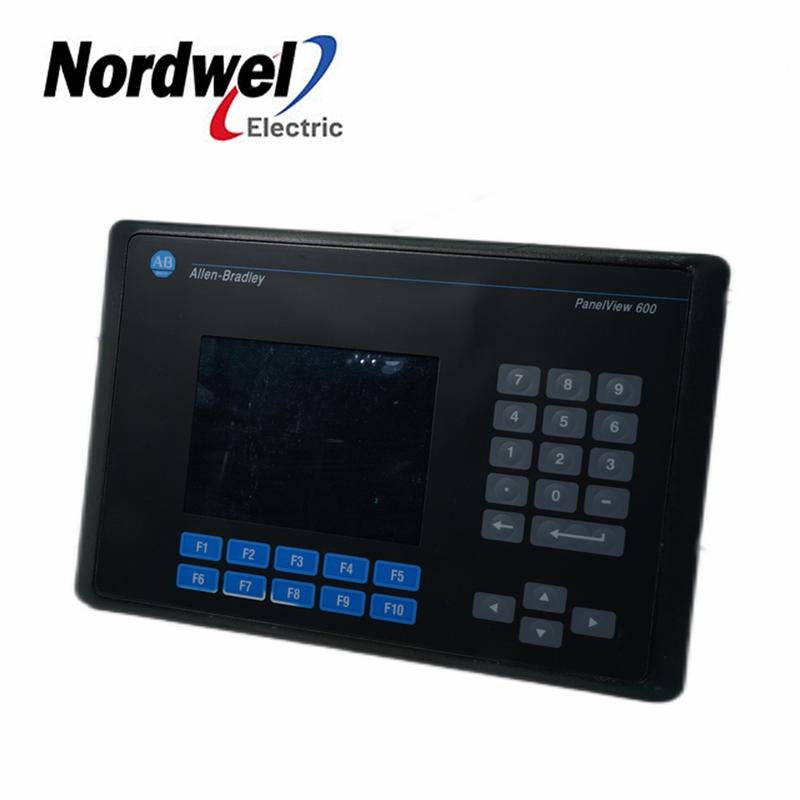

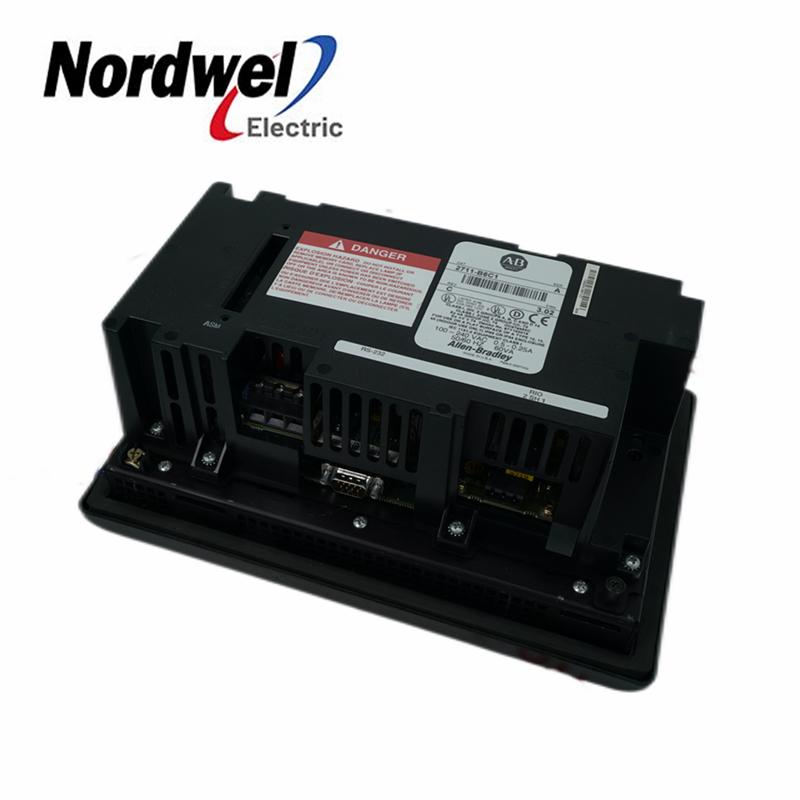

|2711-B6C1 | PANELVIEW 600 COLOR TERMINAL


  • Part Number:

    2711-B6C1
  • Weight:

    2.72kg
  • Dimensions:

    27.9x20.3x12.7cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    2711-B6C1 PanelView 600 Color Key/Touch/RIO/RS232-Printer, AC

Technical Specifications:

Backlight                                     50,000 hr 1/2 life at 25 °C (77 °F)

Input Type                                   Keypad / Touch

Product Family:                           PanelView Standard Terminals

Product Type:                              Operator Terminals

Display Type:                               Color active matrix TFT

Display Area:                              115 x 86 mm (4.54 x 3.4 in.).

Resolution:                                  320 x 234

Touchscreen:                              Touch cells: 128 Actuation: 1 million presses

Keypad function keys:                10 function keys (F1…F10)

Application memory:                   170 KB application runtime; 240 KB nonvolatile memory

 (application objects plus text and bitmaps)

Communication ports:                 Remote I/O (RIO); RS232 (printer)

Input Voltage range:                    85…264V AC, 47…63 Hz

Accessories:                                function key legend inserts; Anti-glare overlays; backlight replacements;

Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules;

Part Number/Catalog No.            2711-B6C1

Product Line                                Panelview 600

Display Size                                5 in.

Communication                           Remote I/O and RS-232 Printer

Input Power                                 85-264 VAC

Memory                                       240 KB

Communication Cable                 2711-NC13

Series                                          A, B, or C

Battery (Time Clock)                   2711-NB3 or 2711-NB4

Product Lifecycle Status*            Discontinued/Obsolete
