2711-T10G8

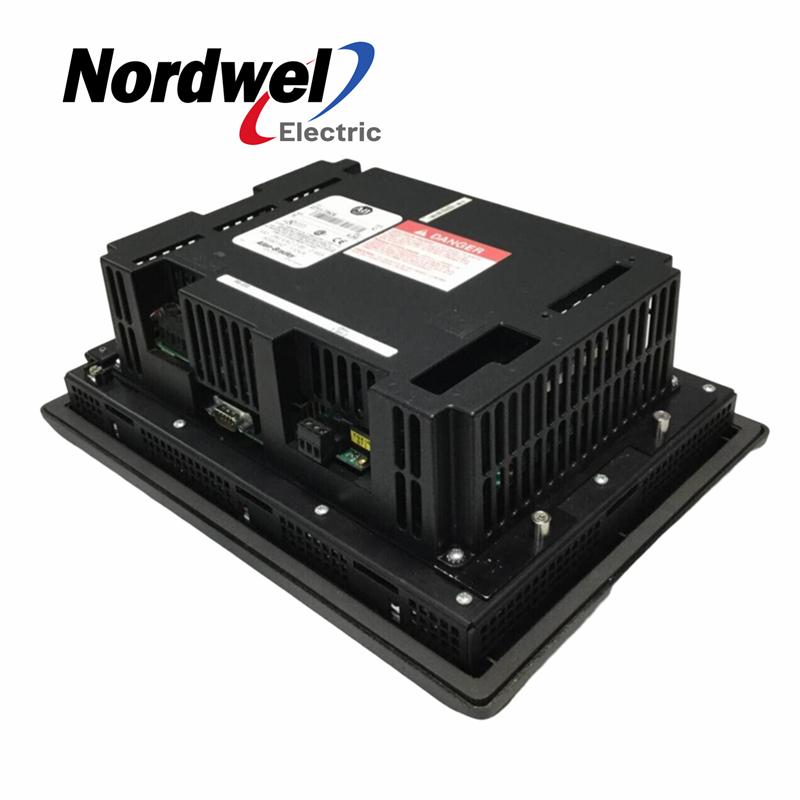

| 2711-T10G8 | PanelView 1000 Standard Operator Terminal


  • Part Number:

    2711-T10G8
  • Weight:

    3.78kg
  • Dimensions:

    37cmX28.3cmX11cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    2711-T10G8 operator interface terminal

Description: The 2711-T10G8 operator interface terminal has been designed and manufactured

as part of the Panelview 1000 series. Its operating voltage range is 85 to 264 Volts AC. The 2711-T10G8 operator

 interface terminal has a touchscreen for input and control. There are only grayscale graphics on this 10-inch

 touchscreen. The 2711-T10G8 operator interface terminal comes with a DH+ communication port and with an RS-

232 printer port.



Technical Specifications for 2711-T10G8

Product Family: PanelView Standard Terminals

Product Type: PanelView 1000 Standard Operator Terminals

Display Type: Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight

(4 shades of gray)

Display Area: 211 x 158 mm (8.3 x 6.2 in.)

Resolution: 640 x 480 pixels

Backlight: 100,000 hr LED backlight life
