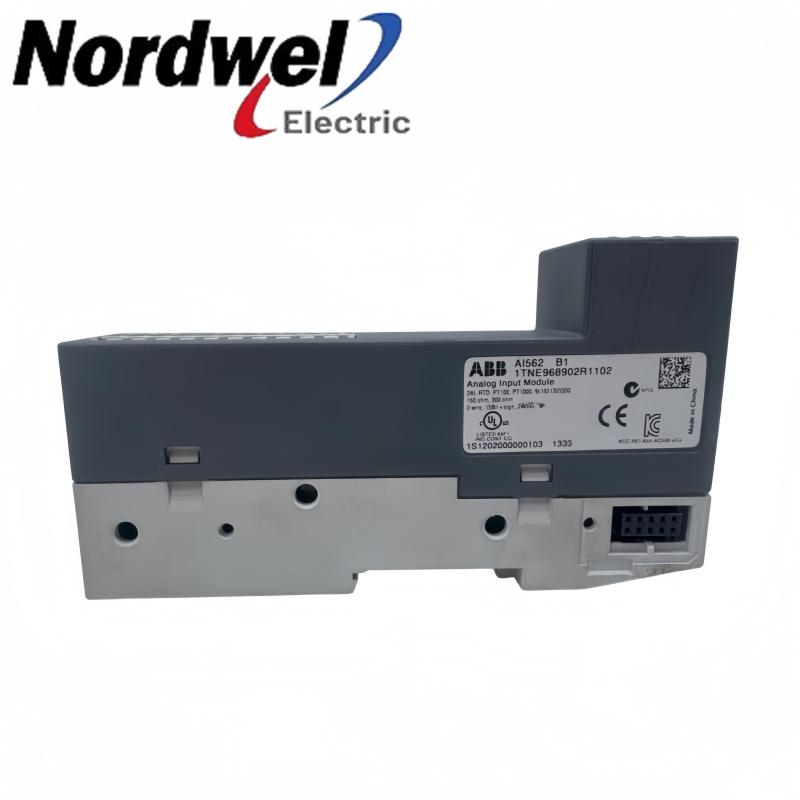

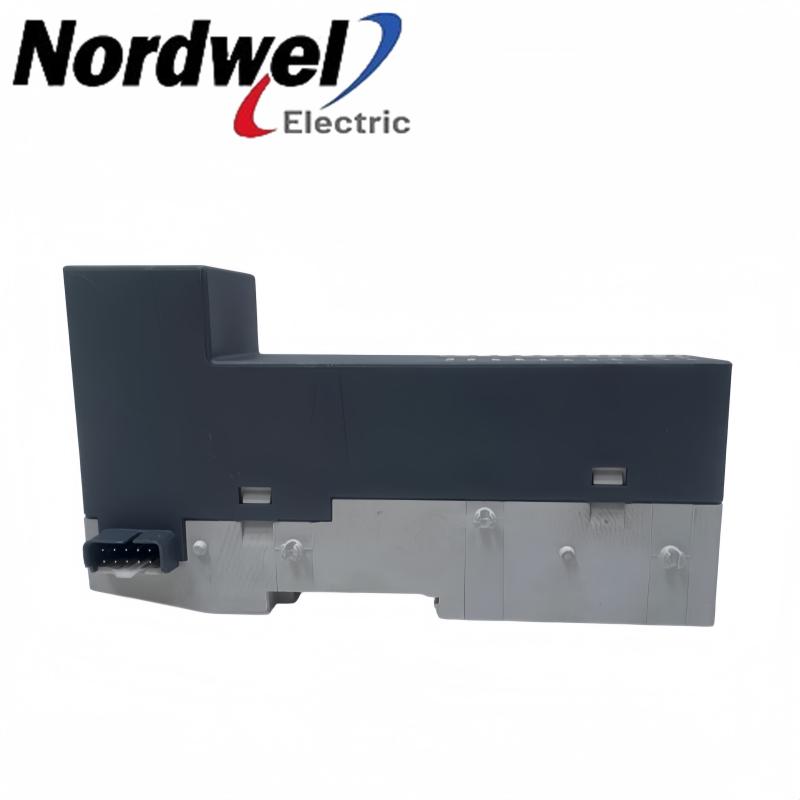

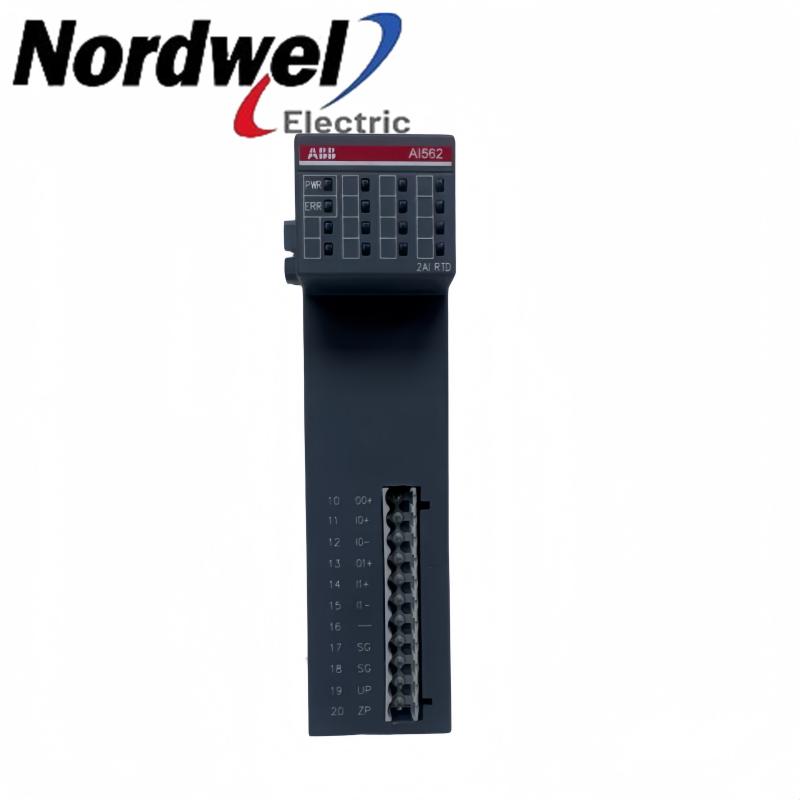

AI562 is a two-channel RTD analog input module for Pt100, Pt1000, Ni100, Ni1000 and specified resistance measurement, with 15 bits plus sign. Confirm AI562 order 1TNE968902R1102, RTD type, wiring method and the separately ordered 11-pole terminal block.
Brand:
ABBItem NO.:
AI562Goods Stock:
1Part Number:
AI562Description:
AI562 Analog Input Module for AC500-eCo / S500-eCoABB identifies AI562 as an Analog Input Module in the AC500-eCo / S500-eCo family. AI562 is a two-channel RTD analog input module for Pt100, Pt1000, Ni100, Ni1000 and specified resistance measurement, with 15 bits plus sign.
| Product family | AC500-eCo / S500-eCo |
|---|---|
| Module type | Analog input |
| Input channels | 2 AI |
| Supported sensors | Pt100, Pt1000, Ni100, Ni1000 |
| Resistance ranges | 150 Ω; 300 Ω |
| Resolution | 15 bits + sign |
| Terminal block | 11-pole, ordered separately |
| Order code | 1TNE968902R1102 |
| Weight | 0.12 kg |
Source: ABB AI562 data sheet 3ADR010032 and S500-eCo ordering data.
Verify the terminal hardware, signal configuration and field wiring before the module is installed or energized.
Match the input module to the installed sensors, terminal hardware and configured channel map.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.
Tiffany-verified targetMatch model AI562, ABB order code 1TNE968902R1102, the hardware index and the installed terminal hardware. A family name or a visually similar module is not an exact replacement basis.
AI562 supports Pt100, Pt1000, Ni100, Ni1000 and specified resistance inputs. Configure and wire each channel only for a mode listed for this exact module.
ABB documents 15 bits plus sign for AI562. The project scaling, sensor accuracy and wiring errors remain separate contributors to total measurement uncertainty.
The documented connection basis is RTD connection using the required 11-pole terminal block. Confirm the terminal numbering, sensor leads, shields and process supply against the installed drawing before energizing.
No. Channel count alone does not prove compatibility. Signal types, resolution, wiring method, terminal hardware, device index and project configuration must all match.
Use the ABB-documented 11-pole terminal block required. Include the terminal-unit or terminal-block identifier in the quotation request because connection hardware is not interchangeable by appearance.
Check module status, channel diagnostics, open-circuit or range indications where applicable, engineering-unit scaling and a known input value on every used channel.
No. Standard and XC variants are distinct ordering items. Confirm the full suffix and environmental class from the nameplate before approving use outside standard conditions.
Isolate the relevant supply and field circuits, verify safe state, preserve channel labels and shields, then perform controlled diagnostic and functional checks after installation.
Send AI562, order code 1TNE968902R1102, quantity, destination, clear nameplate photos, terminal-hardware code, sensor types and the required channel configuration.
