AO561 provides two independently configurable analog outputs for voltage and current signals, including -10 to +10 V, 0 to 20 mA and 4 to 20 mA ranges. Confirm AO561 order 1TNE968902R1201, selected voltage or current mode, load, wiring and the separately ordered 11-pole terminal block.
Brand:
ABBItem NO.:
AO561Goods Stock:
1Part Number:
AO561Description:

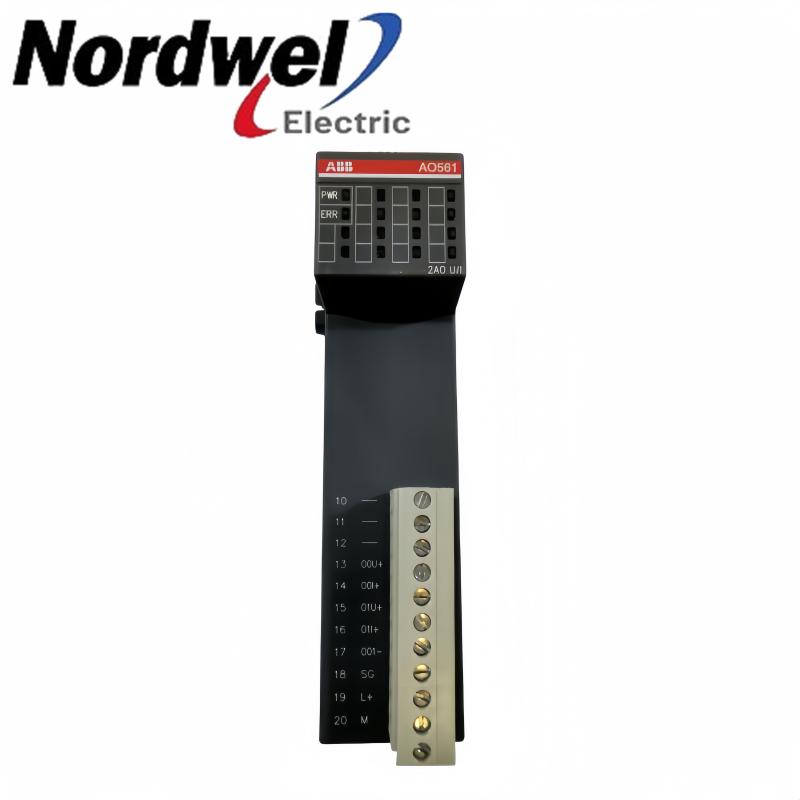

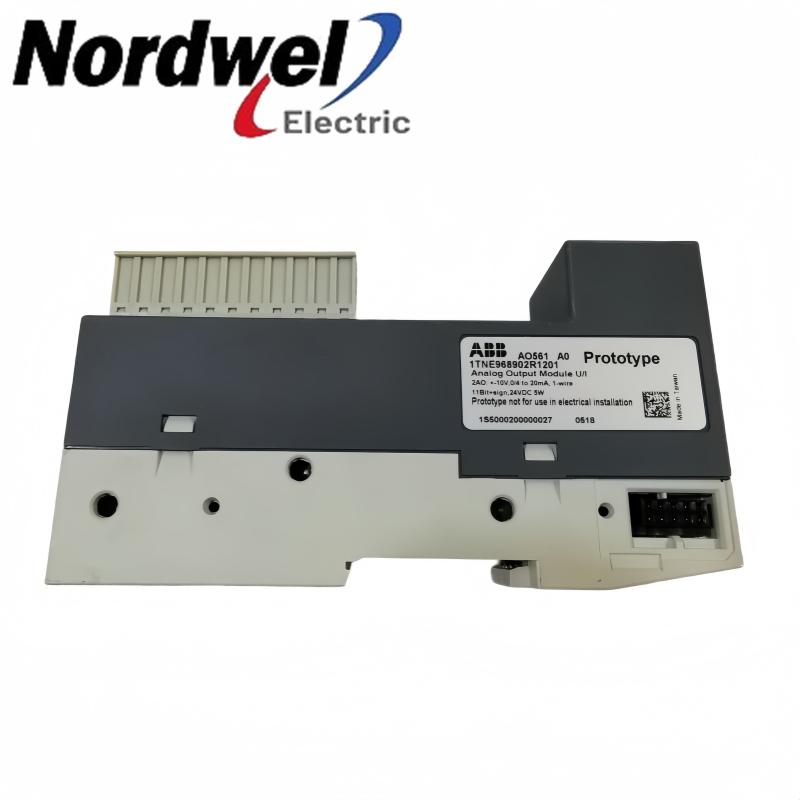

AO561 Analog Output Module for AC500-eCo / S500-eCoABB identifies AO561 as an Analog Output Module in the AC500-eCo / S500-eCo family. AO561 provides two independently configurable analog outputs for voltage and current signals, including -10 to +10 V, 0 to 20 mA and 4 to 20 mA ranges.
| Product family | AC500-eCo / S500-eCo |
|---|---|
| Module type | Analog output |
| Output channels | 2 AO |
| Voltage range | −10…+10 V |
| Current ranges | 0…20 mA; 4…20 mA |
| Resolution | 12 bits / 11 bits + sign |
| Terminal block | 11-pole, ordered separately |
| Order code | 1TNE968902R1201 |
| Weight | 0.12 kg |
Source: ABB AO561 data sheet 3ADR010035 and S500-eCo ordering data.
Verify the terminal hardware, output modes and connected loads before the module is installed or energized.
Match the output module to the required signal ranges, loads and terminal hardware.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.

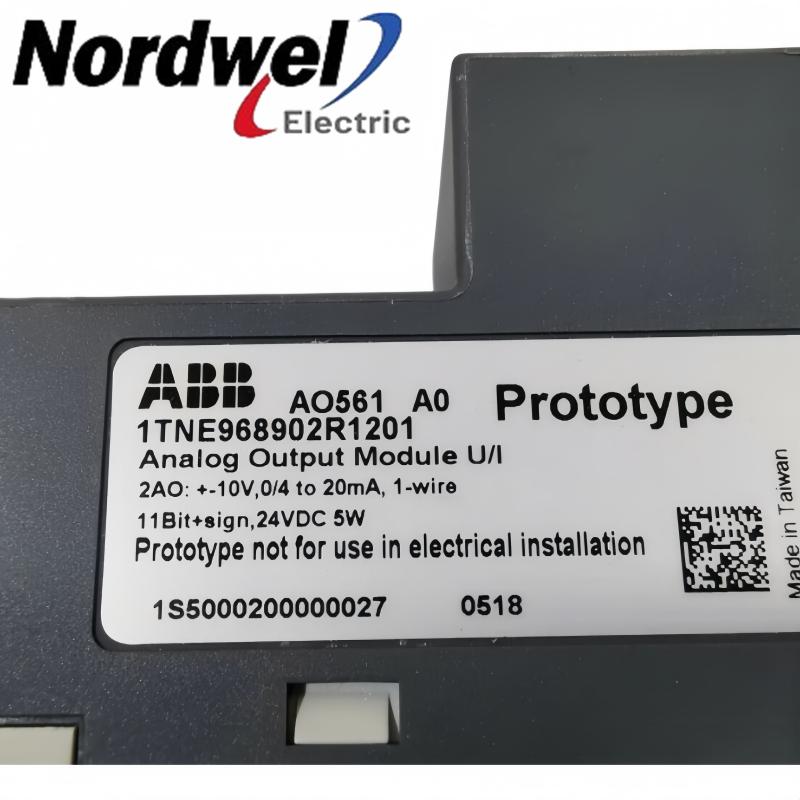

Tiffany-verified targetVerify model AO561, order code 1TNE968902R1201, hardware index and the 11-pole connection hardware. Do not select from the AO561 family name alone.
AO561 provides -10 to +10 V, 0 to 20 mA and 4 to 20 mA outputs. Set voltage or current mode in the project before connecting the field load.
Yes, each channel is configurable, but its selected mode, load, return wiring and process supply must be checked individually in the approved project.
ABB lists 12 bits / 11 bits plus sign. Final loop performance also depends on configured range, receiving-device input and field wiring.
No assumption should be made. ABB lists the required 11-pole terminal block separately, so confirm its exact style and availability with the module.
Identify whether the destination is a voltage or current input and verify its permitted load against the selected AO561 range before energizing.
Verify zero and commanded output values, channel diagnostics, polarity, scaling and the response of each receiving device under controlled conditions.
Not without an engineering review. The environmental suffix affects qualification; keep the exact ABB ordering variant required by the cabinet conditions.
Record the nameplate, order code, hardware index, terminal-block type, configured ranges, wiring checks and measured functional-test results.
Provide AO561, 1TNE968902R1201, quantity, destination, output ranges, load details, terminal-block requirement and clear photos of the replaced assembly.
