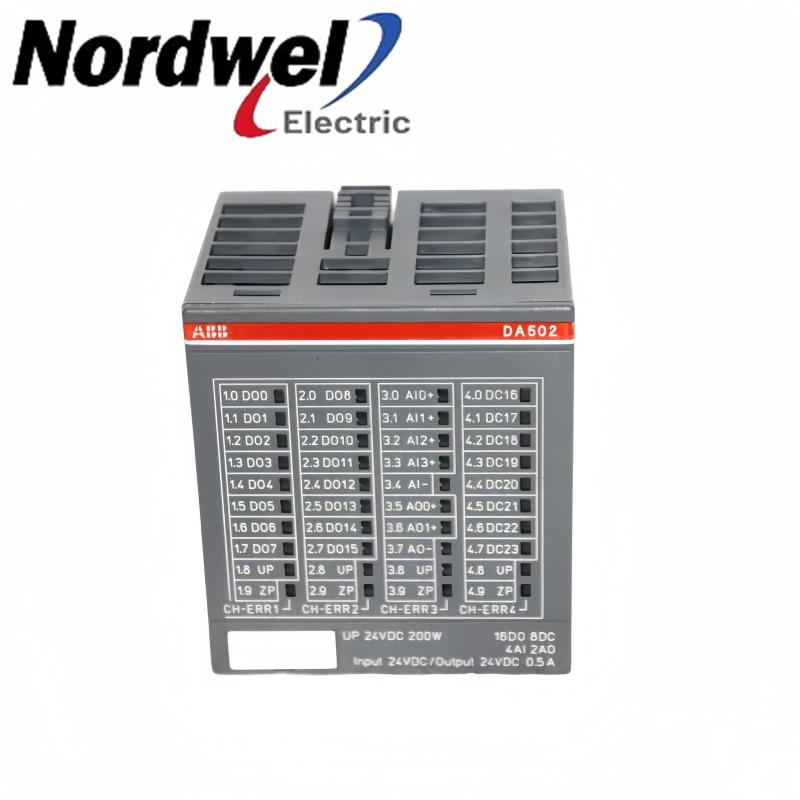

DA502 combines 16 digital outputs, eight configurable digital channels, four analog inputs and two analog outputs in one S500 module. Confirm DA502 order 1SAP250800R0001, every channel assignment, field supply, terminal unit and hardware index before replacement.
Brand:
ABBItem NO.:
DA502Goods Stock:
1Part Number:
DA502Description:
DA502 Digital/Analog I/O Module for AC500 / S500ABB identifies DA502 as a Digital/Analog I/O Module in the AC500 / S500 family. DA502 combines 16 digital outputs, eight configurable digital channels, four analog inputs and two analog outputs in one S500 module.
| Product family | AC500 / S500 |
|---|---|
| Module type | Digital/analog I/O |
| Digital outputs | 16 |
| Configurable digital channels | 8 |
| Analog inputs | 4 |
| Analog outputs | 2 |
| Terminal unit | TU515 or TU516 |

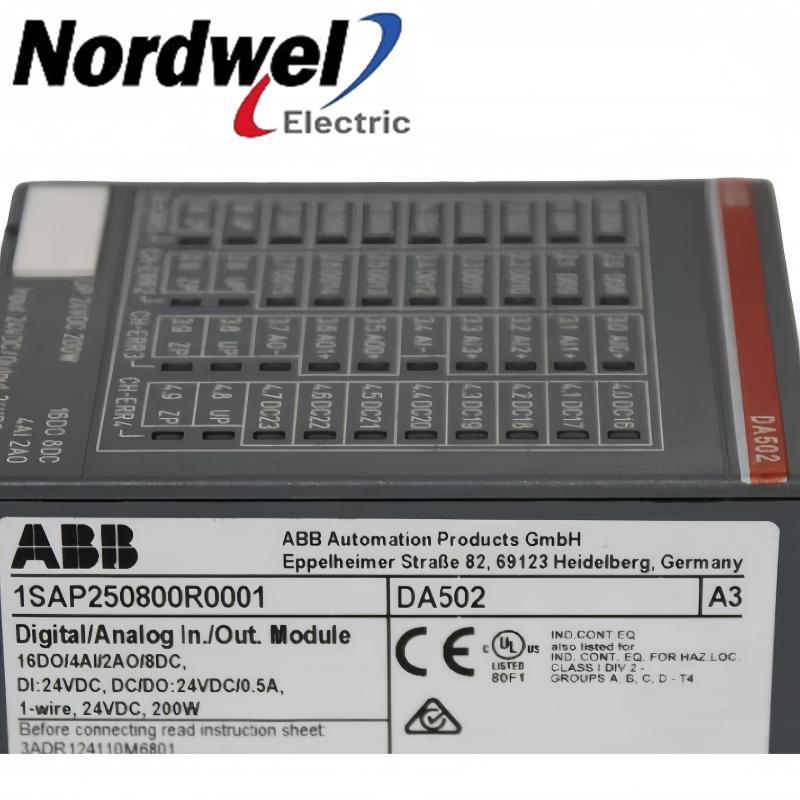

| Order code | 1SAP250800R0001 |
Source: ABB DA502 data sheet 3ADR010040 and AC500 hardware manual.
Verify terminal hardware, digital channel directions and analog signal modes before replacing the mixed-I/O module.
Match every digital and analog channel function to the installed wiring and project.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.
Tiffany-verified targetMatch model DA502, order 1SAP250800R0001, device index, terminal unit and the installed channel configuration. The mixed-I/O layout makes a shortened reference unsafe for selection.
ABB specifies 16 DO, 8 configurable DI/DO, 4 AI and 2 AO. Document each used point and whether every configurable channel is assigned as an input or output.
Their direction is project-defined. Verify the approved configuration and field wiring before replacing or energizing the module.

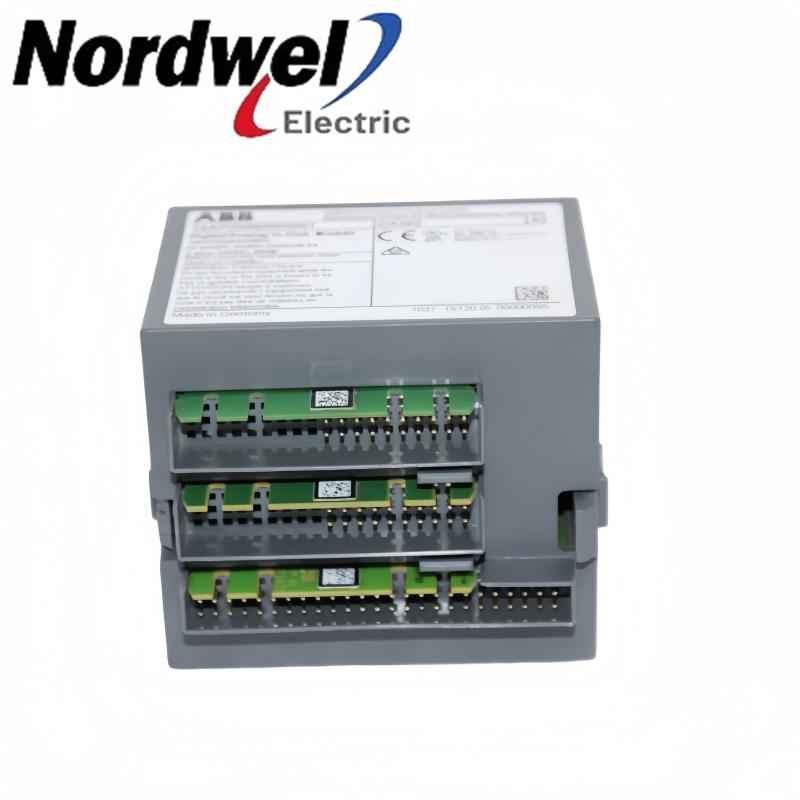

DA502 uses TU515 screw or TU516 spring terminal unit. Confirm screw or spring termination and the existing terminal-unit code as part of the order.
Confirm the 24 V DC process supply, commoning, protection and aggregate output load for the installed channel assignment.
Only after project engineering. The I/O map, signal ranges, output loads, terminal allocation and scan behavior must match the approved system design.
Check digital input states, digital output loads, analog scaling, configurable-channel direction, diagnostics and a controlled end-to-end response for every used point.
No. Standard and XC items are different products; verify the exact suffix required by temperature, humidity, corrosion and vibration conditions.
Retain the full order code, hardware index, terminal-unit identifier, project backup, point list and functional-test record.
Send model DA502, order 1SAP250800R0001, quantity, destination, nameplate photos, terminal unit and a summary of the 16 DO, 8 DC, 4 AI and 2 AO usage.
