Brand:
Bently NevadaItem NO.:
330103-00-16-50-12-0Part Number:
330103-00-16-50-12-05Weight:
0.1kgDimensions:
1.8x1.5x112cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

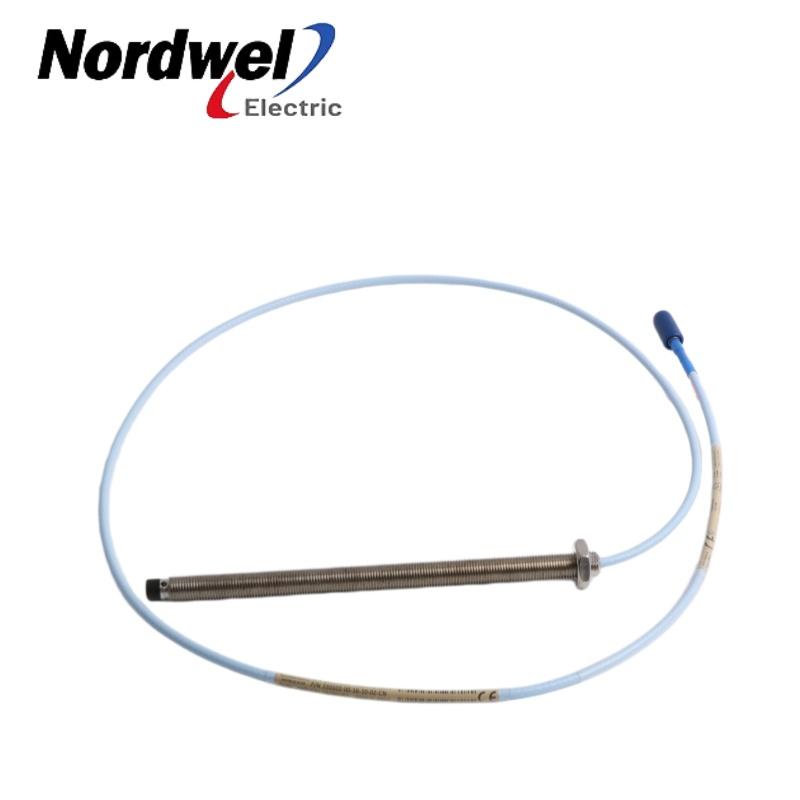

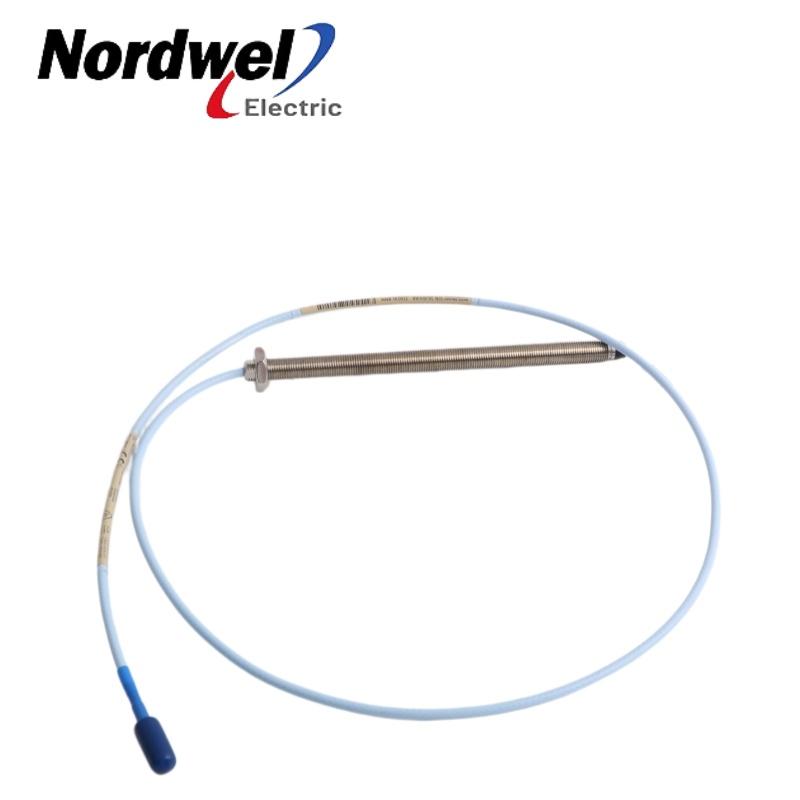

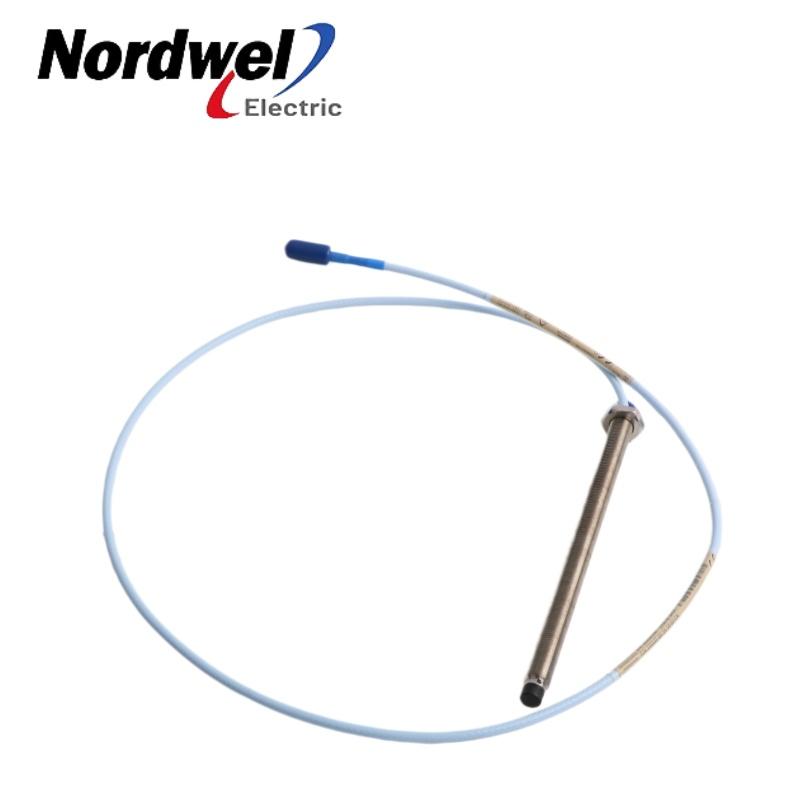

3300 XL 8 mm Proximity Probes
Product Information
Model number
330103-00-16-50-12-05
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.8x1.5x112cm
Weight
0.2kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Construction, Interfaces, and Safety Features
Construction: This metric M10×1 threaded probe is built without armor, featuring a 0 mm unthreaded length and a 160 mm overall case. The PPS probe tip is secured via TipLoc® molded construction. The 75Ω FEP-insulated triaxial cable integrates CableLoc® technology rated at 330 N (75 lbf) pull strength. Weight is approximately 0.32 kg.
Interfaces: Equipped with a miniature coaxial ClickLoc® connector and FluidLoc® cable. The FluidLoc cable provides resistance to fluid migration along the cable core. The gold-plated ClickLoc connector ensures secure, tool-free connections that resist loosening from machine vibration. The 5.0-meter total cable length allows flexible Proximitor® Sensor placement.
Safety Features: Carries CSA, ATEX, and IECEx certifications for hazardous areas. Viton® O-ring provides differential pressure sealing. API 670 compliant. The 8 mm probe body offers thicker coil encapsulation in PPS for enhanced ruggedness, with the larger diameter providing stronger mechanical robustness against physical abuse.
|
