Brand:
Bently NevadaItem NO.:
330103-00-22-50-12-0Part Number:
330103-00-22-50-12-05Weight:
0.05kgDimensions:
1.7x1.5x65.5cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

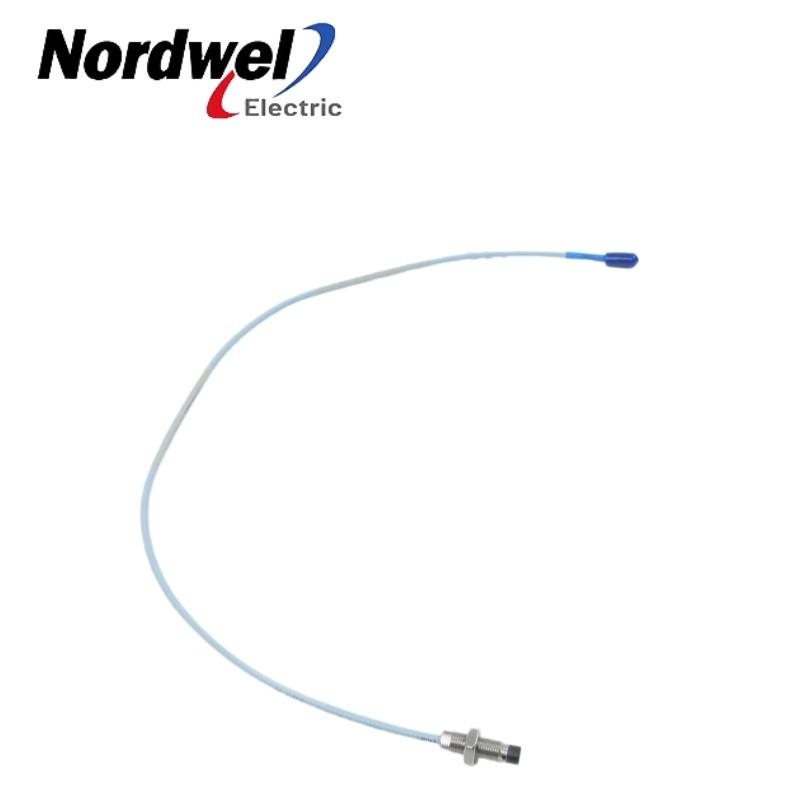

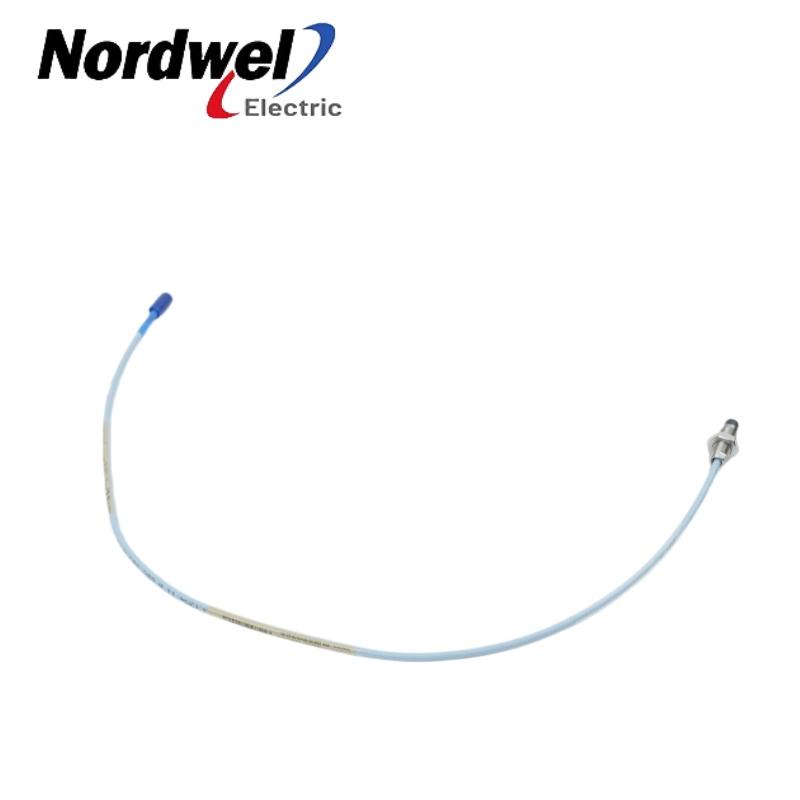

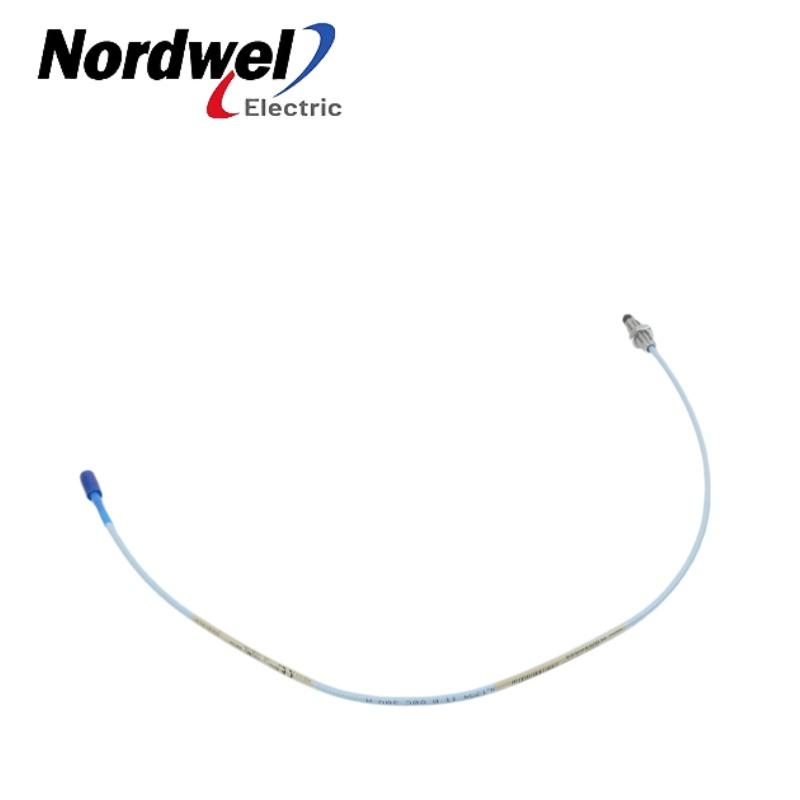

3300 XL 8 mm Proximity Probes
Product Information
Model number
330103-00-22-50-12-05
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.7x1.5x65.5cm
Weight
0.05kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Construction, Interfaces, and Safety Features
Construction: This unarmored M10×1 metric probe offers a 0 mm unthreaded section with a 220 mm extended case length — the longest among the 330103 variants. PPS probe tip with TipLoc® molding provides durable tip-to-body bonding. The 75Ω FEP-insulated triaxial cable features CableLoc® technology rated at 330 N (75 lbf) pull strength. The 8 mm diameter body provides thicker PPS encapsulation of the sensing coil compared to smaller form factors.
Interfaces: Miniature coaxial ClickLoc® connector with FluidLoc® cable. The FluidLoc cable prevents oil and liquid leakage through the cable interior. Gold-plated ClickLoc connectors provide corrosion resistance and finger-tight locking with audible "click" confirmation. The 5.0-meter total cable length accommodates remote sensor mounting configurations.
Safety Features: CSA, ATEX, and IECEx approved for hazardous area installations. Viton® O-ring seals differential pressure between probe tip and case. API 670 Standard compliance ensures mechanical configuration and thermal stability. Extended case length design suitable for deep mounting bore applications while maintaining full safety certifications.
|
